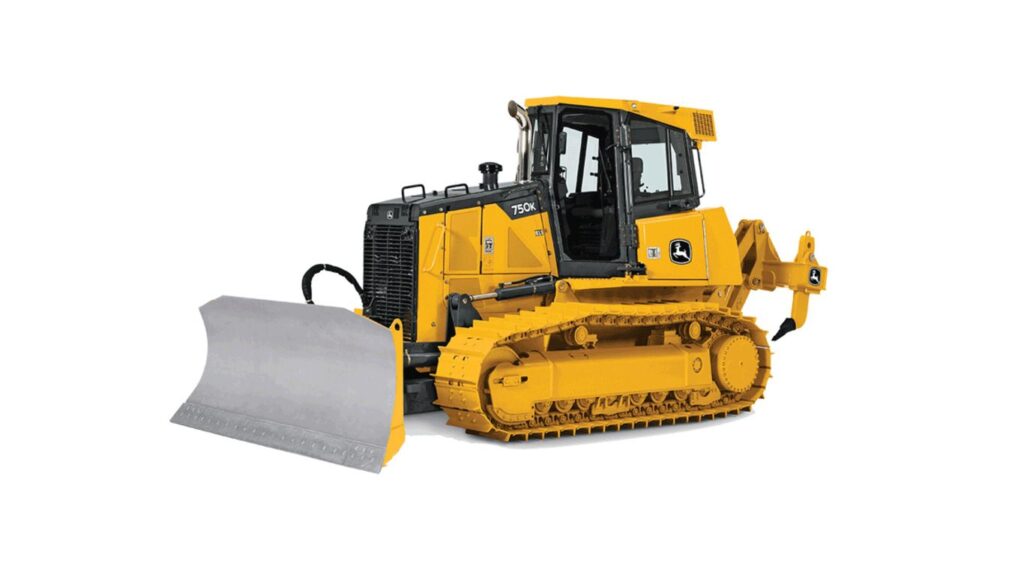

750K Crawler Dozer

  • John Deere
  • Crawler Dozers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Net Power: 123 kW (165 hp) @ 1,800 rpm
  • Operating Weight: 15 679 kg (34 566 lb)
  • Track on Ground: 2591–3073 mm (102–121 in.)
  • Engine Net Power 123 kW (165 hp) at 1,800 rpm
  • Operating Weight 15,661–17,121 kg (34,527–37,745 lb.)
  • Track on Ground 2591–3073 mm (102–121 in.)
  • Blade Width Range 3251 mm (128 in.)
  • + Expand All
  • - Close All
  • Engine

    Engine employs field-proven cooled exhaust gas recirculation (EGR), easy-to-maintain high-uptime exhaust filters, and selective catalytic reduction (SCR).

    Standard Eco mode automatically adjusts engine power and transmission settings for fuel optimization.

  • Fully Integrated Grade Control

    Grade-control system is fully integrated into the machine cabin, structures, and software – delivering precise grading performance while eliminating vulnerable external masts and cables.

    Auto SmartGrade automatically raises the blade when heavier loads are encountered during rough grading to prevent stalling and track slip, enabling the machine to be used in all phases of grading.

    Machine dimensions are preloaded into the grade-control monitor, reducing the time needed to calibrate to about 30 minutes.

  • Cab & Controls

    Cab-forward design provides excellent visibility to the blade.

    Enhance your operator's grading skills with ergonomic T-bar hydraulic control.

    Exclusive Total Machine Control monitor allows operator to customize machine operation and response to personal preferences.

  • Simple Maintenance

    Hinged engine side shields swing open wide and the front grille tilts forward for convenient access to dipsticks, fill tubes, batteries, master electrical shutoff, the backside of the cooler, and engine, transmission, and hydraulic filters.

    Inertial Measurement Units (IMUs) are not located in the cylinders for easy access should service be necessary.

  • Hydrostatic Transmission

    Infinitely variable range to 8.9 km/h (5.5 mph) gives total flexibility to match ground speed to the load.

    Speeds up or slows down each track to provide full-power turns.

    Counterrotation an operator to overcome heavy corner loads and quickly reposition the blade on the go. Provides space-saving spot turns, too.

  • Undercarriage

    Maximum Life undercarriage features SC-2™-coated bushings, larger components and stronger seals for longer wear life compared to basic undercarriage.

CAPACITIES

Fuel Tank, ltr (gallons (US)) 368 (97.5)
Hydraulic Tank, ltr (gallons (US)) 112 (29.7)
Blade - Capacity, m³ (yd³) 4.3 (5.6)
