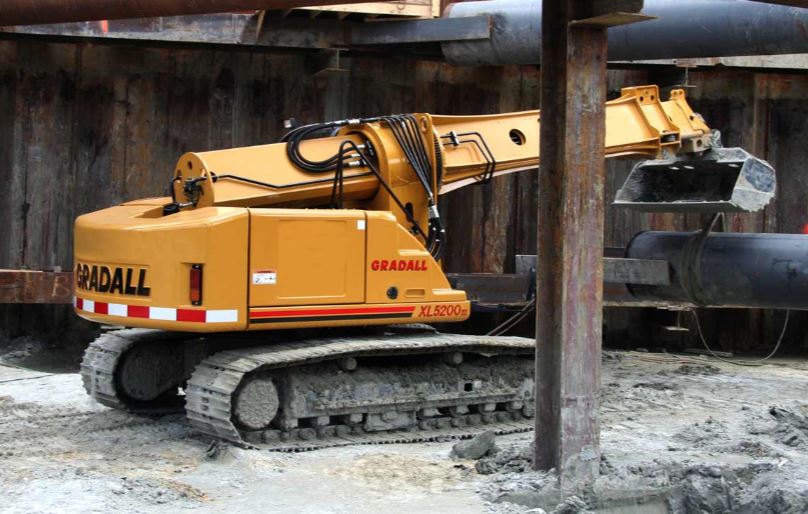

Gradall XL 5200 V

XL 5200 V

Gradall
Crawler Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Dual range high torque piston motor powers each track.
Low profile for work under bridges, trees and in tunnels
Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
High performance, high reliability 24-volt electrical system
Stable digging platform for work in any direction, without need to stop and lower outriggers

Specifications
Documents

Engine Standard: Volvo TAD571 VE Tier 4f 5.1L
Max Digging Depth: 25' 4" (7.7 m)
Max. Lift Capacity: 13,764 lb (6,243 kg)
Max. Radius at Groundline: 33' 11" (10.3 m)
Operating Weight: 54,452 lb (24,699 kg)
HP @ RPM: 173/2,200
Ground Clearance: 18" (454 mm)
Max. Loading Height: 17' 11" (5.5 m)
Swing Clearance: 8' 6" (2.6 m)
