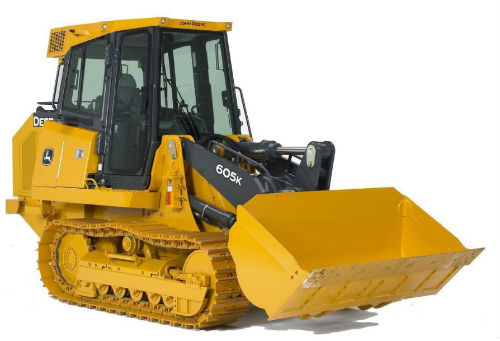

JOHN DEERE 605K Crawler Loader
Construction
- Net Power 110 hp (83 kW) @ 2,200 rpm
- Operating Weight 26,940 lb. (12 220 kg)
- Heaped Capacity 1.7 cu. yd. (1.3 m³)
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech PWX 4045 |
| DRIVELINE - Emission Rating | Interim Tier 4 |
| DRIVELINE - Displacement, ltr (Inches�) | 4.5 (276) |
| DRIVELINE - Rated Speed, rpm | 2200 |
| DRIVELINE - Engine Output - Net, kW (hp) | 83 (110) |
| DRIVELINE - Transmission type | Hydrostatic |
| DRIVELINE - Final drive type | In-line Drive Motor - Planetary w/Double Reduction |
| DRIVELINE - Track rollers per side - std | 6 |
| DRIVELINE - Track shoe pitch, mm (inches) | 171.45 (6.75) |
| DRIVELINE - Track shoe width, mm (inches) | 510 (20) |
| DRIVELINE - Ground Contact Area, cm� (Inches�) | 21986 (3408) |
| DRIVELINE - Track shoes per side - std | 38 |
| DIMENSIONS - Overall length, mm (ft/in) | 6140 (20 ft 2 in) |
| DIMENSIONS - Max. height, mm (ft/in) | 2985 (9 ft 10 in) |
| DIMENSIONS - Track length on ground, mm (inches) | 2164 (85) |
| DIMENSIONS - Ground clearance, mm (inches) | 320 (12.6) |
| DIMENSIONS - Track gauge - standard, mm (ft/in) | 1600 (5 ft 2 in) |
| DIMENSIONS - Shovel 1 width, mm (ft/in) | 2290 (7 ft 6 in) |
| DIMENSIONS - Shovel 1 dump height 45� max, mm (ft/in) | 2640 (8 ft 8 in) |
| DIMENSIONS - Bucket pin height, mm (ft/in) | 3450 (11 ft 4 in) |
| DIMENSIONS - Bucket reach - max, mm (ft/in) | 1135 (3 ft 9 in) |
| DIMENSIONS - Digging depth, mm (inches) | 130 (5.1) |
| DIMENSIONS - Steering clutches and brakes | Yes - Hydrostatic |
| CAPACITIES - Fuel tank capacity, ltr (gallons (US)) | 178 (47) |
| CAPACITIES - Implement hydraulic tank, ltr (gallons (US)) | 83 (22) |
| CAPACITIES - Shovel 1 capacity, m� (yd�) | 1.3 (1.7) |
| PERFORMANCE - Ground bearing pressure - standard, kPa (PSI) | 54.5 (7.9) |
| PERFORMANCE - Static tipping load shovel 1, kg (lbs) | 8858 (19529) |
| PERFORMANCE - Breakout force - max, kN (lbf) | 107 (24054) |
| PERFORMANCE - Voltage, V | 24 |
| PERFORMANCE - Alternator output, Amp | 100 |
| PERFORMANCE - Pump type | Piston Pump - Load Sensed |
| PERFORMANCE - Pump flow, lt/min (gallons (US) / min) | 135 (36) |
| PERFORMANCE - Relief pressure, kPa (PSI) | 22063 (3200) |
| WEIGHTS - Operating weight std, kg (lbs) | 12220 (26940) |
Featured List
- Net Power: 110 hp (83 kW)
- Heaped Capacity: 1.7 cu. yd. (1.3 m³)
- Breakout Force: 24,054 lbf (107kN)
- Dump Height: 2,640 mm (8 ft. 8in.)
- Engine Net Power: 110 hp (83 kW) @ 2,200 rpm
- Operating Weight: 26,940 lb. (12 220 kg)
- Track on Ground: -
- Blade Width Range: -
Featured Content
Our IT4/EU Stage IIIB engines employ cooled exhaust gas recirculation (EGR) for reducing NOX, and a diesel particulate filter and diesel oxidation catalyst to reduce particulate matter.
Quad-Cool design isolates coolers from engine heat for increased efficiency and durability, and keeps them well protected behind the heavy-duty grille and fan.
Hydraulic-driven variable-speed fan runs only as needed, reducing noise and fuel consumption.
Separate, sealed hydraulic and hydrostatic systems with common fluid and filter codes eliminate cross contamination.
In-cylinder sensors enable return-to-dig, boom-height kickout, and bucket leveling. Setting them is push-button easy from the seat. These standard features, plus boom float, help speed cycles in repetitive applications such as truck loading.
Counter-rotating tracks and variable speed control increases productivity.
Choose joystick, multiple-lever hydraulic controls, or V-pattern transmission lever.
Large service doors open wide, and same-side daily checkpoints are conveniently grouped for ground-level access.
Operator station tilts a full 53 degrees in minutes, for wide-open component access.
Total Machine Control (TMC) allows you to customize operating characteristics and response, for superb, one-of-a-kind control. TMC can also be used to monitor machine readings such as mileage and hours.
Heavy-duty sealed and lubed undercarriage is standard, with extended-life and Maximum Life undercarriage systems optional.
