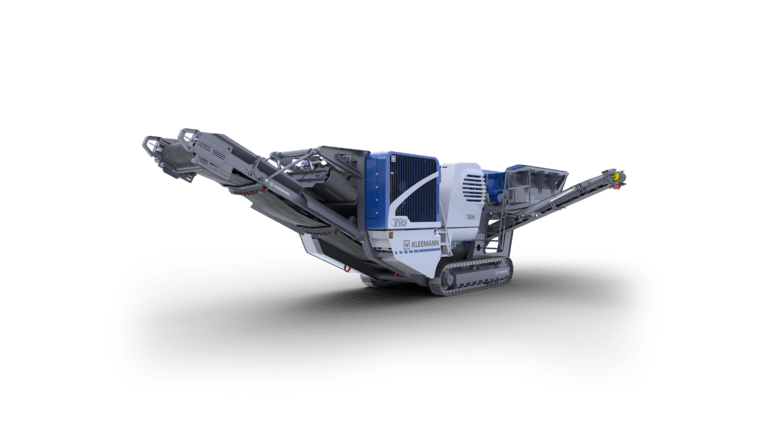

  • Jaw crusher

    Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

  • Effective prescreening - better results and less wear

    For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.

  • Continuous Feed System (CFS)

    Uniform loading is indispensable for a good product, optimum throughput and low wear.

    To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).

    Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.

    The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.

  • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values

    The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time.

    An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher.

    All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

CRUSHER

Crusher weight (approx.) 37,500 lbs
Gap width max. 7 in
Single toggle jaw crusher type STR110-070
Gap width min. 1.2 in
Crusher inlet (W x D) 1,100 mm x 700 mm
Crusher gap adjustment Hydraulically adjustable
Crusher drive type direct
Crusher capacity 215 hp
