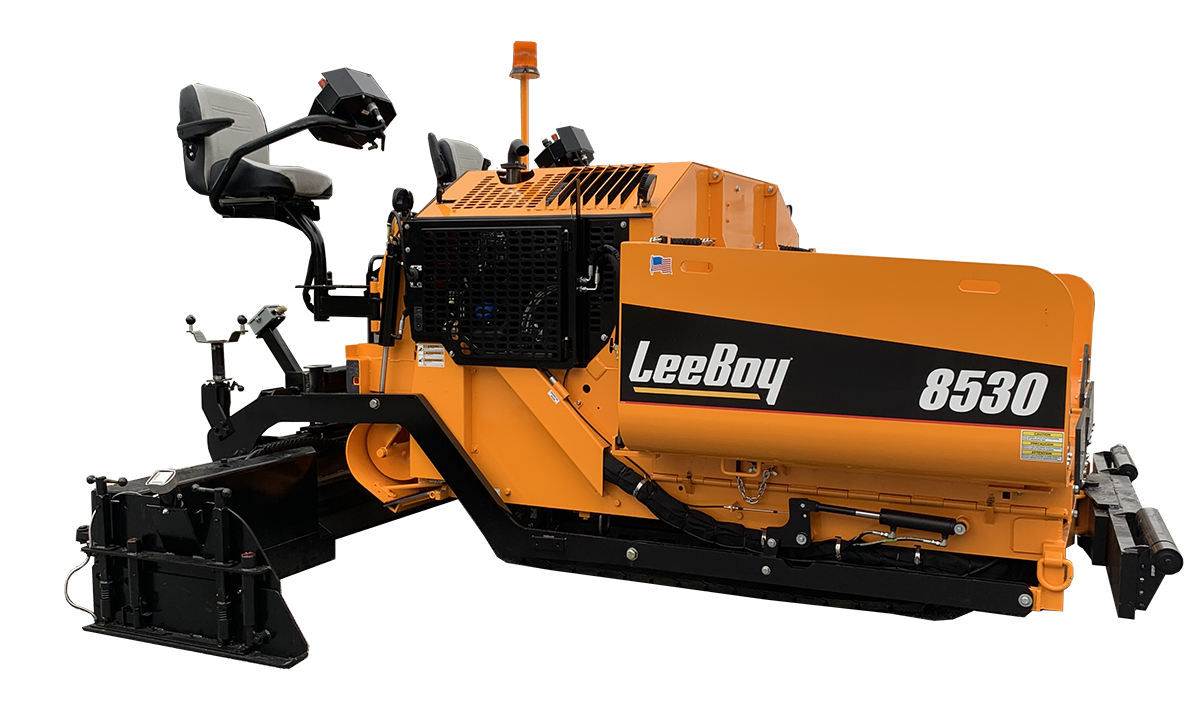

  • Hydraulic System
    • Variable volume hydraulic pumps for each drive
    • Independent constant volume pumps for augers, conveyors, cylinders, and charge
    • Hydraulic reservoir: 25 gallons (94.6 l)
    • Hydraulic oil: all weather, all temperature
    • Dual 77,000 BTU oil coolers
  • Washdown System
    • Electric HD pump with two hose reels with 15' X .3125" (4.572m x 8 mm) diameter hose
    • Citrus tank sight gauge
  • Push Rollers
    • Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
    • Vertically adjustable push rollers, 7” (.178 m) of height adjustment
    • Built in material scraper on each push roller
  • Operator’s Platform
    • Includes both right and left hand seats 6' 1" (1.85 m) above ground with a lockable cover for the instrument panel
    • Various pivoting and adjustable swing out seat positions
    • Two piece, grip strut, anti-slip walk board platform
    • Walk board extensions slide out, left and right
    • Walk boards fold up and lock for transport and working requirements
  • Screed
    • Legend HD PRO screed standard, weight: 4,150 lbs
    • Legend HD PRO full free floating 96” (2.44 m) main screed
    • Consist of a 18” (.457 m) deep main screed
    • Constructed of .375” (9.52 mm) HARDOX 450 bolt-on wear plates for easy placement
    • Wear plate has bullnose on front
    • Rear wear plate adjustment
    • Adjustable strike offs
  • Screed Vibration
    • Equipped with two electric vibrators producing 70lbs of force each
    • 4,100 rpm, each vibrator
  • Track Drive System
    • Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
    • Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button
    • Fail safe brakes
    • Track size: 14” wide x 87” long (.360 x 2.2 m) poly 7 rollers OR Rubber Track Option: 15.75” wide x 87” long (.400 x 2.2 m) rubber 7 rollers
    • Paving speed: 0 to 150’ per minute (1.7 mph, 2.7 kph)
    • Travel speed: 0 to 300’ per minute (3.4 mph, 5.4 kph)
  • Operator’s Controls
    • High deck/low deck configuration
    • Includes dual electronic steer
    • Dual, independent adjustable control stations interchangeable in the field
    • Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
    • User-friendly, icon-based CAN Bus controls
    • Backlit keypad with LED indicator lights
    • Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
  • Optional Equipment
    • Screed extension vibration
    • Rubber track, continuous
    • Heated endgates
    • Slope meter
    • 3:1 flight screw adjusters
    • Truck hitch
    • Truck hitch valving, excludes truck hitch
    • Power crown
    • Hydraulically extendable oscillating push rollers
    • Wiring only, grade controls (TopCon)
    • Sonic grade control, one side (TopCon P-32 system)
    • Dual grade control (TopCon P-32 system)
    • Dual grade and slope (TopCon P-32 system)
  • Engine
    • Kubota turbocharged diesel
    • Tier 4 Final - 125 HP (93.2 kW)
    • Remote mounted DOC + DPF + SCR
    • MURR I/O distributor blocks with LED lighting
  • Paving Depths
    • Electronically operated tow point cylinders
    • Includes manual flights screws positioned on the screed
    • Depth: 0 to 8” (203 mm)
  • Capacities
    • Fuel: 32 gallons (121 l)
    • Hydraulic: 25 gallons (94.6 l)
    • Washdown tank: 7 gallons (26.5 l)
    • DEF tank: 5 gallons (18.9 l)
  • Additional Standard Equipment
    • Gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics)
    • Actuator-driven hood lift
    • Ground-level service access doors
    • Integrated dual tool boxes on screed
    • Back-up alarm
    • Quick-folding safety beacon
    • Sliding LED work lights
    • Vandalism protection covers
    • Horn
    • 2 seats
    • USB port
    • Magnetic cup holders
  • Screed Heat
    • Legend HD PRO Screed, electric heat
    • 14.4 kw generator
    • Electric timer and automatic temperature control (ATC)
    • Automatic RPM control system
    • Environmentally safe, sealed S-curve elements in main screed and sealed, blade-style elements in extensions
  • Under Auger Material Cutoff
    • Two independent hydraulically operated 4' ( 1.219 m) wide gates located under the augers and constructed of .375" (9.53 mm) A-36 plate steel
    • Can be configured to automatically close in reverse
    • Operational from the main control panel or screed controls
  • Screed Crown/Invert
    • Equipped with a crown/invert adjustment allowing at least 2.5" (0.063 m) of crown and 1.5" (0.038 m) of valley
    • Includes a levelling indicator for the operator to know when the screed is level
  • Conveyor
    • Two independent, hydraulically driven conveyors with automatic shut-off
    • Dual 36” (0.914 m) feeding conveyors
    • Conveyors are reversible
    • Front heavy-duty conveyor chain adjustments, does not require lifting of conveyor floor
    • Quad bearings, front and rear conveyor
    • Conveyor is hydraulically raiseable to allow cleaning and service
    • System has manual override function and automatic functions are controlled by a paddle and limit switch
    • 3,000 hour Wide-Conveyor Floor Assembly Warranty
  • Material Augers
    • Two independent, hydraulically driven, segmented augers. Operated automatically or manually
    • Augers are reversible
    • Variable speed from 0-173 rpm
    • Quick change auger assemblies
    • Augers are 12” (.305 m) diameter, 12” (.305 m) pitch and are cast from .75” (19 mm) HRC 55-60
    • System has manual override function and automatic functions are controlled by sonic sensors (non-contracting)
    • Single point lube system
  • Steering
    • Dual electronic steering controls
    • Machine can be controlled from a high deck position or lowered to control at the screed
    • Electronically controlled pumps operate the forward/reverse motion from dual joysticks
  • Screed Extensions
    • Two 46” (1.16 m) x 9” (229 mm) hydraulically operated screed extensions
    • The heated extensions are adjustable and mounted flush with the main screed
    • Energy chain, each screed extension
    • Includes replaceable .375” (9.52 mm) by 9” (229 mm) AR 450 bottom wear plate
    • Walkway width: 12” (0.305 m)
    • Sloping screed extensions standard
    • Adjustable strike offs
  • Screed End Gates
    • Spring-loaded end gates
    • Equipped with vertical height adjustments and tilt with replaceable wear shoes
  • Hopper
    • Hopper size: 9 ton (8,164 kg)
    • Hopper height: 31.75” (0.806 m)
    • Hopper wings: Heavy-duty .5” (12.7 mm) with large radius corners
    • Rear hopper wing wipers
  • Training, Support and Company
    • Training and support manuals
    • Optional on-site operator training by Dealer
    • Two-year, unlimited hours warranty against any manufacturer defects
    • Extended warranty available
    • 50+ years manufacturing experience
    • ISO 9001 Certified
    • Manufactured in the USA
  • Paving Widths
    Variable paving widths up to 15’ 6" (4.72 m)
  • Dimensions
    • Length: 15’ (4.57 m)
    • Width: 8’ 6” (2.59 m) transport
      10’ (3.05 m) hopper wings down
    • Height: 6’ 8” (2.02 m) low deck
      7’ 9” (2.37 m) high deck
    • Total Weight (with screed): 22,520 lbs (10,215 kg)
