John Deere 370E

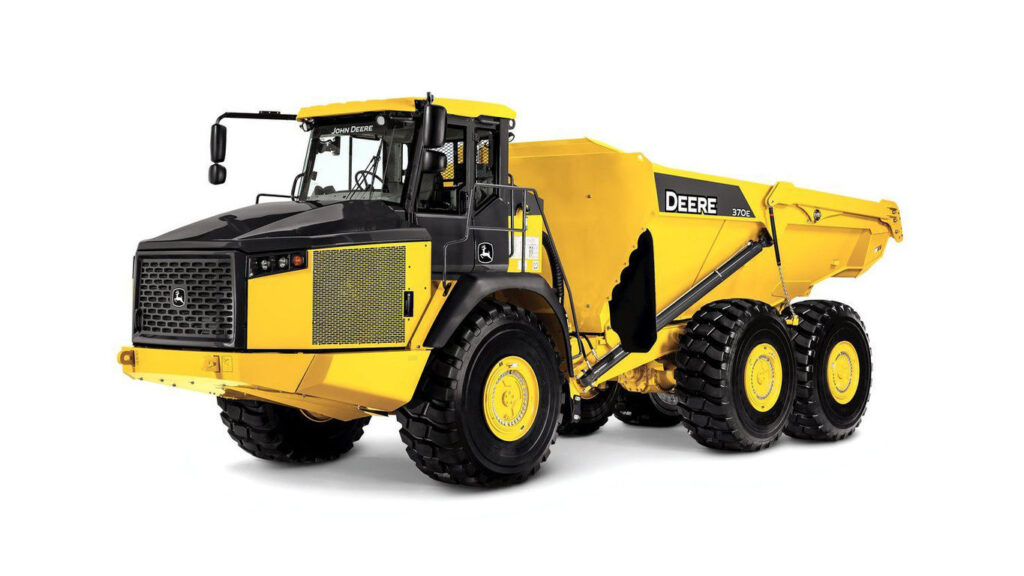

370E Articulated Dump Truck

John Deere
Articulated Dump Trucks

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Engine Power: 315 kW (422 hp) @ 1,900 rpm
Operating Weight: 30 782 kg (67,863 lb.)
Heaped Capacity: 20.5 m³ (26.8 cu. yd.)

Engine Power @ 1,900 rpm 315 kW (422 hp)
Rated Payload 33 629 kg (74,139 lb.)
Heaped Capacity 20.5 m³ (26.8 cu. yd.)

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	609 (160.9)
Struck Capacity, m� (yd�)	16.3 (21.3)
Heaped Capacity, m� (yd�)	20.5 (26.8)

DESCRIPTION

Air Conditioner	Yes
Steering wheel adjustment	Fully Adjustable
Telematics Available	Yes
Fleet Management	Yes

DIMENSIONS

Length - Overall, mm (ft/in)	10810 (35 ft 6 in)
Height - Max, mm (ft/in)	3810 (12 ft 6 in)
Width over Tires, mm (ft/in)	3440 (11 ft 3 in)
Hoist - Type	Twin, 1-Stage
Power Down	Yes
Approach Angle, �	24
Articulation Angle, � �	45
Turning Radius - Outside, mm (ft/in)	8900 (29 ft 2 in)
Turning Radius - Inside, mm (ft/in)	4630 (15 ft 2 in)
Turns lock to lock	4.2

DRIVELINE

Engine Manufacturer	John Deere
Engine Model	PowerTech 6135
Emission Rating	Tier 4
Displacement, ltr (Inches�)	13.5 (823.8)
Rated Speed, rpm	1900
Transmission Manufacturer	ZF
Final Drive	Planetary - Outboard
Transmission Type	Countershaft
Steering Type	Articulated
Secondary Steering Type	Ground Driven Pump
Differential Lock	F: 100 / R: 100
Tire size - Standard	26.5 R25
Front Suspension - Type	A-Frame
Front Suspension	Nitrogen/Oil-Filled Struts - Auto Levelling
Rear Suspension - Type	Pivoting Walking Beam
Rear Suspension	Rubber Suspension Blocks
Service Brake - Actuation	Hydraulic
Parking Brake - Type	Disc - Transmission
Retarder - Type	Hydraulic - Transmission

PERFORMANCE

Gears - Forward / Reverse

8F - 4R

WEIGHTS

Net Weight, kg (lbs)	30782 (67863)
Payload, kg (lbs)	33629 (74139)
Gross Weight, kg (lbs)	64411 (142002)
