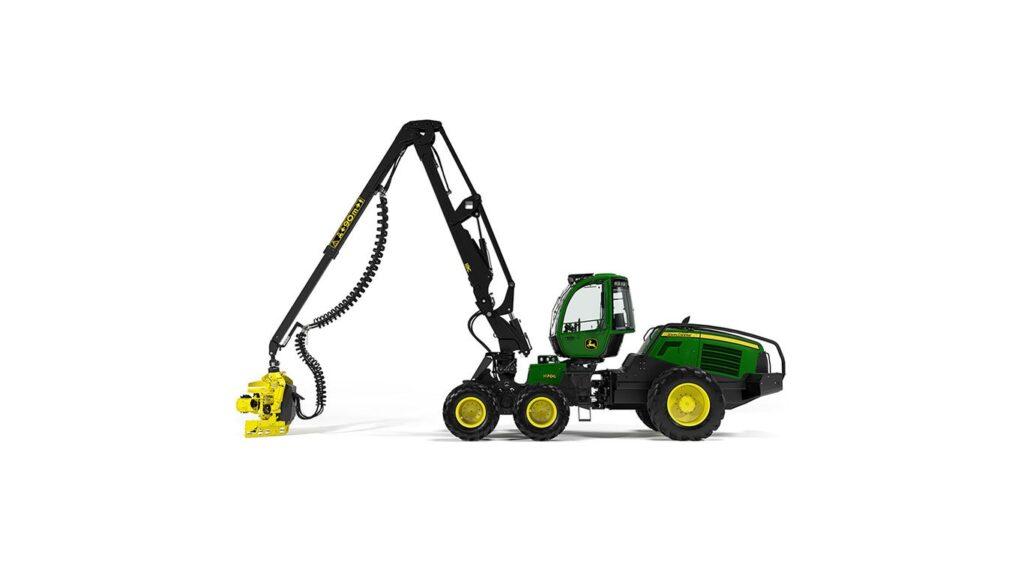

JOHN DEERE 1170G Wheeled Harvester
Forestry Equipment
- Net Power: 155 kW (208 hp) at 2,000 rpm
- Pump Capacity: 190 cm3 (11.6 cu. in.)
- Boom Reach: 10 m (32.8 ft.) / 11.3 m (37.1 ft.)
Select a category to view specifications (or view all).
| CAPACITIES - Reference Harvesting Head | H412 |
|---|---|
| DIMENSIONS - Wheelbase, mm (inches) | 3870 (152.4) |
| CAPACITIES - Pump Capacity, cm³ (Inches³) | 190 (11.6) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 10 (32 ft 9 in) |
| CAPACITIES - Felling Diameter, mm (inches) | 470 (18.5) |
| DIMENSIONS - Transport Height, mm (inches) | 3768 (148.32) |
| CAPACITIES - Number Of Alternators | 1 |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 978 (721) |
| DRIVELINE - Engine Manufacturer | John Deere |
| DESCRIPTION - Crane Model | CH6 |
| CAPACITIES - Travel Speed, kph (mph) | 24 (14.9) |
| DIMENSIONS - Height Over Cab, mm (inches) | 3768 (148.32) |
| CAPACITIES - System Voltage, V | 24 |
| DIMENSIONS - Base Carrier Length, mm (inches) | 7240 (285) |
| WEIGHTS - Operating Weight, kg (lbs) | 17800 (39242) |
| DRIVELINE - Displacement, ltr (Inches³) | 6.8 (414) |
| DIMENSIONS - Overall Width, mm (inches) | 2600 (102) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 300 (79.3) |
| DRIVELINE - Rated Speed, rpm | 2000 |
| DRIVELINE - Transmission Type | Hydrostatic-Mechanical |
| DRIVELINE - Drive Configuration | 6 x 6 |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 160 (42.3) |
| CAPACITIES - Delimbing Diameter, mm (inches) | 370 (14.6) |
| DRIVELINE - Engine Output, kW (hp) | 155 (208) |
| DRIVELINE - Engine Model | PowerTech Plus 6068 |
| DIMENSIONS - Ground Clearance, mm (inches) | 633 (24.9) |
| WEIGHTS - Weight - With Reference Head, kg (lbs) | 17800 (39242) |
Featured Content
- The CH6 parallel harvester boom on the 1170G combines easy handling with enormous slew power ratings. Combine with the H414 harvester head for all-around utility from late thinning to regeneration harvesting.
- The high lifting and slewing torque of the boom gives the 1170G harvester the agility needed for late-thinning and final-felling operations.
- TimberMatic ensures high productivity and easy operation by allowing operators to fine-tune all machine and harvester-head settings to personal preferences.
RENCRAFT® Super Hard Coat polycarbonate windows are scratch resistant, tolerant of cleaning agents, and enhance optic quality. These windows comply with the ISO 21876 saw-chain shot-testing standard, proving their durability. Plus, due to their almost 50-percent thicker material than previous windows, the cab is better insulated, resulting in a quieter work environment.
- A first in the harvester category, IBC provides operators with increased accuracy and productivity — bringing harvester capabilities to a whole new level.
- With IBC, the operator controls only the harvester head while the system takes care of the boom’s movement. Designed specifically to suit the harvester work cycle, the boom’s movement and operation automatically adjust as the boom is taken to a tree and when the tree is in the grapple. IBC enables precise working and the selection of the correct working methods.
- Processing Power Control (PPC) lowers operating costs and increases productivity by five to 15 percent by balancing processing power and fuel economy in a variety of logging applications.
- Choose from compact six- or eight-wheeled options.
