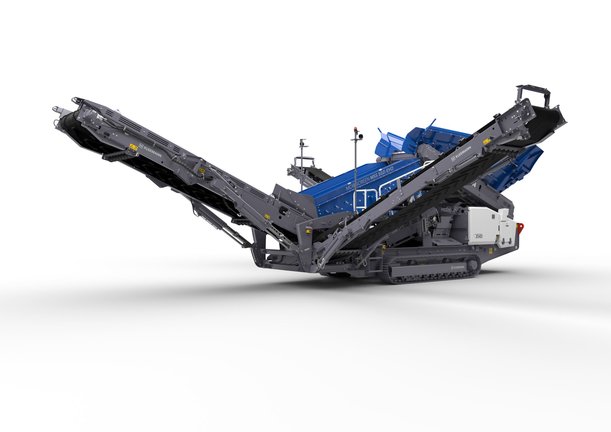

KLEEMANN MSS 502i EVO
Mobile Screening Plants
Properties
Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 502 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 502 EVO easily to new application conditions.
- Mobile double-deck screening unit
- H-DRIVE Diesel-hydraulic drive
- Screen for coarse elements
- Maximum feed size 640 x 400 x 240 mm
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Width x length | 32 in x 25 ft 6 in |
|---|---|
| POWER SUPPLY UNIT - Drive concept | Diesel-H-DRIVE (Diesel-hydraulic) |
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (FINE GRAIN) - Length approx. | 23 ft 5 in |
| FEEDING UNIT - Feed height | 10 ft 10 in |
| FEEDING UNIT - Hopper volume | 8.4 yd³ |
| POWER SUPPLY UNIT - Power supply unit output | 98 hp |
| POWER SUPPLY UNIT - Power pack manufacturer | John Deere |
| FEEDING UNIT - Max. feed size | 26 in x 16 in x 10 in |
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Discharge height approx. | 11 ft |
| BELT CONVEYOR, FINE GRAIN DISCHARGE - Width x length | 40 in x 6 ft 11 in |
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (FINE GRAIN) - Discharge height min. approx. | 8 ft x 5 in |
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (FINE GRAIN) - Discharge height max. approx. | 11 ft x 4 in |
| DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Width x length | 48 in x 19 ft 11 in |
| DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Discharge height approx. | 13 ft 2 in |
| DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (FINE GRAIN) - Width approx. | 32 in |
Featured Content
Flexibility, ease of use and ergonomics: the high-performance MOBISCREEN MSS 502 EVO and MSS 802 EVO mobile coarse screening plants are convincing in different areas of application and differ primarily in their size.
Properties
Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 502 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 502 EVO easily to new application conditions.
- Mobile double-deck screening unit
- H-DRIVE Diesel-hydraulic drive
- Screen for coarse elements
- Maximum feed size 640 x 400 x 240 mm
