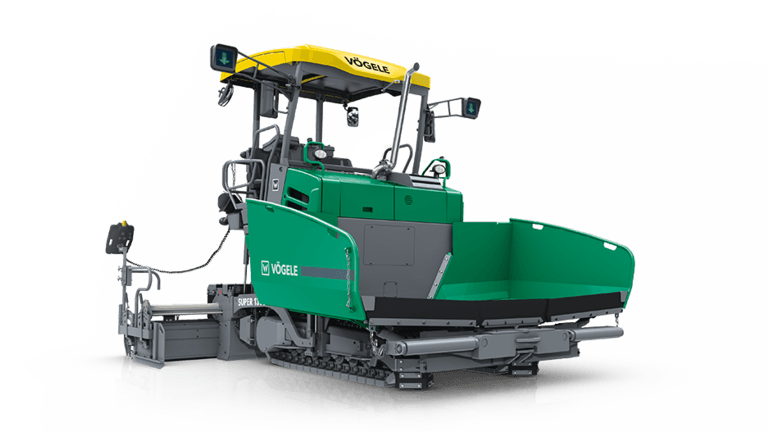

VOGELE SUPER 1300-3i
Compact Class
Compact and powerful with the convenience of the Premium Line
The SUPER 1300-3i is extremely compact and yet has a high laydown rate and a paving width of up to 16 ft 5 in. With a range of paving widths extending from 2 ft 6 in to 16 ft 5 in, the SUPER 1300-3i copes effortlessly with combined foot and cycle paths, farm tracks and minor roads and areas.
| UNDERCARRIAGE - Track tension adjuster | spring assembly |
|---|---|
| SCREED - Screed heating | electric |
| DRIVE - Sound power level | 105 dB |
| UNDERCARRIAGE - Ground contact | 1,990 mm x 260 mm |
| DRIVE - ECO mode output | 92 hp / 1,600 rpm |
| DRIVE - Version | liquid-cooled 4-cylinder diesel engine |
| UNDERCARRIAGE - Lubrication of track rollers | lifetime |
| UNDERCARRIAGE - Travel speed (up to) | 2.8 mph |
| SCREED - Screed | Type Basic width Maximum width Compacting systems AB 340 5 ft 11 in 16 ft 5 in V, TV |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard V, US standard EPA Tier 4f |
| DRIVE - Type | TCD 3.6 L4 |
| DRIVE - Daily noise exposure level | 80 dB |
| UNDERCARRIAGE - Traction drive crawler tracks | electronically controlled separate hydraulic drive provided for each crawler track |
| UNDERCARRIAGE - Paving speed (up to) | 98 fpm |
| UNDERCARRIAGE - Version | provided with rubber pads |
| DRIVE - Exhaust emissions after-treatment | DOC, DPF, SCR |
| DRIVE - Manufacturer | Deutz |
| DRIVE - Nominal output | 100 hp / 2,000 RPM |
| SCREED - Power supply | three-phase AC generator |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 385 US t/hr |
| CONVEYORS AND AUGERS - Speed | 85 rpm |
| CONVEYORS AND AUGERS - Standard height | mechanically adjustable by 5 in |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length AB 340 16 ft 3 in |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
| MATERIAL HOPPER - Standard | oscillating, fold up with hopper sides |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 4 in |
| CONVEYORS AND AUGERS - Conveyors | 2 |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight AB 340 V 23,480 lbs AB 340 TV 23,920 lbs |
Featured Content
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
AutoSet Basic is especially helpful when the machine frequently has to be moved on the job site.
Simply pressing the “Execute” button hydraulically raises the augers, the hopper front and the deflectors in front of the crawler to the uppermost positions. The screed is moved into transport position. The conveyors are temporarily reversed, preventing mix from falling to the ground when the paver travels to the next work section on site.
Once the paver has been repositioned, pressing the “Execute” button again returns all systems to the previously stored working positions.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
