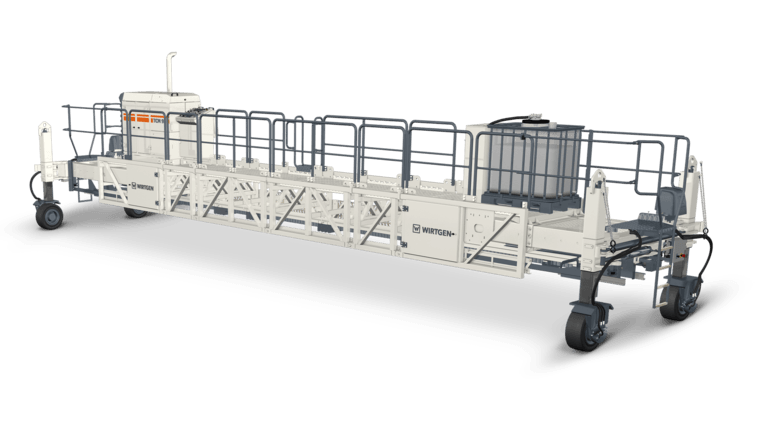

Wirtgen TCM 95i

TCM 95i

  • Wirtgen
  • Texture Curing Machines

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Optimum Texture and Protection for Concrete Surfaces up to 32 ft Wide

  • The modular machine design makes it possible to adapt to working widths between 13 ft 1 in and 32 ft.
  • The self-propelled texture curing machine produces the desired surface textures on the freshly paved concrete surface.
  • The automated spraying system with a generously sized storage container effectively distributes the dispersion and protects the concrete surface from premature drying.
  • The various texture and spray modes as well as other texture alternatives offer a wide range of functionality.
  • An extensive array of options that can be combined without additional installation work make a wide variety of applications possible while guaranteeing maximum machine availability.
  • + Expand All
  • - Close All
  • Texture curing of concrete roadways

    In accordance with national or tender specifications, WIRTGEN texture curing machines can be used to produce different grip values generating different noise levels. To do so, a plastic or metal broom is applied, moving over the concrete slab in either transverse, diagonal or longitudinal direction. As an alternative to the broom finish, burlap or artificial turf is guided across the concrete slab in longitudinal direction. Exposed aggregate concrete is increasingly applied as an alternative technology. Depending on weather conditions and paving result, dispersion must additionally be sprayed on the fresh concrete surface as quickly as possible to prevent premature drying.

  • WIRTGEN leveling technology

    WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.

    WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.

SPECIFICATIONS

Working width max. 32 ft
Operating weight, CE 17,196 - 25,574 lbs
Exhaust emissions category EU Stage 4/US EPA Tier 4f
Working height 1 ft 8 in
Number of wheels 4
Rated power 55.4 kW / 74.3 hp
Displacement 179 in³
