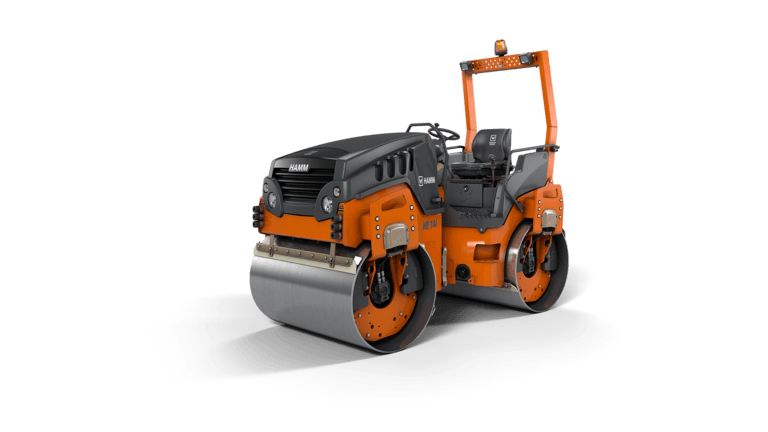

HD 14i VV
- Hamm
- Tandem Rollers Series HD CompactLine
Find Your Nearest Location
Key Features & Specs
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Ergonomic driver platform
-
Excellent view of drum edge, machine and construction site environment
-
Compact dimensions
BASIC DATA
| Series | HD CompactLine |
| Exhaust emissions category | EU Stage V / EPA Tier 4 |
| Name | HD 14i VV |
| Series | H285 |
| Description | Tandem roller with two vibrating roller drums |
DIESEL ENGINE
| Power ISO 14396, HP | 50.9 HP |
| Power ISO 14396, kW | 37.4 kW |
| Power SAE J1995, rpm | 2,700 RPM |
| Exhaust gas after-treatment | DOC-DPF |
| Power SAE J1995, HP | 50.1 hp |
| Number of cylinders | 4 |
| Type | V2403-CR |
DRIVE
| Speed, infinitely variable | 0,0 - 6,8 |
| Climbing ability, without vibration | 40 % |
| Climbing ability, with vibration | 30 |
DRUM DIMENSIONS
| Track offset, right | 2 in |
| Drum thickness, front | 0.6 in |
| Drum diameter, rear | 35.4 in |
| Track offset, left | 0 in |
| Drum type, rear | Smooth/non-split |
| Drum width, rear | 54.3 in |
MACHINE DIMENSIONS
| Total width | 59.3 in |
| Max. working width | 56.3 in |
| Wheelbase | 76.8 in |
| Total height with ROPS | 102 in |
| Total length | 116.7 in |
| Total height with cab | 107.1 in |
| Turning radius, inside | 104.3 in |
| Ground clearance, center | 12 in |
| Height, loading, min. | 71.7 in |
SOUND LEVEL
| Acoustic power LW(A), measured | 102 db(A) |
| Acoustic power LW(A), sticker | 104 |
SPRINKLER SYSTEM
| Fuel tank, capacity | 19.3 gpm |
| Water sprinkler, type | Pressure |
| Water tank, capacity | 75.3 gpm |
STEERING
| Steering, type | Articulated steering |
| Oscillation angle +/- | 8 ° |
VIBRATION
| Vibration frequency, rear, I | 3,600 VPM |
| Centrifugal force, rear, II | 8,775 lbs |
| Centrifugal force, rear, I | 14,400 lbs |
| Vibration frequency, front, II | 3,060 VPM |
| Amplitude, rear, I | 0.02 in |
| Amplitude, front, II | 0.012 in |
WEIGHTS
| Axle load, front | 4,972 lbs |
| French classific., data/class | 10,6/VT0 |
| Operating weight, max. | 12,414 lbs |
| Operating weight with ROPS | 9,779 lbs |
| Basic weight no cab, without ROPS | 9,074 lbs |
| Operating weight with cab | 10,330 lbs |
| Axle load, rear | 4,807 lbs |
| Static linear load, front | 91.3 lbs/in |
