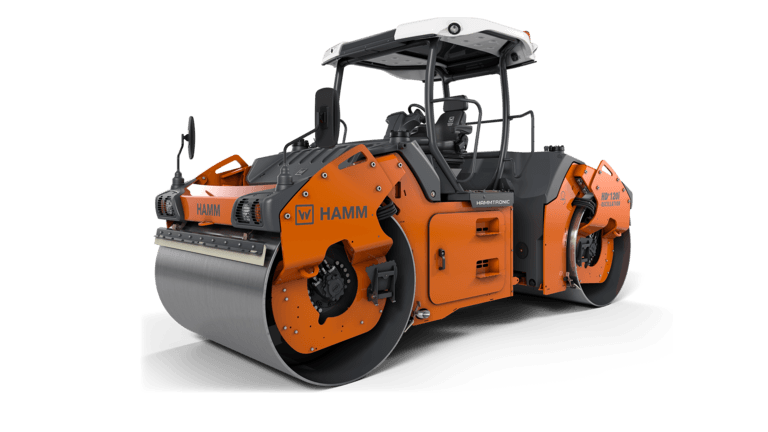

HAMM HD+ 120i VO
Series HD+
Highlights
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
-
Compaction with oscillation
| WEIGHTS - French classific., data/class | 30,1/VT2 |
|---|---|
| DRIVE - Climbing ability, without vibration | 41 % |
| OSCILLATION - Oscillation frequency, rear | 2,160 VPM |
| VIBRATION - Amplitude, front, I | 0.035 in |
| VIBRATION - Vibration frequency, front, I | 2,400 VPM |
| VIBRATION - Amplitude, front, II | 0.014 in |
| VIBRATION - Centrifugal force, front, I | 38,925 lbs |
| VIBRATION - Centrifugal force, front, II | 21,375 lbs |
| OSCILLATION - Tangential amplitude, rear | 0.049 in |
| STEERING - Steering, type | Articulated steering |
| WEIGHTS - Operating weight with ROPS | 27,882 lbs |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| DRIVE - Climbing ability, with vibration | 41 |
| WEIGHTS - Static linear load, front | 178.6 lbs/in |
| OSCILLATION - Oscillation force, rear | 39,375 lbs |
| WEIGHTS - Operating weight, max. | 30,208 lbs |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| DRIVE - Speed, infinitely variable | 0,0-6,2 |
| WEIGHTS - Operating weight with cab | 28,411 lbs |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 68.7 gpm |
| BASIC DATA - Series | HD+ |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF-SCR |
| BASIC DATA - Series | H274 |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DIESEL ENGINE - Power SAE J1349, kW | 115 kW |
| STEERING - Oscillation angle +/- | 10 ° |
| SOUND LEVEL - Acoustic power LW(A), measured | 107 db(A) |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| MACHINE DIMENSIONS - Turning radius, inside | 247.2 in |
| MACHINE DIMENSIONS - Total length | 208.7 in |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| DRUM DIMENSIONS - Drum diameter, front | 55.1 in |
| MACHINE DIMENSIONS - Curb clearance, left | 35.4 in |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 302.5 gpm |
| MACHINE DIMENSIONS - Height, loading, min. | 84.3 in |
| DIESEL ENGINE - Power ISO 14396, HP | 156.4 HP |
| DIESEL ENGINE - Power SAE J1349, HP | 154.1 hp |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| BASIC DATA - Name | HD+ 120i VO |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| MACHINE DIMENSIONS - Max. working width | 84.6 in |
| MACHINE DIMENSIONS - Total width with cab | 84.4 in |
| MACHINE DIMENSIONS - Wheelbase | 153.5 in |
| DIESEL ENGINE - Type | TCD 4.1 L4 |
| DIESEL ENGINE - Number of cylinders | 4 |
| DRUM DIMENSIONS - Drum width, rear | 78 in |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and oscillation drum |
| DRUM DIMENSIONS - Drum thickness, rear | 0.8 in |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,300 RPM |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| SOUND LEVEL - Acoustic power LW(A), sticker | 109 |
Featured Content
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
