VOGELE AB 600
Extending Screeds
Equipment Specifications
| COMPACTING SYSTEMS - Pressure bar drive (P) | pulsed hydraulic |
|---|---|
| COMPACTING SYSTEMS - Speed (max.) | 1,800 rpm |
| COMPACTING SYSTEMS - Stroke (TP1, TP2) | 0.08 in, 0.16 in, 0.28 in |
| PAVING WIDTHS - Maximum paving width | 31 ft 2 in |
| PAVING WIDTHS - Length | Bolt-on extensions 10 in 30 in 49 in |
| SCREED HEATING - Control | fully automatic, thermostat-controlled |
| DIMENSIONS AND WEIGHTS - Depth (in transport position) | Screed Depth AB 600 TV 4 ft 2 in AB 600 TP 4 ft 8 in |
|---|---|
| SCREED HEATING - Output generation | three-phase AC generator |
| COMPACTING SYSTEMS - Vibrators (V) | eccentric vibrators |
| PAVING WIDTHS - Hydraulically adjustable | 9 ft 10 in to 19 ft 8 in |
| PROFILE SETTINGS - Height adjustment, extending units | -1 in to 1 in |
| COMPACTING SYSTEMS - Stroke (TP2 Plus) | 0.16 in, 0.28 in, 0.35 in |
| COMPACTING SYSTEMS - Frequency (max.) | 50 Hz |
| PROFILE SETTINGS - Version | hydraulic |
| PROFILE SETTINGS - Crown adjustment | -2.5 % to 5 % |
| SCREED HEATING - Optional screed heating | function monitoring of each individual heating rod |
| PAVING WIDTHS - Minimum paving width | 9 ft 10 in |
| PROFILE SETTINGS - Slope, extending units (max.) | 2 % |
| SCREED HEATING - Heating rods | on screed plates and in tamper bars and pressure bars |
| COMPACTING SYSTEMS - Stroke (TV) | 0.16 in |
| DIMENSIONS AND WEIGHTS - Weight of basic screed | Screed Weight AB 600 TV 8,050 lbs AB 600 TP1 8,820 lbs AB 600 TP2 9,590 lbs AB 600 TP2 Plus 10,470 lbs |
| COMPACTING SYSTEMS - Compacting systems | TV, TP1, TP2, TP2 Plus |
| COMPACTING SYSTEMS - Hydraulic oil pressure (max.) | 1,740 psi |
| COMPACTING SYSTEMS - Pressure bar pulse frequency (P) (max.) | 68 Hz |
Featured Content
The operating principle of all VÖGELE extending screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
The pressure bars driven by pulsed-flow hydraulics are the core of VÖGELE high-compaction technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high-compaction technology – without rolling.
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
The extending screed with limitless applications in the Universal Class and the Highway Class

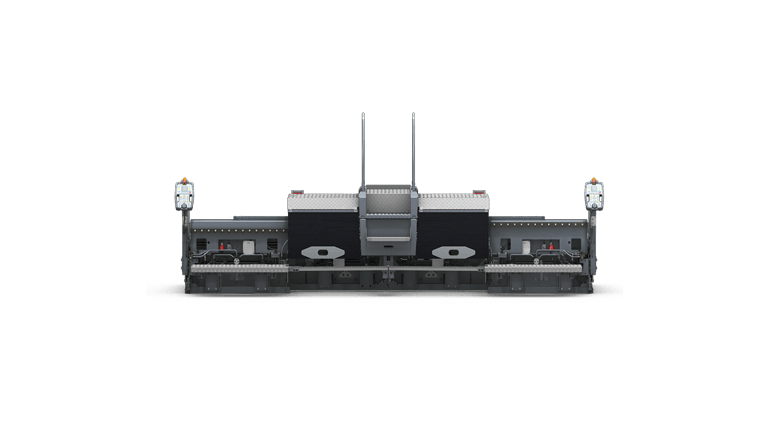

The AB 600 Extending Screed has a basic width of 10 ft. Equipped with the single-tube telescoping system, its paving width is infinitely variable up to 19 ft 8 in. With the addition of bolt-on extensions, even strips as wide as 31 ft 2 in can be paved without joints. As a result, the AB 600 is ideal for use with the VÖGELE SUPER pavers of the Universal Class and the Highway Class. In addition to the screed versions TV, TP1 and TP2, the TP2 Plus variant is also available for the AB 600 Extending Screed to achieve particularly high precompaction.
