VOGELE VF 500
Extending Screeds
Equipment Specifications
| COMPACTING SYSTEMS - Frequency (max.) | 50 Hz |
|---|---|
| PAVING WIDTHS - Cut-off shoes | 4 x 1 ft |
| PAVING WIDTHS - Length | Bolt-on extensions 12 in 24 in |
| DIMENSIONS AND WEIGHTS - Depth (in transport position) | Screed Depth VF 500 4 ft |
| SCREED HEATING - Heating rods | on screed plates |
| PAVING WIDTHS - Maximum paving width | 19 ft 6 in |
| SCREED HEATING - Output generation | three-phase AC generator |
|---|---|
| PROFILE SETTINGS - Version | hydraulic |
| PROFILE SETTINGS - Crown adjustment | -2 % to 5 % |
| COMPACTING SYSTEMS - Vibrators (V) | eccentric vibrators |
| DIMENSIONS AND WEIGHTS - Width (without end gate) | 8 ft 6 in |
| COMPACTING SYSTEMS - Compacting systems | V |
| PAVING WIDTHS - Basic width | 8 ft |
| PROFILE SETTINGS - Slope, extending units (max.) | 10 % |
| SCREED HEATING - Control | fully automatic, thermostat-controlled |
| DIMENSIONS AND WEIGHTS - Weight of basic screed | Screed Weight VF 500 6,500 lbs |
| PAVING WIDTHS - Hydraulically adjustable | 8 ft to 15 ft 7 in |
| PROFILE SETTINGS - Berms | 12 in, 18 in, 24 in |
| PAVING WIDTHS - Minimum paving width | 4 ft |
Featured Content
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.

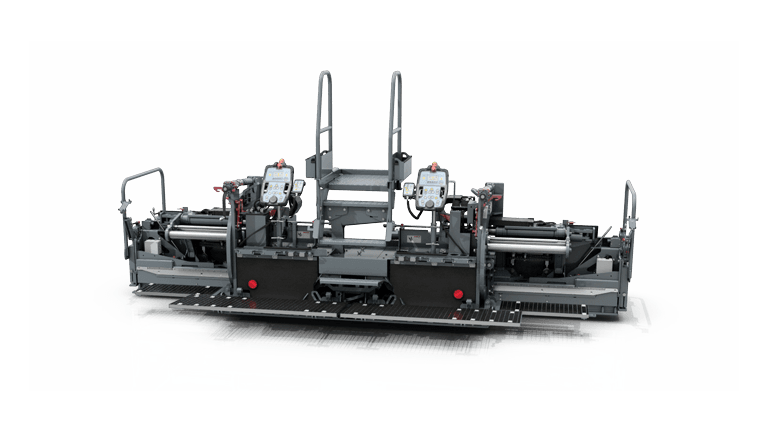

VÖGELE extending screed with front-mounted extensions
The VF 500 Extending Screed has been specially developed for the SUPER 1700-3i and SUPER 1703-3i pavers of the Universal Class. The VF 500 is ideal for applications which require a variable paving width, such as parking lots with islands and light masts, roads for residents only, urban roads with manhole covers, gas or water connections, junctions on highways or work on country roads, i.e. jobs which involve paving around obstacles.
