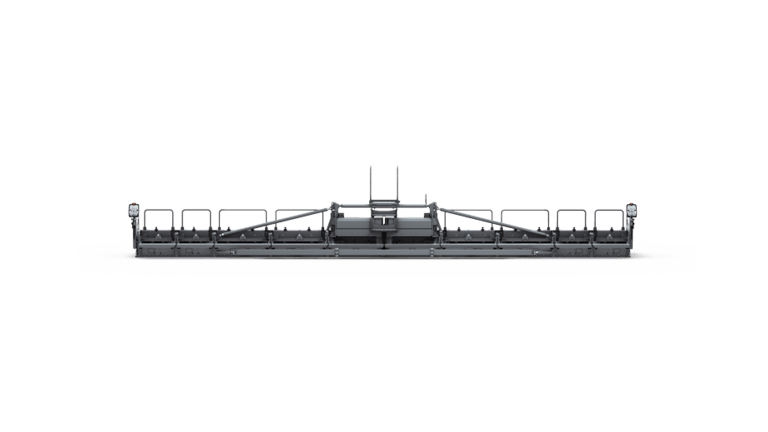

VOGELE SB 300 HD
Fixed-Width Screeds
The specialist for difficult roadbase jobs
Select a category to view specifications (or view all).
| DIMENSIONS AND WEIGHTS - Depth (in transport position) | Screed Depth SB 300 HD 4 ft 5 in |
|---|---|
| DIMENSIONS AND WEIGHTS - Weight of basic screed | Screed Weight SB 300 HD TV 5,290 lbs |
| PAVING WIDTHS - Maximum paving width | 39 ft 4 in |
| COMPACTING SYSTEMS - Compacting systems | TV |
| PAVING WIDTHS - Length | Bolt-on extensions 10 in 20 in 39 in 59 in |
| COMPACTING SYSTEMS - Frequency (max.) | 50 Hz |
| COMPACTING SYSTEMS - Vibrators (V) | eccentric vibrators |
| PROFILE SETTINGS - Crown adjustment | -2 % to 3 % |
| PROFILE SETTINGS - Version | mechanical |
| PAVING WIDTHS - Minimum paving width | 9 ft 10 in |
| COMPACTING SYSTEMS - Speed (max.) | 1,800 rpm |
Featured Content
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
