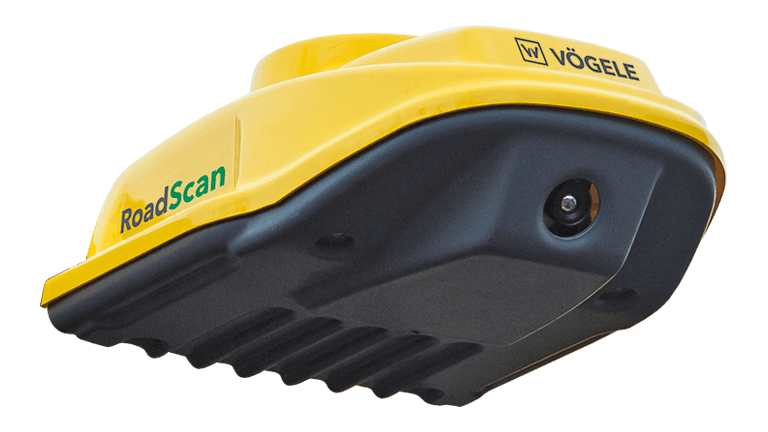

VOGELE RoadScan
WITOS Paving
Equipment Specifications
| GENERAL - Size of grid square | 25 cm x 25 cm |
|---|---|
| GENERAL - Product category | Hardware: temperature measurement system / Software: RoadScan Analysis (web application) |
| GENERAL - Individual measuring points (up to) | 16 |
| GENERAL - Measuring area | 40 grid squares |
| GENERAL - Transmission | USB |
| GENERAL - Measuring points per measuring line (up to) | 640 |
Select a category to view specifications (or view all).
| GENERAL - GPS receiver | integrated (EGNOS standard, RTK optional) |
|---|---|
| GENERAL - Measuring width | up to 32 ft 10 in |
| GENERAL - Positioning | GPS |
| GENERAL - Control | Paver operator‘s ErgoPlus 3 console |
| GENERAL - Measurement tolerance | ± 4 K |
| RANGE OF FUNCTIONS - Data export | pdf, csv |
| GENERAL - Measuring range | 32°F - 482°F |
Keeping an eye on quality with VÖGELE RoadScan
VÖGELE’s RoadScan non-contacting temperature measurement system is an innovative and economic solution for the road construction industry. Making quality measurable is one of the big challenges facing contractors and clients worldwide. In road construction, it is particularly important to verify that a constant paving temperature has been maintained, as this is a key criteria for ensuring the quality and durability of roads. As a result, the significance of temperature monitoring across the entire pavement is currently on the rise in an increasing number of markets.
