John Deere 245 P-Tier

John Deere 245 P-Tier

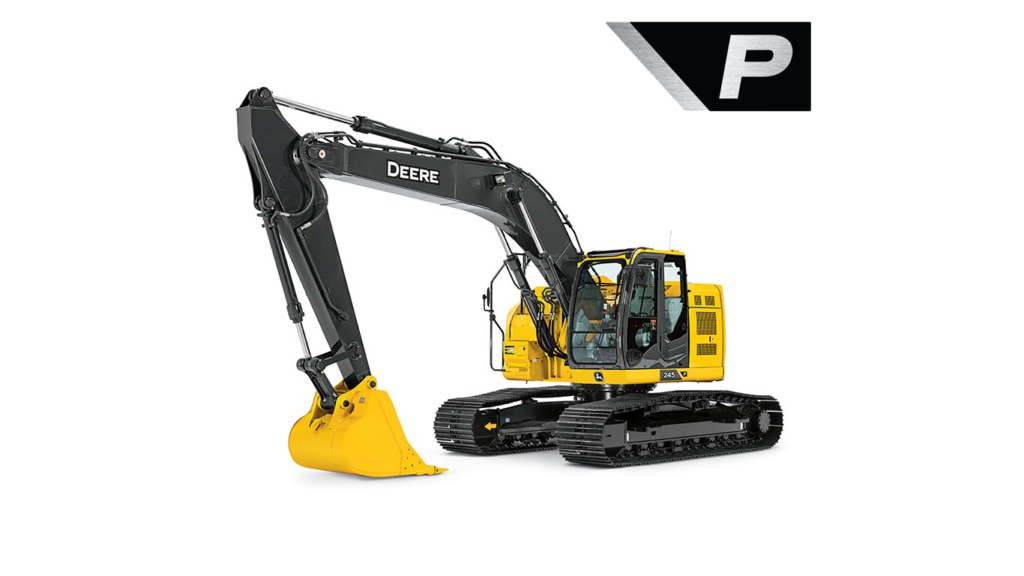

245 P-Tier Mid-Size Excavator

John Deere
Mid-Size Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 119 kW (159 hp)
Max. Digging Depth: 6.62 m (21 ft. 8 in.)
Operating Weight: 25 800 kg (56,879 lb.)

Net Rated Power 119 kW (159 hp)
Operating Weight 25,800 kg (56,879 lb.)
Max Digging Depth 6.62 m (21 ft. 8 in.)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	380 (100)
Hydraulic Tank, ltr (gallons (US))	130 (34.3)

DIMENSIONS

Overall Undercarriage Width, mm (ft/in)	3090 (10 ft 1 in)
Digging Reach - Mono Boom, mm (ft/in)	10110 (33 ft 2 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	6410 (21 ft )
Track Gauge, mm (ft/in)	2390 (7 ft 10 in)
Ground Clearance, mm (inches)	450 (18)
Overall Undercarriage Length, mm (ft/in)	4460 (14 ft 7 in)
Tailswing Radius, mm (ft/in)	1680 (5 ft 6 in)
Width over fixed tracks, mm (ft/in)	3090 (10 ft 1 in)
Dig Height - Mono Boom, mm (ft/in)	11230 (36 ft 10 in)
Dump Height - Mono Boom, mm (ft/in)	8290 (27 ft 2 in)
Ground Level Reach - Mono Boom, mm (ft/in)	9900 (32 ft 6 in)
Dig Depth - Mono Boom, mm (ft/in)	6620 (21 ft 8 in)
Transport Height - Maximum, mm (ft/in)	3030 (9 ft 11 in)
Transport Length Mono Boom, mm (ft/in)	9120 (29 ft 11 in)
Track Length On Ground, mm (ft/in)	3660 (12 ft )

DRIVELINE

Emission Rating	Tier 4 / Stage IV
Displacement, ltr (Inches³)	5.19 (317)
Number Of Carrier Rollers - Each Side	2
Engine Output - Net, kW (hp)	119 (159)
Rated speed, rpm	2000
Engine Manufacturer	Isuzu
Number Of Track Rollers - Each Side	8
Number Of Cylinders	4
Track Shoe Width, mm (inches)	700 (28)

PERFORMANCE

Total Flow, lt/min (gallons (US) / min)	613 (162)
Gradeability, %	70
Bucket Pressure, bar (PSI)	343 (4970)
Bucket Breakout, kN (lbf)	158 (35520)
Swing Torque, kNm (lbf / ft)	68 (50000)
End lift - 7.5m Reach, kg (lbs)	5590 (12050)
Side lift - 7.5m Reach, kg (lbs)	3390 (7330)
Swing Speed, rpm	11.8
Tractive Force, kN (lbf)	203 (45640)
Travel Speed - High, kph (mph)	5.5 (3.4)
Boost Pressure, bar (PSI)	380 (5510)
Arm Tearout, kN (lbf)	114 (25630)
Ground Bearing Pressure, kPa (PSI)	45 (6.53)

WEIGHTS

Operating Weight, kg (lbs)

25500 (56218)
