John Deere 350 P-Tier

John Deere 350 P-Tier

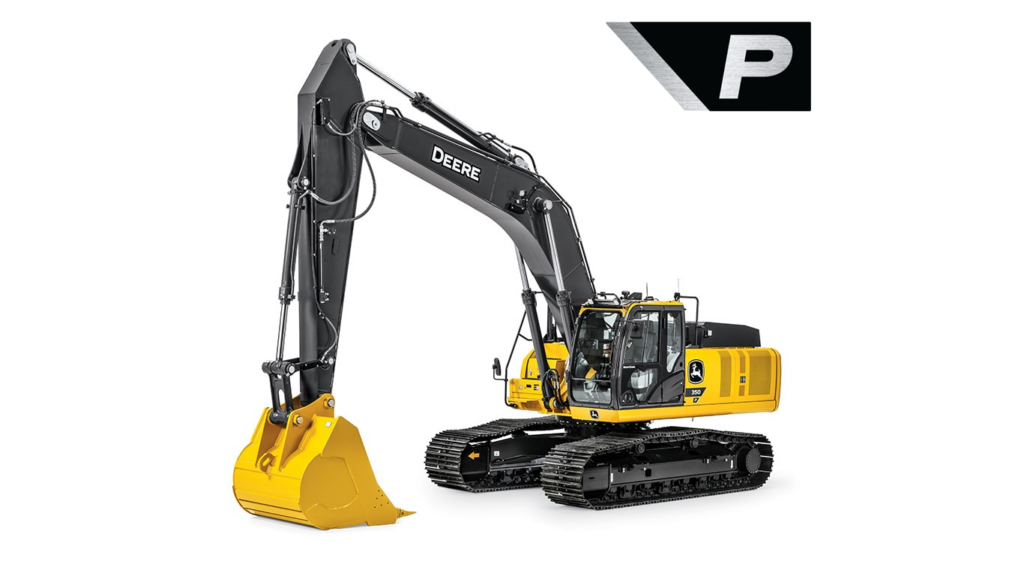

350 P-Tier Mid-Size Excavator

John Deere
Mid-Size Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 202 kW (271 hp)
Max. Digging Depth: 8.18 m (26 ft. 10 in.)
Operating Weight: 36 734 kg (80,985 lb.)

Net Rated Power 202 kW (271 hp)
Operating Weight 36,734 kg (80,985 lb.)
Max Digging Depth 8.18 m (26 ft. 10 in.)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	628 (166)
Hydraulic Tank, ltr (gallons (US))	193 (51)

DIMENSIONS

Digging Reach - Mono Boom, mm (ft/in)	11100 (36 ft 5 in)
Dump Height - Mono Boom, mm (ft/in)	7240 (23 ft 9 in)
Dig Depth - Mono Boom, mm (ft/in)	7380 (24 ft 3 in)
Track Length On Ground, mm (ft/in)	4050 (13 ft 3 in)
Dig Height - Mono Boom, mm (ft/in)	10360 (34 ft )
Overall Undercarriage Width, mm (ft/in)	3390 (11 ft 1 in)
Ground Level Reach - Mono Boom, mm (ft/in)	10890 (35 ft 9 in)
Ground Clearance, mm (inches)	500 (19.6)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	7210 (23 ft 8 in)
Tailswing Radius, mm (ft/in)	3600 (11 ft 10 in)
Transport Height - Maximum, mm (ft/in)	3270 (10 ft 9 in)
Transport Length Mono Boom, mm (ft/in)	11200 (36 ft 9 in)
Width over fixed tracks, mm (ft/in)	3390 (11 ft 1 in)
Overall Undercarriage Length, mm (ft/in)	4940 (16 ft 2 in)
Track Gauge, mm (ft/in)	2590 (8 ft 6 in)

DRIVELINE

Number Of Track Rollers - Each Side	8
Track Shoe Width, mm (inches)	800 (31)
Engine Manufacturer	John Deere Power Tech
Emission Rating	Tier 4 / Stage V
Number Of Cylinders	6
Engine Output - Net, kW (hp)	202 (271)
Rated speed, rpm	1900
Number Of Carrier Rollers - Each Side	2
Displacement, ltr (Inches³)	9 (549)

PERFORMANCE

Travel Speed - High, kph (mph)	5 (3.1)
Side lift - 7.5m Reach, kg (lbs)	6460 (13960)
Bucket Breakout, kN (lbf)	246 (55303)
End lift - 7.5m Reach, kg (lbs)	10270 (22140)
Bucket Pressure, bar (PSI)	343 (4975)
Boost Pressure, bar (PSI)	380 (5511)
Swing Torque, kNm (lbf / ft)	120 (88500)
Swing Speed, rpm	10.7
Tractive Force, kN (lbf)	297.5 (66900)
Ground Bearing Pressure, kPa (PSI)	50.1 (7.27)
Gradeability, %	70
Total Flow, lt/min (gallons (US) / min)	576 (152)
Arm Tearout, kN (lbf)	185 (41590)

WEIGHTS

Operating Weight, kg (lbs)

36734 (80985)
