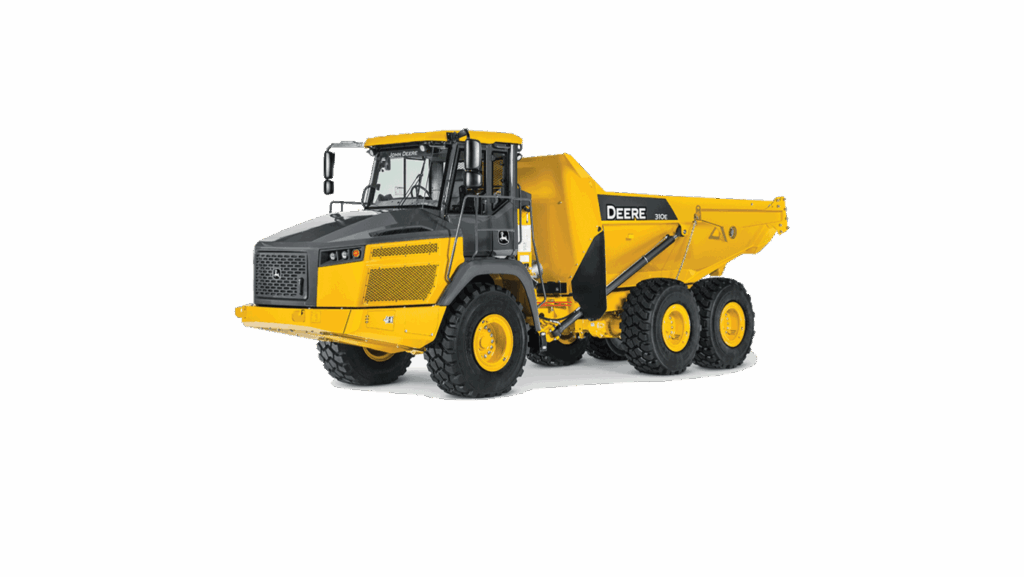

JOHN DEERE 310E Articulated Dump Truck
Articulated Dump Trucks
- Net Power: 264KW (354 hp) at 1,900 rpm
- Rated Payload: 28,125 kg (62,005 lb.)
- Heaped Capacity: 17.5 m3 (22.9 cu. yd.)
| DESCRIPTION - Air Conditioner | Yes |
|---|---|
| DESCRIPTION - Steering wheel adjustment | Fully Adjustable |
| DESCRIPTION - Telematics Available | Yes |
| DESCRIPTION - Fleet Management | Yes |
| DRIVELINE - Engine Manufacturer | John Deere |
| DRIVELINE - Engine Model | PowerTech PSS 6090 |
| DRIVELINE - Emission Rating | Tier 4 |
| DRIVELINE - Displacement, ltr (Inches�) | 9 (549) |
| DRIVELINE - Rated Speed, rpm | 1900 |
| DRIVELINE - Transmission Manufacturer | John Deere |
| DRIVELINE - Final Drive | Planetary |
| DRIVELINE - Transmission Type | Countershaft |
| DRIVELINE - Steering Type | Articulated |
| DRIVELINE - Secondary Steering Type | Ground Driven Pump |
| DRIVELINE - Differential Lock | F: 100 / R: 100 |
| DRIVELINE - Tire size - Standard | 23.5 R25 |
| DRIVELINE - Front Suspension - Type | A-Frame |
| DRIVELINE - Front Suspension | Nitrogen/Oil-Filled Struts |
| DRIVELINE - Rear Suspension - Type | Pivoting Walking Beam |
| DRIVELINE - Rear Suspension | Rubber Suspension Blocks |
| DRIVELINE - Service Brake - Actuation | Hydraulic |
| DRIVELINE - Parking Brake - Type | Disc - Driveline |
| DRIVELINE - Retarder - Type | Transmission |
| DIMENSIONS - Length - Overall, mm (ft/in) | 10160 (33 ft 4 in) |
| DIMENSIONS - Height - Max, mm (ft/in) | 3660 (12 ft ) |
| DIMENSIONS - Width over Tires, mm (ft/in) | 2870 (9 ft 5 in) |
| DIMENSIONS - Hoist - Type | Twin, 1-Stage |
| DIMENSIONS - Power Down | Yes |
| DIMENSIONS - Approach Angle, � | 24 |
| DIMENSIONS - Articulation Angle, � � | 45 |
| DIMENSIONS - Turning Radius - Outside, mm (ft/in) | 8020 (26 ft 4 in) |
| DIMENSIONS - Turning Radius - Inside, mm (ft/in) | 4270 (14 ft ) |
| DIMENSIONS - Turns lock to lock | 4.2 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 496 (131) |
| CAPACITIES - Struck Capacity, m� (yd�) | 13.7 (17.9) |
| CAPACITIES - Heaped Capacity, m� (yd�) | 17.5 (22.9) |
| PERFORMANCE - Gears - Forward / Reverse | 8F - 4R |
| WEIGHTS - Net Weight, kg (lbs) | 22847 (50369) |
| WEIGHTS - Payload, kg (lbs) | 28125 (62005) |
| WEIGHTS - Gross Weight, kg (lbs) | 50972 (112374) |
Featured List
- Engine Power @ 1,900 rpm: 264 kW (354 hp)
- Rated Payload: 28 125 kg (62,005 lb.)
- Heaped Capacity: 17.5 m3 (22.9 cu. yd.)
Featured Content
Optional onboard weighing system is factory calibrated to within two-percent accuracy when payload exceeds 50 percent.
Inter-axle Differential Lock (IDL) transmits 50 percent of available torque to the forward axle and 50 percent to the two rear axles, simplifying operation. Or it can be engaged on-the-fly while slipping, for smoother navigation of tough jobsites.
Purpose-built transmission includes eight forward and four reverse gears to speed cycles and expand working range across a wide range of jobsite conditions.
A Deere exclusive, all daily checks and periodic service are accessible from ground level, including refilling both fuel and diesel exhaust fluid (DEF).
Front and rear worklights and optional high-mounted LED lights help illuminate the site. Stairway lights are push-button operated from inside the cab.
Remote park-brake release allows the park brake to be disengaged without climbing under the machine.
When enabled through the monitor, the operator can limit the percentage the rear chassis is off-level when unloading.
Standard reverse camera with choice of display gives the operator visibility to obstacles in the direct path of the machine while backing up.
Industry-leading transmission retarder confidently slows the truck. Outboard wet-disc brakes in all three axles are at the ready when service brakes are needed.
Greaseless pins and bushings are used throughout except in the articulation joint and oscillation area, so only eight grease fittings, need weekly attention.
Integrated tire-pressure/temperature-monitoring system comes standards. If pressure drops by 10 percent, a passive alarm appears on the monitor.
Ash-service intervals for the diesel particulate filter (DPF) are condition based, meaning the machine will notify the operator before service is required.
