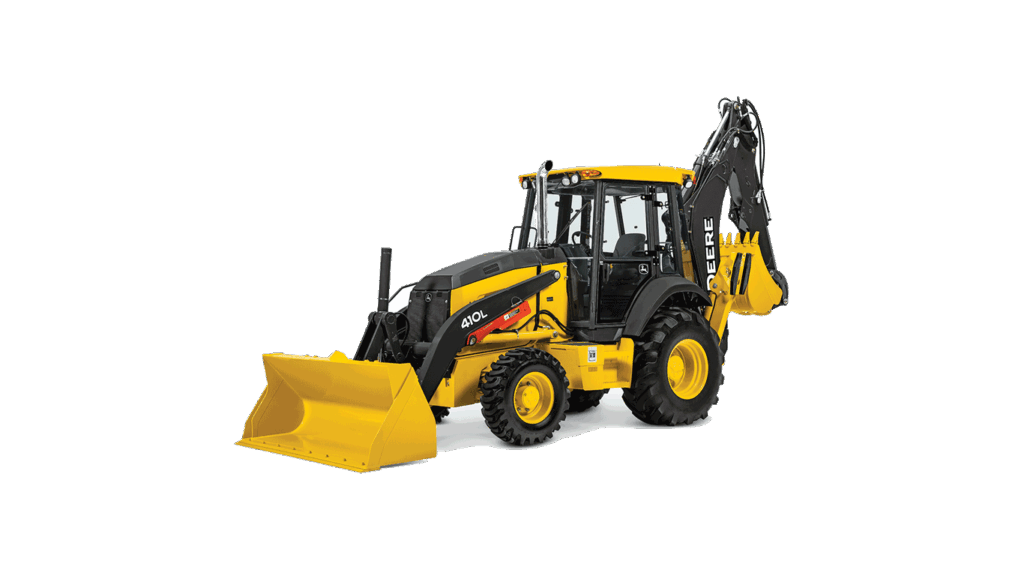

JOHN DEERE 410L Backhoe
Backhoes
- Net Power 84 kW (113 hp) @ 2,244 rpm
- Max. Digging Depth 4.83 m (15 ft. 10 in.)
- Operating Weight: 8178 kg (18 028 lb)
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 4045HT083 |
| DRIVELINE - Displacement, ltr (Inches�) | 4.5 (276) |
| DRIVELINE - Rated Speed, rpm | 2240 |
| DRIVELINE - Engine Output - Net, kW (hp) | 84 (113) |
| DRIVELINE - Transmission Type | Powershift |
| DRIVELINE - Service Brake Type | Wet Multi Disc |
| DRIVELINE - Service Brake Actuation | Hydraulic w/Power Assist |
| DIMENSIONS - Max length with std. Stick, mm (ft/in) | 7430 (24 ft 5 in) |
| DIMENSIONS - Max length with ext. Stick, mm (ft/in) | 7430 (24 ft 5 in) |
| DIMENSIONS - Height over std Stick, mm (ft/in) | 3930 (12 ft 11 in) |
| DIMENSIONS - Height over ext Stick, mm (ft/in) | 3930 (12 ft 11 in) |
| DIMENSIONS - Width over tires, mm (ft/in) | 2180 (7 ft 2 in) |
| DIMENSIONS - Wheelbase - 4WD, mm (ft/in) | 2190 (7 ft 2 in) |
| DIMENSIONS - Ground Clearance, mm (inches) | 334 (13) |
| DIMENSIONS - Width - General Purpose Shovel, mm (ft/in) | 2346 (7 ft 8 in) |
| DIMENSIONS - Bucket Rotation - Position 1, � | 190 |
| DIMENSIONS - Shovel Pin Height - General Purpose, mm (ft/in) | 3450 (11 ft 4 in) Heavy Duty |
| DIMENSIONS - Dump Height - General Purpose, mm (ft/in) | 2680 (8 ft 10 in) Heavy Duty |
| DIMENSIONS - Dump Reach - General Purpose, mm (inches) | 750 (29.5) Heavy Duty |
| DIMENSIONS - Digging Depth - General Purpose, mm (inches) | 157 (6.2) Heavy Duty |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 140.1 (37) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 45 (11.9) |
| CAPACITIES - Rear Axle, ltr (gallons (US)) | 18 (4.75) |
| CAPACITIES - 4WD Front Axle, ltr (gallons (US)) | 6.5 (1.725) |
| CAPACITIES - Shovel Capacity - Standard General Purpose, m� (yd�) | 1 (1.31) |
| CAPACITIES - Battery Voltage, V | 12 |
| CAPACITIES - Bucket Tearout - Non-Extending Dipper, kN (lbf) | 77.2 (17350) Lift Mode |
| CAPACITIES - Stick tearout, kN (lbf) | 48.6 (10932) Lift Mode |
| CAPACITIES - Boom Lift - Maximum Reach - Non-Extending Dipper, kg (lbs) | 1991 (4389) |
| CAPACITIES - Shovel Breakout - General Purpose, kN (lbf) | 47.3 (10634) |
| CAPACITIES - Lift To Full Height - General Purpose Shovel, kg (lbs) | 3243 (7149) |
| CAPACITIES - Pump | Axial Piston Pump |
| CAPACITIES - Pump Flow, lt/min (gallons (US) / min) | 159 (42) |
| WEIGHTS - Operating Weight, kg (lbs) | 8178 (18028) MFWD |
| WEIGHTS - Weight - 4WD, GP, std Stick, kg (lbs) | 8178 (18028) |
Featured List
- Engine Power: 84 kW (113 hp) at 2,244 rpm
- Standard Dig Depth: 4.83 m (15 ft. 10 in.)
- Operating Weight: 8,828 kg (19,463)
Featured Content
Ride control, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain.
True four-wheel drive on command. Standard limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive “on the fly” with the touch of a button on the new loader control.
Economy mode on our FT4/Stage IV PowerTech Plus diesel engine saves fuel by configuring separately between loader and backhoe functions.
Standard John Deere PowerShift™ transmission and AutoShift option provide smooth shifting and reliable performance under all operating conditions, with max speeds of up to 40 km/h (25 mph).
Redesigned pilot towers provide more legroom and additional space for transitioning between loader and backhoe operation.
Multi-function lever, fingertip electrohydraulic lever control, and palm-on-top loader-control grip makes operation even easier.
Same-side, ground-level service points help speed daily checks and fills. Other common-sense features such as quick-change filters, extended service intervals, simple-to-read sight gauges, and easy-access grease zerks help increase uptime and lower daily operating costs.
Machine-security system with touchpad passcode helps prevent unauthorized operation.
Craning capacity, or rear backhoe lift, is increased up to 25 percent from the 410K. An additional 10–15-percent increase in craning capacity is activated through Lift Mode at the push of a button on the convenient sealed switch module.
