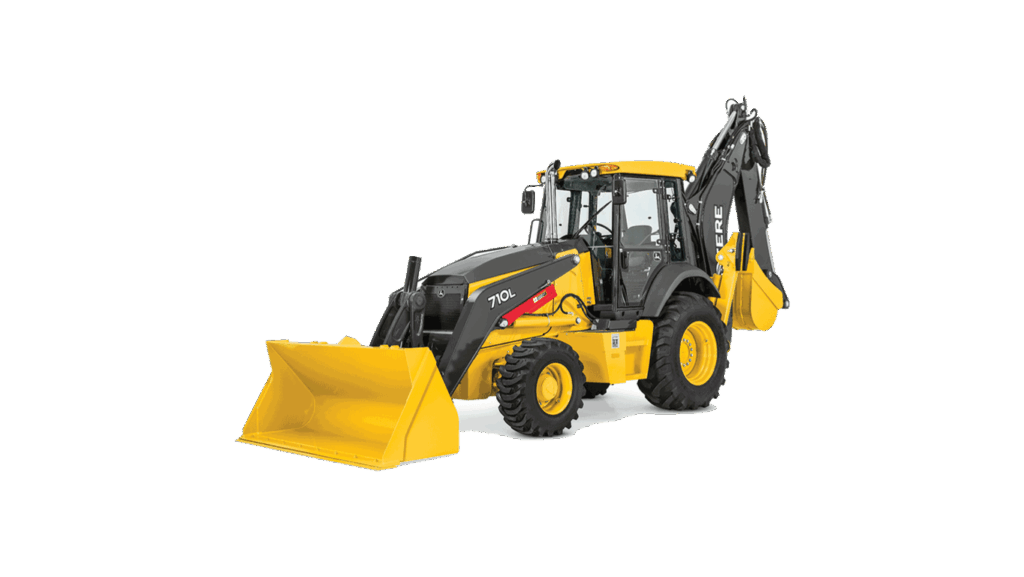

JOHN DEERE 710L Backhoe
Backhoes
- Net Power 110 kW (148 hp) @ 2,244 rpm
- Max. Digging Depth: 5.26 m (17 ft. 3 in.)
- Operating Weight 11 607 kg (25588 lbs.)
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 4045HT084 |
| DRIVELINE - Displacement, ltr (Inches�) | 4.5 (276) |
| DRIVELINE - Rated Speed, rpm | 2240 |
| DRIVELINE - Engine Output - Net, kW (hp) | 110 (148) |
| DRIVELINE - Transmission Type | Power Shift |
| DRIVELINE - Service Brake Type | Wet Disc |
| DRIVELINE - Service Brake Actuation | Hydraulic |
| DIMENSIONS - Max length with std. Stick, mm (ft/in) | 8230 (27 ft ) |
| DIMENSIONS - Height over std Stick, mm (ft/in) | 4450 (14 ft 7 in) |
| DIMENSIONS - Height over ext Stick, mm (ft/in) | 4490 (14 ft 9 in) |
| DIMENSIONS - Width over tires, mm (ft/in) | 2290 (7 ft 6 in) |
| DIMENSIONS - Wheelbase - 4WD, mm (ft/in) | 2550 (8 ft 4 in) |
| DIMENSIONS - Ground Clearance, mm (inches) | 356 (14) |
| DIMENSIONS - Width - General Purpose Shovel, mm (ft/in) | 2464 (8 ft 1 in) |
| DIMENSIONS - Bucket Rotation - Position 1, � | 190 |
| DIMENSIONS - Shovel Pin Height - General Purpose, mm (ft/in) | 3730 (12 ft 3 in) |
| DIMENSIONS - Dump Height - General Purpose, mm (ft/in) | 2890 (9 ft 6 in) |
| DIMENSIONS - Dump Reach - General Purpose, mm (inches) | 768 (30.2) |
| DIMENSIONS - Digging Depth - General Purpose, mm (inches) | 157 (6.2) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 185.5 (49) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 50.1 (13.2) |
| CAPACITIES - Rear Axle, ltr (gallons (US)) | 25 (6.6) |
| CAPACITIES - 4WD Front Axle, ltr (gallons (US)) | 15 (3.975) |
| CAPACITIES - Shovel Capacity - Standard General Purpose, m� (yd�) | 1.24 (1.62) |
| CAPACITIES - Battery Voltage, V | 12 |
| CAPACITIES - Bucket Tearout - Non-Extending Dipper, kN (lbf) | 84.3 (18959) |
| CAPACITIES - Stick tearout, kN (lbf) | 57.4 (12910) |
| CAPACITIES - Boom Lift - Maximum Reach - Non-Extending Dipper, kg (lbs) | 1734 (3823) |
| CAPACITIES - Shovel Breakout - General Purpose, kN (lbf) | 73.6 (16539) |
| CAPACITIES - Lift To Full Height - General Purpose Shovel, kg (lbs) | 4475 (9866) |
| CAPACITIES - Pump | Axial Piston Pump |
| CAPACITIES - Pump Flow, lt/min (gallons (US) / min) | 197 (52) |
| WEIGHTS - Operating Weight, kg (lbs) | 11607 (25588) |
| WEIGHTS - Weight - 4WD, GP, std Stick, kg (lbs) | 11607 (25588) |
Featured List
- Engine Power: 110 kW (148 hp) at 2,244 rpm
- Standard Dig Depth: 5.26 m (17 ft. 3 in.)
- Operating Weight: 12,262 kg (27,033 lb)
Featured Content
Ride control, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain.
True four-wheel drive on command. Standard limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive “on the fly” with the touch of a button on the new loader control.
Economy mode on our FT4/Stage IV PowerTech Plus diesel engine saves fuel by configuring separately between loader and backhoe functions.
Standard limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive “on the fly with the touch of a button on the new loader control.
PowerShift™ transmission provides on-the-go seemingly clutchless gear changes, for the operator.
Redesigned pilot towers provide more legroom and additional space for transitioning between loader and backhoe operation.
Multi-function lever, fingertip electrohydraulic lever control, and palm-on-top loader-control grip makes operation even easier.
Same-side, ground-level service points help speed daily checks and fills. Other common-sense features such as quick-change filters, extended service intervals, simple-to-read sight gauges, and easy-access grease zerks help increase uptime and lower daily operating costs.
Machine-security system with touchpad passcode helps prevent unauthorized operation.
