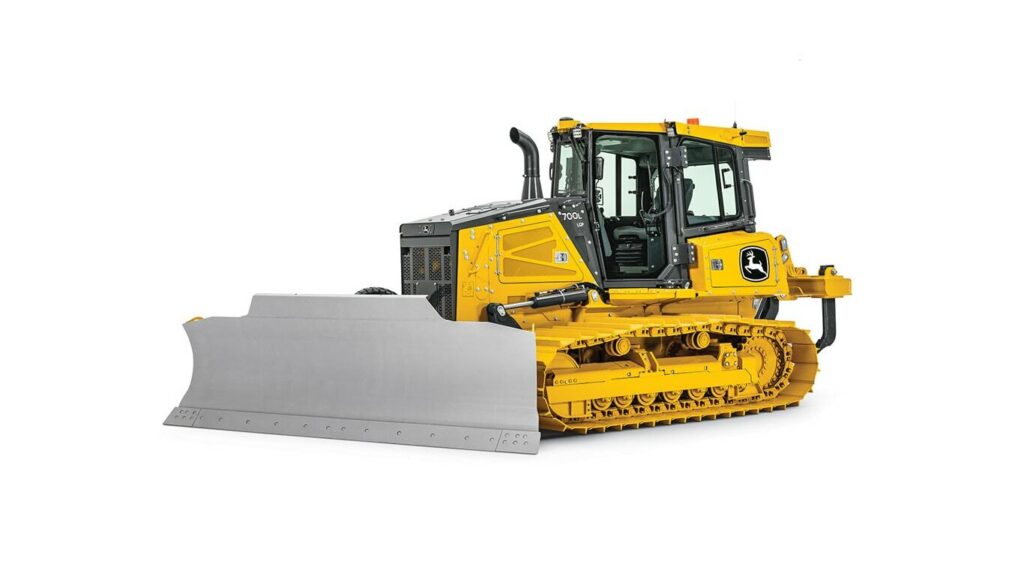

JOHN DEERE 700L Crawler Dozer
Construction
- Net Power: 101 kW (135 hp) at 1,800 rpm
- Operating Weight: 14 016-14 555 kg (30,900-32,088 lb.)
- Track on Ground: 2615 mm (103 in.)
Select a category to view specifications (or view all).
| DIMENSIONS - Track Gauge, mm (ft/in) | 1981 (6 ft 6 in) |
|---|---|
| DRIVELINE - Rated Speed, rpm | 1800 |
| DIMENSIONS - Blade - Dig Depth, mm (inches) | 536 (21) |
| DIMENSIONS - Steering - Differential | No |
| DRIVELINE - Speeds Mode 1 - Forward | 1 |
| DIMENSIONS - Blade - Width, mm (ft/in) | 3077 (10 ft 1 in) |
| DIMENSIONS - Ground Clearance, mm (inches) | 387 (15.2) |
| DIMENSIONS - Height - Max, mm (ft/in) | 3138 (10 ft 4 in) |
| DRIVELINE - Displacement, ltr (Inches³) | 6.8 (414) |
| CAPACITIES - Blade - Capacity, m³ (yd³) | 3.6 (4.8) |
| DRIVELINE - Engine Output - Net, kW (hp) | 101 (135) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 262 (69.2) |
| DRIVELINE - Final Drive | Triple Reduction |
| DRIVELINE - Engine Manufacturer | John Deere |
| DIMENSIONS - Length - PAT Blade Straight, mm (ft/in) | 4906 (16 ft 1 in) |
| DRIVELINE - Engine Model | PowerTech PVS 6068 |
| DIMENSIONS - Track Length - On Ground, mm (ft/in) | 2615 (8 ft 7 in) |
| DIMENSIONS - Blade - Tilt, mm (ft/in) | 426 (1 ft 5 in) |
| DRIVELINE - Transmission Type | Hydrostatic |
| DRIVELINE - Speeds Mode 1 - Reverse | 1 |
| DRIVELINE - Ground Contact Area, cm² (Inches²) | 44201 (6851) |
| DRIVELINE - Track Rollers | 7 |
| DRIVELINE - Shoe - Type | Single Grouser - Moderate Service |
| DRIVELINE - Number Of Shoes | 39 |
| DRIVELINE - Shoe - Pitch, mm (inches) | 191 (7.5) |
| PERFORMANCE - Ground Bearing Pressure, kPa (PSI) | 32.1 (4.66) |
| PERFORMANCE - Speed - Reverse Maximum, kph (mph) | 8.9 (5.5) |
| PERFORMANCE - Speed - Forward Maximum, kph (mph) | 8.9 (5.5) |
| PERFORMANCE - Implement Pump - Type | Gear |
| PERFORMANCE - Implement Pump - Flow, lt/min (gallons (US) / min) | 95 (25) |
| PERFORMANCE - Implement Pump - Pressure, bar (PSI) | 220.63 (3200) |
| WEIGHTS - Operating Weight, kg (lbs) | 14489 (31943) |
Featured List
- Operating Weight: 14 016-14 555 kg (30,900-32,088 lb.)
- Engine Net Power: 101 kW (135 hp) at 1,800 rpm
- Track on Ground: 2615 mm (103 in.)
- Blade Width Range: -
Featured Content
- 6 cylinder, John Deere PowerTechTM PVS 6068 6.8L engine
- EPA Final Tier 4/EU Stage V
- Delivers highest horsepower in its size class
- Standard EH controls make it easy to add the grade-control system of your choice
- Larger, quieter cab than its predecessor with a 50% reduction in noise
- Wide expanse of glass, low streamlined hood and larger doors provide better visibility to the blade
- Optional premium leather-accented heated/ventilated seat feature pan tilt, pan extend, lumber adjustment, and air suspension with full damping capability
- Optional automatic temperature control (ATC) system
- Optional rearview camera
- Enlarged service doors provide quick access to conveniently located checkpoints and filters
- Routing of the electrical and hydraulic systems is simplified to nearly eliminate wear points
- Extended hydraulic and hydrostatic oil-change intervals from 2,000 to 4,000 hours help further minimize maintenance and expense
- Welded-on spill sheet provides additional blade capacity to push larger loads
- Standard Eco mode automatically adjusts engine power and transmission settings for fuel optimization
- Optional LED lighting package for when you need to work before or after daylight points
SmartGrade ™ and SmartGrade-ready including Slope Control options help operators achieve finish grades with less effort and fewer corrections
- Optional SmartGrade-ready including Slope Control provides simple-to-use grade control that allows operators to set and hold a grade or slope through terrain changes
- Optional SmartGrade 3D grade control combines powerful mastless technology with our track load-sensing system
