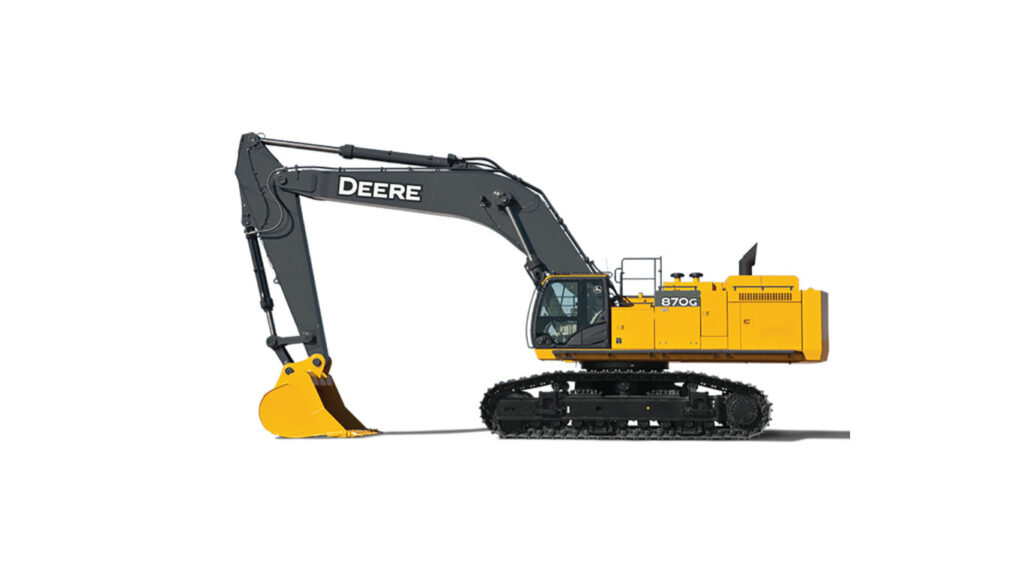

John Deere 870G LC

870G LC Excavator

John Deere
Large Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 382 kW (512 hp)
Operating Weight: 85,600 kg (188,716 lb.)
Max. Digging Depth: 9.57 m (31 ft. 5 in.)

Net Rated Power 382 kW (512 hp)
Max Digging Depth 9.57 m (31 ft. 5 in.)
Operating Weight 85,600 kg (188,716 lb.)

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	1110 (293)
Hydraulic Tank, ltr (gallons (US))	500 (132.1)
Number Of Batteries	2
Voltage, V	24

DIMENSIONS

Transport Length Mono Boom, mm (ft/in)	14800 (48 ft 7 in)
Transport Height - Maximum, mm (ft/in)	5760 (18 ft 11 in)
Overall Width, mm (ft/in)	3730 (12 ft 3 in)
Track Length On Ground, mm (ft/in)	5110 (16 ft 9 in)
Undercarriage Overall Length, mm (ft/in)	6360 (20 ft 10 in)
Tailswing Radius, mm (ft/in)	4540 (14 ft 11 in)
Ground Clearance, mm (inches)	890 (35)
Digging Reach - Mono Boom, mm (ft/in)	14910 (48 ft 11 in)
Ground Level Reach - Mono Boom, mm (ft/in)	14640 (48 ft )
Dig Height - Mono Boom, mm (ft/in)	13820 (45 ft 4 in)
Dump Height - Mono Boom, mm (ft/in)	9740 (31 ft 11 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	9460 (31 ft )
Dig Depth - Mono Boom, mm (ft/in)	9570 (31 ft 5 in)
Standard Dipper, mm (ft/in)	4400 (14 ft 5 in)

DRIVELINE

Emission Rating	Tier 4
Engine Manufacturer	Isuzu
Number Of Cylinders (Per Engine)	6
Displacement, ltr (Inches�)	15.7 (957)
Rated speed, rpm	1800
Engine Output - Net, kW (hp)	382 (512)
Number Of Carrier Rollers - Each Side	3
Number Of Track Rollers - Each Side	9
Track Shoe Width, mm (inches)	900 (36)

PERFORMANCE

Ground Bearing Pressure, kPa (PSI)	84.8 (12)
Slew Speed, rpm	7.8
Slew Torque, kNm (lbf / ft)	269 (198404)
Travel Speed - High, kph (mph)	4.7 (2.9)
Tractive Force, kN (lbf)	560 (125850)
Dipper Tearout, kN (lbf)	280 (62946)
Bucket Breakout, kN (lbf)	399 (89699)
Gradeability, %	70
End lift - 7.5m Reach, kg (lbs)	25380 (54870) *
Side lift - 7.5m Reach, kg (lbs)	19040 (40980)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)	1132 (300)
Bucket Pressure, bar (PSI)	319 (4627)
Boost Pressure, bar (PSI)	343 (4975)

WEIGHTS

Operating Weight, kg (lbs)

85600 (188716)
