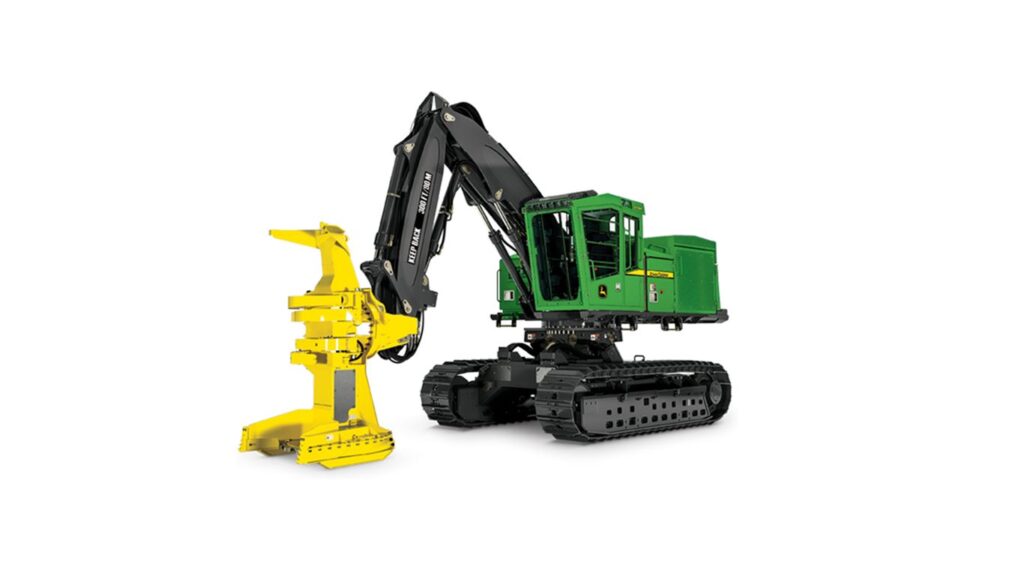

JOHN DEERE 909M Tracked Feller Buncher
Feller Bunchers
- Up to 30% more cutting swath
- Peak Power: 224 kW (300 hp) @ 1,900 rpm
- Max. Boom Reach: 9.82 m (32 ft. 3 in.)
- Tractive Effort: 322 kN (72,300 lbf)
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | 6090H Powertech Plus |
| DRIVELINE - Emission Rating | Tier 3 |
| DRIVELINE - Rated Speed, rpm | 2000 |
| DRIVELINE - Engine Output, kW (hp) | 213 (286) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1270 (937) @ 1500rpm |
| DRIVELINE - Carrier Rollers - Each Side | 2 |
| DRIVELINE - Track Rollers - Each Side | 10 |
| DRIVELINE - Track Shoe Width, mm (inches) | 610 (24) |
| DRIVELINE - Service Brake Type | Hydraulic |
| DIMENSIONS - Height Over Cab, mm (ft/in) | 4030 (13 ft 3 in) |
| DIMENSIONS - Overall Width, mm (ft/in) | 3330 (10 ft 11 in) |
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 3810 (12 ft 6 in) |
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 3050 (10 ft ) |
| DIMENSIONS - Ground Clearance, mm (inches) | 747 (29) |
| DIMENSIONS - Superstructure Width, mm (ft/in) | 3200 (10 ft 6 in) |
| DIMENSIONS - Track Gauge, mm (ft/in) | 2720 (8 ft 11 in) |
| DIMENSIONS - Cab Leveling tilt (Forward), � | 26 |
| DIMENSIONS - Cab Leveling tilt (Rear), � | 7 |
| DIMENSIONS - Cab Leveling tilt (Side), � � | 7 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 1080 (285) |
| CAPACITIES - Alternator Output, Amp | 100 |
| PERFORMANCE - Travel Speed, kph (mph) | 4.2 (2.6) |
| PERFORMANCE - Tractive Force, kN (lbf) | 322 (72300) |
| PERFORMANCE - Lift Capacity - Maximum Reach, kg (lbs) | 5890 (12990) |
| PERFORMANCE - Reference Harvesting Head | FR22B |
| PERFORMANCE - Felling Diameter, mm (inches) | 558.8 (22) |
| PERFORMANCE - Reference Head Saw Type | Disc |
| PERFORMANCE - Reference Head Type | Felling |
| PERFORMANCE - Cutting Radius - Maximum, mm (ft/in) | 8880 (29 ft 1 in) |
| PERFORMANCE - Cutting Radius - Minimum, mm (ft/in) | 4870 (15 ft 11 in) |
| PERFORMANCE - Cutting Swath Horizontal, mm (ft/in) | 4010 (13 ft 2 in) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump Type | Var. axial-piston |
| PERFORMANCE - Pump Flow, lt/min (gallons (US) / min) | 494 (131) |
| WEIGHTS - Operating Weight, kg (lbs) | 36660 (80840) |
Featured Content
The 900M-Series maintain the improvements introduced on the 900K-Series machines, including a 30-percent increase in cutting swath, from 3 to 4 m (10 to 13 ft.) on the standard boom.
Longer, wider undercarriage maximizes stability no matter the terrain.
- Easy access to service components helps ensure daily checks and preventative maintenance get done on schedule.
- Optional undercarriage-mounted toolbox provides convenient storage for tools, additional saw bars, and other spare parts.
RCS can be tailored to individual skill levels and specific harvesting conditions. Multiple RCS settings can be saved according to individual operator preferences. Novices may prefer a slower, more methodical pace, while highly skilled pros may want faster response.
