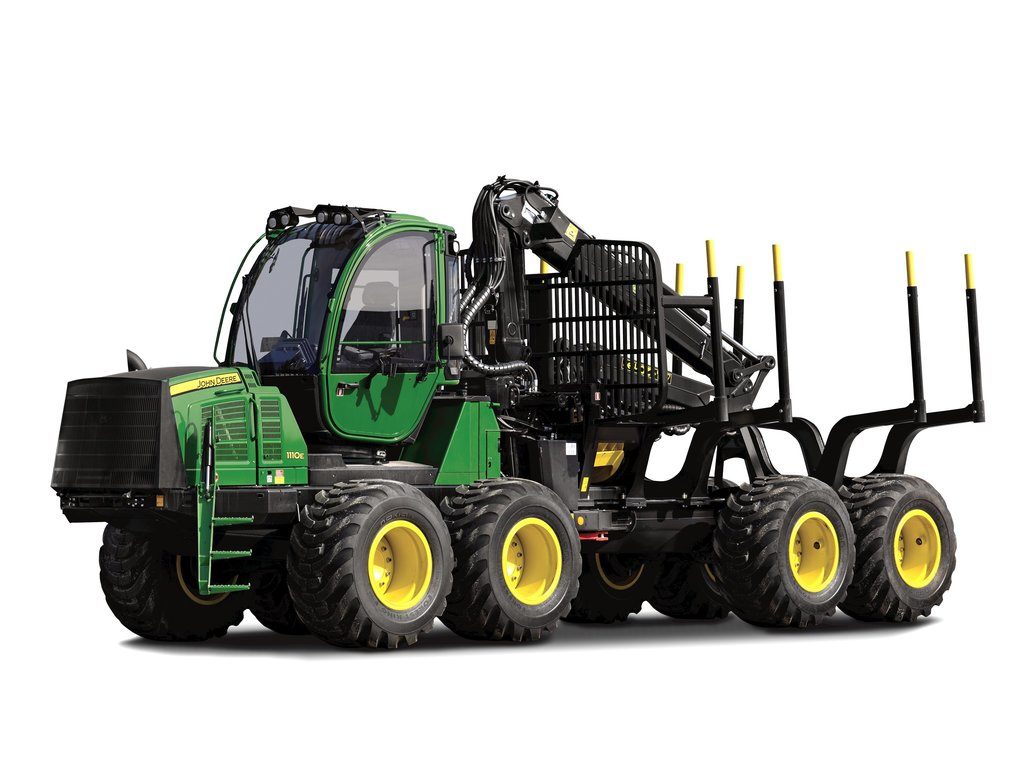

JOHN DEERE 1110E Forwarder
Forestry Equipment
- Boom Reach 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) /10.0 m (32.8 ft.)
- Tractive Effort 160 kN (35,970 lb.)
- LoadRating 12 tonne (13.2 ton)
- EnginePower 136 kW (183 hp) @ 1,600–1,900 rpm
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 6068 |
| DRIVELINE - Emission Rating | Tier 3 |
| DRIVELINE - Displacement, ltr (Inches�) | 6.8 (415) |
| DRIVELINE - Engine Output - Net, kW (hp) | 136 (183) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 780 (575) @ 1400 rpm |
| DRIVELINE - Drive Configuration | 8 x 8 |
| DRIVELINE - Transmission | Hydrostatic-Mechanical |
| DRIVELINE - Number Of Axles | 2 |
| DRIVELINE - Std tire size front | 34 - 14 |
| DRIVELINE - Std tire size rear | 26.5 - 20 |
| DIMENSIONS - Base Carrier Length, mm (inches) | 9570 (377) |
| DIMENSIONS - Transport Height, mm (inches) | 3800 (150) |
| DIMENSIONS - Width, mm (inches) | 2700 (106) |
| DIMENSIONS - Wheelbase, mm (inches) | 5100 (200) |
| DIMENSIONS - Ground Clearance, mm (inches) | 660 (25.9) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 10 (32 ft 10 in) |
| DIMENSIONS - Load Length, mm (inches) | 4500 (177) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 167 (44) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 161 (42.5) |
| CAPACITIES - Alternator Output, Amp | 140 |
| PERFORMANCE - Lifting Moment - Standard Crane, kNm (lbf / ft) | 102 (75235) |
| PERFORMANCE - Load Capacity, tonnes (tons (short)) | 12 (13.2) |
| PERFORMANCE - Travel Speed, kph (mph) | 23 (14.3) |
| PERFORMANCE - Tractive Force, kN (lbf) | 160 (35970) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump Capacity, cm� (Inches�) | 140 (8.5) |
| WEIGHTS - Operating Weight, kg (lbs) | 17300 (38140) |
Featured Content
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
TimberMatic™ F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.
Optional Intelligent Boom Control (IBC) enables faster cycle times and more precise operation. Smooth Boom Control (SBC) available as a standard feature.
CF5 boom provides power to handle large logs. Balancing bogie axles carry heavy loads over long distances
High power and pulling force for up to a 12-ton load make this midsize forwarder ideal for late thinning and clear felling.
