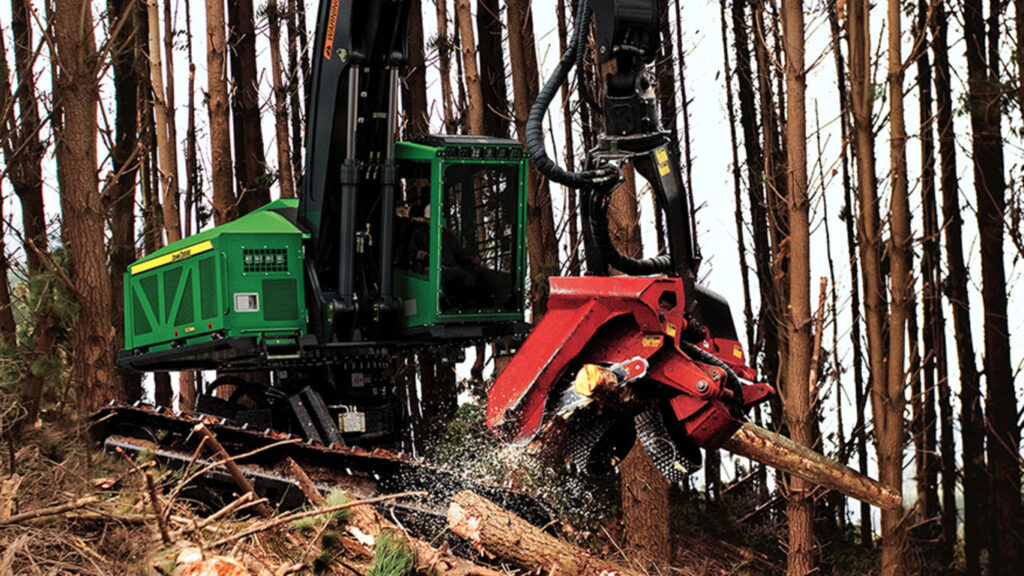

JOHN DEERE 909MH Tracked Harvester
Forestry Equipment
- Peak Power: 224 kW (300 hp) @ 1,900 rpm
- Max. Boom Reach: 10.34 m (33 ft. 11 in.)
- Tractive Effort: 322 kN (72,300 lbf)
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | 6090H |
| DRIVELINE - Displacement, ltr (Inches³) | 9 (549) |
| DRIVELINE - Rated Speed, rpm | 2000 |
| DRIVELINE - Engine Output, kW (hp) | 213 (286) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1270 (937) |
| DRIVELINE - Carrier Rollers - Each Side | 2 |
| DRIVELINE - Track Rollers - Each Side | 10 |
| DRIVELINE - Track Shoe Width, mm (inches) | 610 (24) |
| DIMENSIONS - Height Over Cab, mm (ft/in) | 4030 (13 ft 3 in) |
| DIMENSIONS - Width, mm (ft/in) | 3330 (10 ft 11 in) |
| DIMENSIONS - Overall Track Length, mm (ft/in) | 4900 (16 ft 1 in) |
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 3810 (12 ft 6 in) |
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 3050 (10 ft ) |
| DIMENSIONS - Ground Clearance, mm (ft/in) | 747 (2 ft 5 in) |
| DIMENSIONS - Superstructure Width, mm (ft/in) | 3200 (10 ft 6 in) |
| DIMENSIONS - Slewing Angle, ° | 360 |
| DIMENSIONS - Cab Leveling tilt (Forward), ° | 26 |
| DIMENSIONS - Cab Leveling tilt (Rear), ° | 7 |
| DIMENSIONS - Cab Leveling tilt (Side), ± ° | 7 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 1080 (285) |
| CAPACITIES - Number of Alternators | 1 |
| CAPACITIES - Alternator Output, Amp | 100 |
| PERFORMANCE - Slew Speed, rpm | 4.8 |
| PERFORMANCE - Travel Speed, kph (mph) | 4.2 (2.6) |
| PERFORMANCE - Reference Harvesting Head | Waratah HTH624C |
| PERFORMANCE - Felling Diameter, mm (inches) | 810 (32) |
| PERFORMANCE - Delimbing Diameter, mm (inches) | 760 (30) |
| PERFORMANCE - Delimbing Feed Rate, m/sec (ft/sec) | 3.7 (12.1) |
| PERFORMANCE - Cutting Radius - Maximum, mm (ft/in) | 9120 (29 ft 11 in) |
| PERFORMANCE - Cutting Radius - Minimum, mm (ft/in) | 3680 (12 ft 1 in) |
| PERFORMANCE - Cutting Swath Horizontal, mm (ft/in) | 5440 (17 ft 10 in) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Main Pump | Var. piston |
| PERFORMANCE - Pump Flow, lt/min (gallons (US) / min) | 494 (131) |
| WEIGHTS - Operating Weight, kg (lbs) | 39876 (87970) |
| WEIGHTS - Weight - With Reference Head, kg (lbs) | 39876 (87970) |
| WEIGHTS - Weight - Without Reference Head, kg (lbs) | 36490 (80460) |
Featured Content
The 900 MH-Series maintain the improvements introduced on the 900K-Series machines, by eight percent, to almost a foot, on the harvester boom. For more cuts with less machine movement.
Swing torque has increased up to 13 percent on the MH-Series Tracked Harvesters, providing more power to boost productivity.
Longer, wider undercarriage maximizes stability no matter the terrain.
RCS can be tailored to individual skill levels and specific harvesting conditions. Multiple RCS settings can be saved according to individual operator preferences. Novices may prefer a slower, more methodical pace, while highly skilled pros may want faster response.
