John Deere 1270G 8W

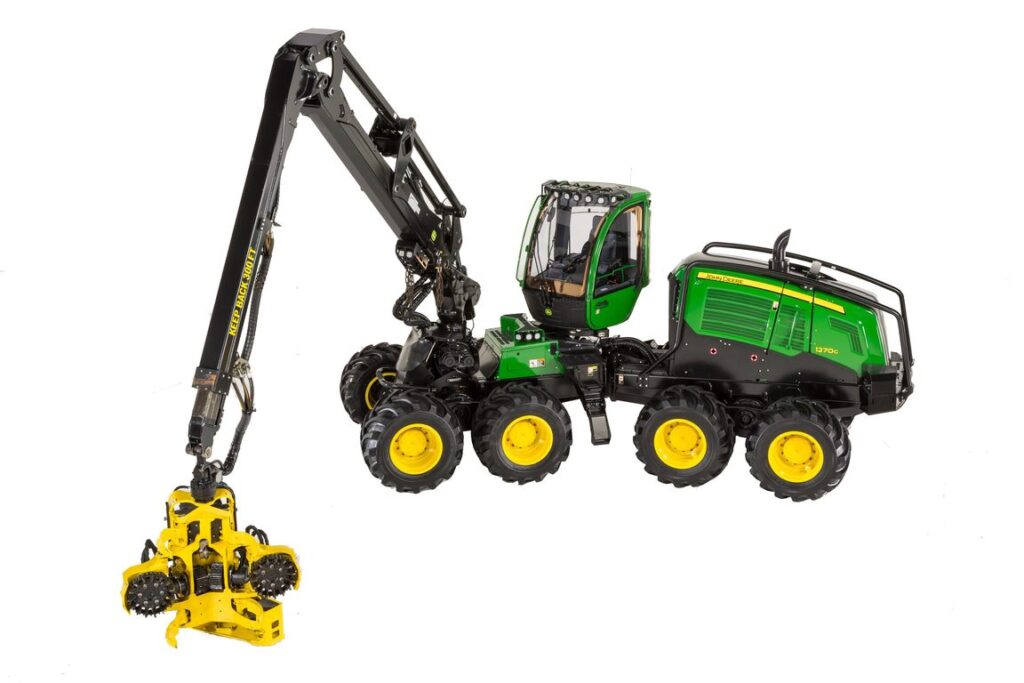

1270G 8W Wheeled Harvester

John Deere
Wheeled Harvesters

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Work pump: 190 plus 180 cm³ (12 plus 11 cu. in.)
Boom reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)
Engine power: 190 kW (255 hp) @ 1,900 rpm

Work Pump 190 plus 180 cm³ (12 plus 11 cu. in.)
Boom Reach 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)
Engine Power 190 kW (255 hp) at 1,900 rpm
Tractive Force 210 kN (47,208 lb.)

+ Expand All
- Close All

Twin-Pump Hydraulics
- Twin-pump hydraulic system that delivers simultaneous power to the boom and harvester head.
Intelligent control
- Processing Power Control (PPC) lowers operating costs and increases productivity by five to 15 percent by balancing processing power and fuel economy in a variety of logging applications.
Agile and productive
- Choose from compact six- or eight-wheeled options.

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	450 (119)
Hydraulic Tank, ltr (gallons (US))	300 (79)
Number Of Alternators	1
Reference Harvesting Head	H480C
Felling Diameter, mm (inches)	710 (28)
Delimbing Diameter, mm (inches)	680 (26.8)
Delimbing Feed Rate, m/sec (ft/sec)	5.3 (17.4)
Delimbing Feed Force, kN (lbf)	30 (6744)
Travel Speed, kph (mph)	22 (13.7)
System Voltage, V	24
Pump Capacity, cm³ (Inches³)	190 (12)

DESCRIPTION

Crane Model

CH7

DIMENSIONS

Base Carrier Length, mm (inches)	7697 (303)
Transport Height, mm (inches)	3810 (150)
Overall Width, mm (inches)	2746 (108.12)
Wheelbase, mm (inches)	4170 (164.16)
Ground Clearance, mm (inches)	654 (25.7)
Horizontal Reach, m (ft/in)	8.6 (28 ft 2 in)

DRIVELINE

Engine Manufacturer	John Deere
Engine Model	6090HTJ
Emission Rating	Tier 3
Rated Speed, rpm	1900
Engine Output, kW (hp)	190 (255)
Engine Torque, Nm (lbf / ft)	1250 (922)
Drive Configuration	6 x 6
Transmission Type	Hydrostatic-Mechanical
Std tire size front	26.5
Std tire size rear	34

WEIGHTS

Operating Weight, kg (lbs)	22200 (48943)
Weight - With Reference Head, kg (lbs)	22200 (48943)
Weight - Without Reference Head, kg (lbs)	20960 (46209)
