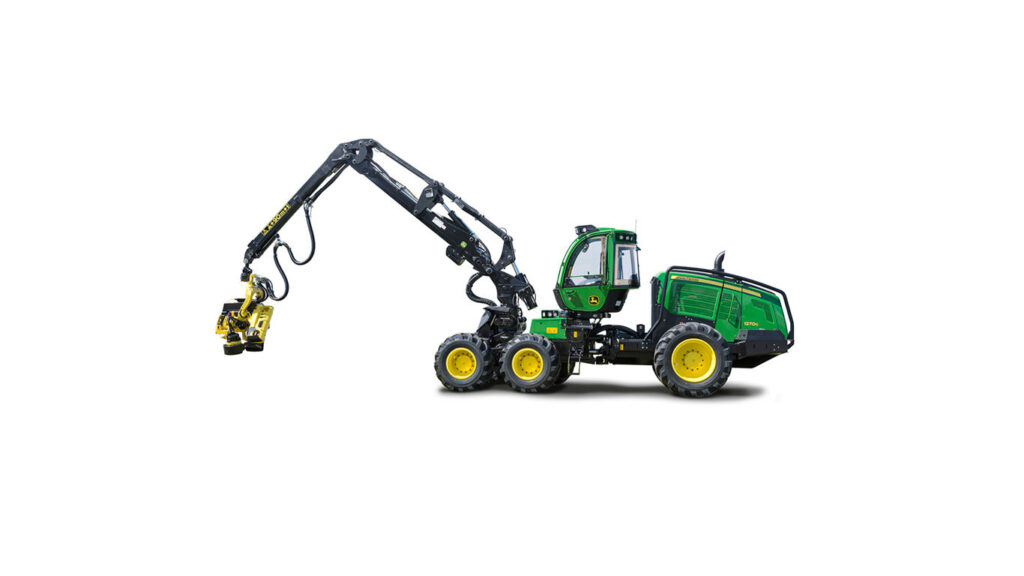

JOHN DEERE 1270G Wheeled Harvester
Forestry Equipment
- Work pump: 190 plus 180 cm³ (12 plus 11 cu. in.)
- Boom reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)
- Engine power: 190 kW (255 hp) @ 1,900 rpm
Select a category to view specifications (or view all).
| DESCRIPTION - Crane Model | CH7 |
|---|---|
| DRIVELINE - Engine Manufacturer | John Deere |
| DRIVELINE - Engine Model | 6090HTJ |
| DRIVELINE - Emission Rating | Tier 3 |
| DRIVELINE - Rated Speed, rpm | 1900 |
| DRIVELINE - Engine Output, kW (hp) | 190 (255) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1250 (922) |
| DRIVELINE - Drive Configuration | 6 x 6 |
| DRIVELINE - Transmission Type | Hydrostatic-Mechanical |
| DRIVELINE - Std tire size front | 26.5 |
| DRIVELINE - Std tire size rear | 34 |
| DIMENSIONS - Base Carrier Length, mm (inches) | 7697 (303) |
| DIMENSIONS - Transport Height, mm (inches) | 3810 (150) |
| DIMENSIONS - Overall Width, mm (inches) | 2746 (108.12) |
| DIMENSIONS - Wheelbase, mm (inches) | 4170 (164.16) |
| DIMENSIONS - Ground Clearance, mm (inches) | 654 (25.7) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 8.6 (28 ft 2 in) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 450 (119) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 300 (79) |
| CAPACITIES - Number Of Alternators | 1 |
| CAPACITIES - Reference Harvesting Head | H480C |
| CAPACITIES - Felling Diameter, mm (inches) | 710 (28) |
| CAPACITIES - Delimbing Diameter, mm (inches) | 680 (26.8) |
| CAPACITIES - Delimbing Feed Rate, m/sec (ft/sec) | 5.3 (17.4) |
| CAPACITIES - Delimbing Feed Force, kN (lbf) | 30 (6744) |
| CAPACITIES - Travel Speed, kph (mph) | 22 (13.7) |
| CAPACITIES - System Voltage, V | 24 |
| CAPACITIES - Pump Capacity, cm³ (Inches³) | 190 (12) |
| WEIGHTS - Operating Weight, kg (lbs) | 22200 (48943) |
| WEIGHTS - Weight - With Reference Head, kg (lbs) | 22200 (48943) |
| WEIGHTS - Weight - Without Reference Head, kg (lbs) | 20960 (46209) |
Featured List
- Work Pump: 190 plus 180 cm³ (12 plus 11 cu. in.)
- Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)
- Engine Power: 190 kW (255 hp) at 1,900 rpm
- Tractive Force: 180 kN (40,464 lb.)
Featured Content
- Twin-pump hydraulic system that delivers simultaneous power to the boom and harvester head.
- Processing Power Control (PPC) lowers operating costs and increases productivity by five to 15 percent by balancing processing power and fuel economy in a variety of logging applications.
- Choose from compact six- or eight-wheeled options.
