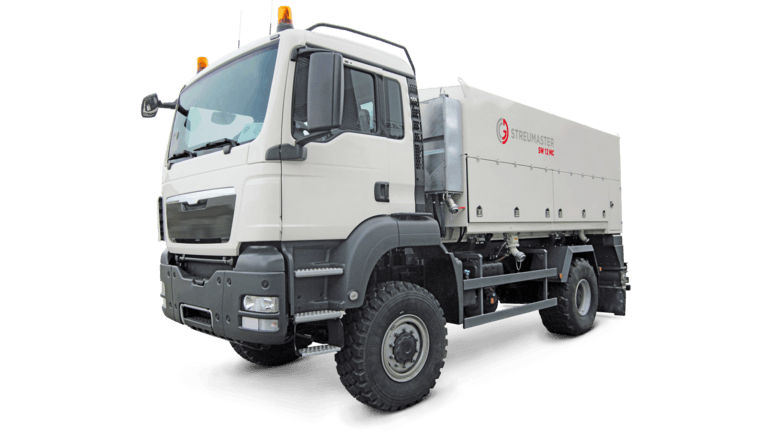

WIRTGEN SW 12 MC
Binding Agent Spreaders
Equipment Specifications
| SPECIFICATIONS - Container capacity | 423.8 cu ft |
|---|---|
| SPECIFICATIONS - Built-up empty weight | 9,260 lbs |
| SPECIFICATIONS - Working width/partial spreading widths | 7 ft 9 in ( 2 ft 8 in / 2 ft 4 in / 2 ft 8 in) |
| SPECIFICATIONS - Minimum speed of the truck’s auxiliary drive | 500 RPM |
| SPECIFICATIONS - Max. permissible speed of the truck’s auxiliary drive | 2,600 RPM |
| SPECIFICATIONS - Spread rate at 2 km/h | 0.02 – 1.5 gal / ft² |
Select a category to view specifications (or view all).
| SPECIFICATIONS - Required speed of the truck’s auxiliary drive for max. hydraulic power | 700 RPM |
|---|---|
| SPECIFICATIONS - Size of filling connector / filling hose | 3"/4"/5" |
| SPECIFICATIONS - Required torque of the truck’s auxiliary drive | 570 Nm |
| SPECIFICATIONS - Required power output of the truck’s auxiliary drive | 48 kW |
| SPECIFICATIONS - Required power output of the truck’s auxiliary drive | ? 40 kW |
| SPECIFICATIONS - Required speed of the truck’s auxiliary drive for max. hydraulic power | 800 RPM |
| SPECIFICATIONS - Required torque of the truck’s auxiliary drive | 400 Nm |
High-precision, highly efficient binder discharge
-
The MC series of binding agent spreaders are mounted on a carrier vehicle and are perfect for precise and computerized spreading of binding agents.
-
The fully automatic metering of the spreading quantity independent of the travel speed and the self-cleaning metering feeders ensure that the binding agent is spread uniformly and precisely.
-
The spreading unit in rotary design with separately controllable partial spreading widths delivers precise and high spreading performance.
-
A pneumatic filling device on both sides ensures that filling is fast and cost-effective.
-
Professional off-road and on-road use as a mobile binding agent spreader unit.
