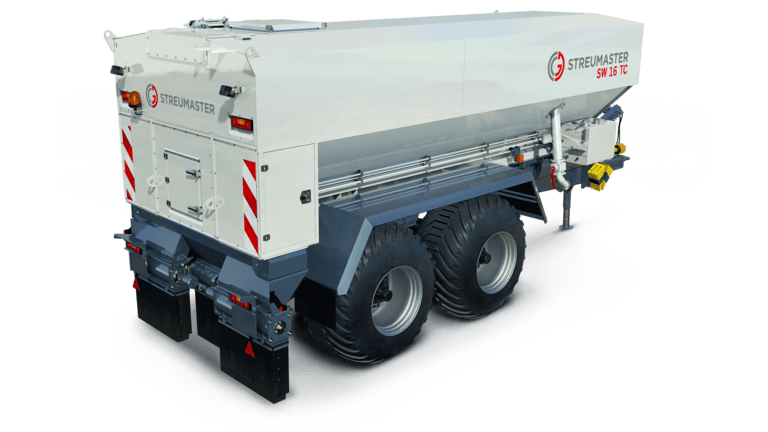

WIRTGEN SW 16 TC
Binding Agent Spreaders
Equipment Specifications
| SPECIFICATIONS - Tongue load at towing gear | 6,614 lbs |
|---|---|
| SPECIFICATIONS - Required driveshaft speed | 800 RPM |
| SPECIFICATIONS - Working width / Partial widths | 7 ft 9 in mm / 3 x 2 ft 8 in |
| SPECIFICATIONS - Container capacity | 565 cu ft |
| SPECIFICATIONS - Permissible total weight | 46,297 lbs |
| SPECIFICATIONS - Empty weight | 14,991 lbs |
Select a category to view specifications (or view all).
| SPECIFICATIONS - Spreading quantity at 1.2 mph | 0.02 – 1.5 gal / ft² |
|---|---|
| SPECIFICATIONS - Size of filling connector / filling hose | 3"/4"/5" |
| SPECIFICATIONS - Required engine power | >130 kW / 178 hp (all-wheel drive) |
Pinpoint precision, convincing performance
-
The TC series of binding agent spreaders are mounted on a single-axle or tandem trailer and can be towed by all common towing vehicles.
-
The fully automatic metering of the spreading quantity independent of the travel speed and the self-cleaning metering feeders ensure that the binding agent is spread uniformly and precisely.
-
The spreading unit in rotary design with separately controllable partial spreading widths delivers precise and high spreading performance.
-
A pneumatic filling device on both sides ensures that filling is fast and cost-effective.
