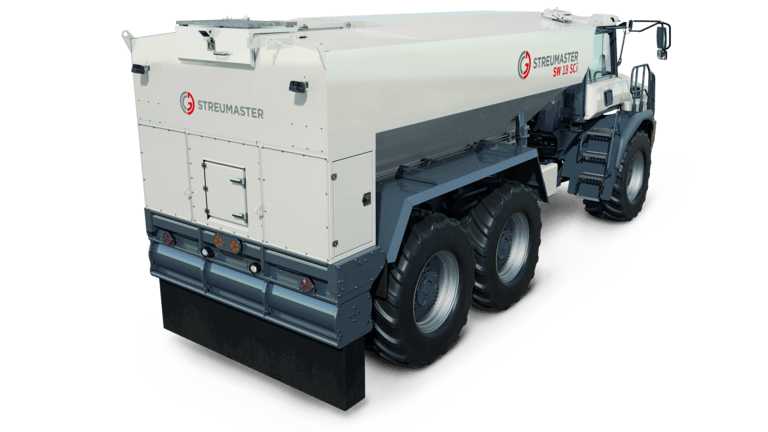

WIRTGEN SW 18 SCi
Binding Agent Spreaders
Equipment Specifications
| SPECIFICATIONS - Empty weight | 45,836 lbs |
|---|---|
| SPECIFICATIONS - Max. travel speed | 21.7 mph |
| SPECIFICATIONS - Working width / Partial widths | Standard: 7 ft 9 in / 2 ft 8 in | 2 ft 4 in | 2 ft 8 in Option: 9 ft 1 in / 3 ft | 3 ft | 3 ft |
| SPECIFICATIONS - Exhaust emissions category | EU Stage 4/US EPA Tier 4f |
| SPECIFICATIONS - Permissible total weight | 99,208 lbs |
| SPECIFICATIONS - Container capacity | 635.7 cu ft |
Select a category to view specifications (or view all).
| SPECIFICATIONS - Spreading quantity at 1.2 mph | 10 – 150 lbs / yd2 |
|---|---|
| SPECIFICATIONS - Displacement | 439.4 in³ |
| SPECIFICATIONS - Size of filling connector / filling hose | 3”/4”/5” |
Powerful and unstoppable in the field
-
The BELL dumper’s all-wheel drive guarantees optimum off-road mobility.
-
Thanks to the specially designed equipment, the carrier vehicle can easily handle particularly difficult ground conditions.
-
The fully automatic metering of the spreading quantity independent of the travel speed and the self-cleaning metering feeders ensure that the binding agent is spread uniformly and precisely.
-
The spreading unit in rotary design with separately controllable partial spreading widths delivers precise and high spreading performance.
