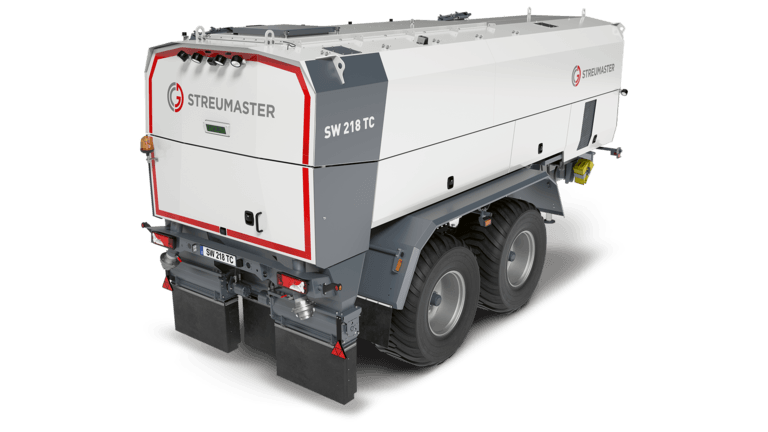

WIRTGEN SW 218 TC
Binding Agent Spreaders
Equipment Specifications
| SPECIFICATIONS - Tongue load at towing gear | 6,614 lbs |
|---|---|
| SPECIFICATIONS - Working width / Partial widths | 7 ft 9 in ( 2 ft 8 in / 2 ft 4 in / 2 ft 8 in) |
| SPECIFICATIONS - Required driveshaft speed | 1,000 RPM |
| SPECIFICATIONS - Empty weight | 14,771 lbs |
| SPECIFICATIONS - Container capacity | 636 cu ft |
| SPECIFICATIONS - Permissible total weight | 46,297 lbs |
Select a category to view specifications (or view all).
| SPECIFICATIONS - Required engine power | > 180 kW / 247 hp (all-wheel drive) |
|---|---|
| SPECIFICATIONS - Size of filling connector / filling hose | 4" |
| SPECIFICATIONS - Spread rate at 2 km/h (DN 410-17 spreading unit) | 10 – 150 lbs / yd2 |
| SPECIFICATIONS - Spread rate at 2 km/h (DN 230-10 spreading unit) | 3 – 25 lbs / yd2 |
| SPECIFICATIONS - Spread rate at 2 km/h (DN 230-20 spreading unit) | 8 – 100 lbs / yd2 |
Precise and powerful binding agent spreading
-
STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilization and for spreading small quantities of binding agents with maximum precision during cold recycling.
-
The TC series of binding agent spreaders are available as single-axle and tandem trailers and can be towed by tractors with an engine output of either approx. 130 kW / 178 hp / 180 PS or approx. 180 KW / 247 hp / 250 PS (for single-axle or tandem trailers, respectively).
-
With a maximum spreading width of 2,360 mm, the models in the TC and MC series are capable of spreading quantities of up to 60 l / m².
-
In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.
