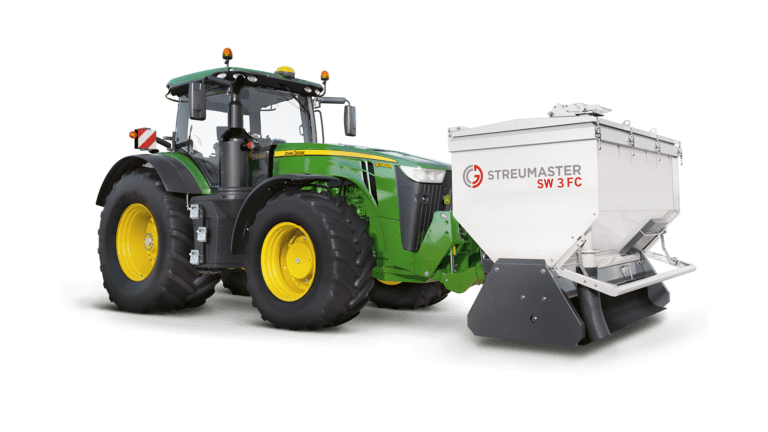

WIRTGEN SW 3 FC
Binding Agent Spreaders
Compact design, versatile application
-
In combination with a WIRTGEN tractor-towed stabilizer, the SW 3 FC is the ideal solution for small construction sites.
-
The standardized three-point hitch is suitable for mounting the spreader to the rear of all common tractors.
-
The C series’ self-cleaning metering feeders offer outstanding spreading accuracy.
-
Operator comfort and performance of the SW 3 FC are further enhanced by the automatic spread rate control system and the fill level indicator.
Select a category to view specifications (or view all).
| SPECIFICATIONS - Working width / Partial widths | 8 ft 1 in / 3 x 2 ft 8 in |
|---|---|
| SPECIFICATIONS - Max. permissible hydraulic flow rate | 19.8 |
| SPECIFICATIONS - Required hydraulic power | 13.2 gal / min at 2,610.7 psi |
| SPECIFICATIONS - Power lift | Three-point category 2 DIN/ISO 730-1 |
| SPECIFICATIONS - Container capacity | 105.9 cu ft |
| SPECIFICATIONS - Own weight | 2,755 lbs |
| SPECIFICATIONS - Spreading quantity at 0.6 mph | 0.02 - 1.2 gal / ft² |
| SPECIFICATIONS - Size of filling connector / filling hose | 3"/3" |
