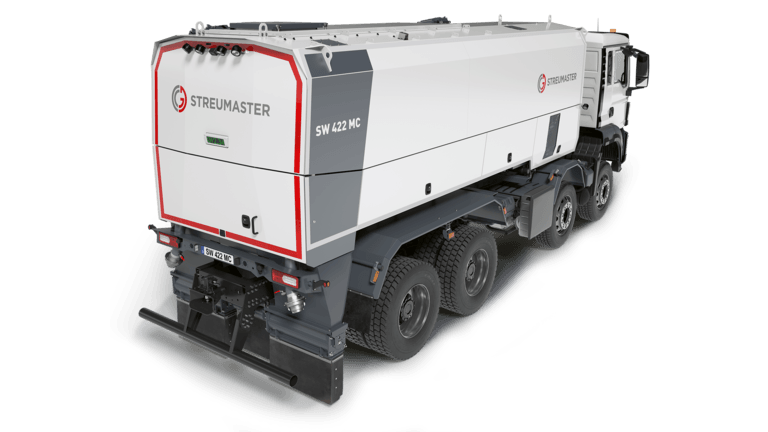

Wirtgen SW 422 MC

SW 422 MC

  • Wirtgen
  • Binding Agent Spreaders

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote

Precise and powerful binding agent spreading

  • STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilization and for spreading small quantities of binding agents with maximum precision during cold recycling.
  • The MC series of mobile binding agent spreaders are mounted on a carrier vehicle and are therefore perfect for use in difficult off-road conditions.
  • With a maximum spreading width of 2,360 mm, the models in the TC and MC series are capable of spreading quantities of up to 60 l / m².
  • In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.

SPECIFICATIONS

Built-up empty weight 11,023 lbs
Required torque of auxiliary drive 400 Nm
Container capacity 777 cu ft
Working width / Partial widths 7 ft 9 in ( 2 ft 8 in / 2 ft 4 in / 2 ft 8 in)
Spread rate at 2 km/h (DN 230-10 spreading unit)  3 – 25 lbs / yd2
Required speed of the truck’s auxiliary drive for max. hydraulic power 1,250 RPM
Required power output of the truck’s auxiliary drive 50 kW
Minimum speed of the truck’s auxiliary drive 500 RPM
Spread rate at 2 km/h (DN 230-20 spreading unit) 8 – 100 lbs / yd2
Size of filling connector / filling hose 4"
Spread rate at 2 km/h (DN 410-17 spreading unit) 10 – 150 lbs / yd2
Max. permissible speed of the truck’s auxiliary drive 2,300 RPM
