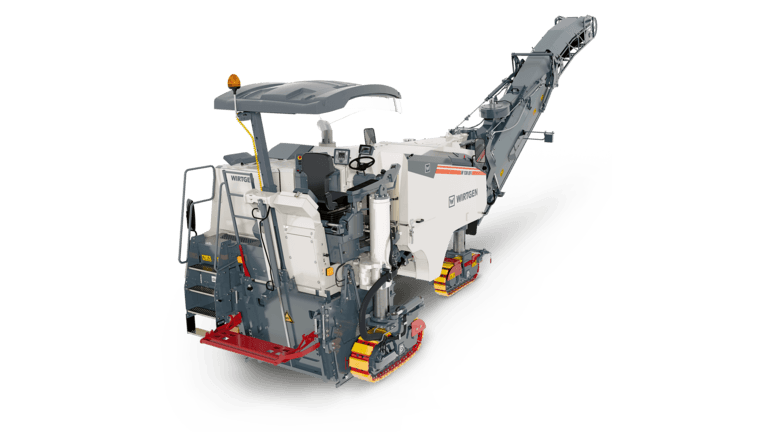

WIRTGEN W 130 XFi
Cold Milling Machines
Equipment Specifications
| SPECIFICATIONS - Displacement | 2.4 Imp.gal |
|---|---|
| SPECIFICATIONS - Operating weight, CE | 49,163 lbs |
| SPECIFICATIONS - Max. milling speed | 1.6 mph |
| SPECIFICATIONS - Milling depth max. | 13 in |
| SPECIFICATIONS - Milling width | 4 ft 3 in |
| SPECIFICATIONS - Max. travel speed in tracked design | 3.6 mph |
| SPECIFICATIONS - Maximum power | 257 kW / 345 hp |
|---|---|
| SPECIFICATIONS - Exhaust emissions category | US EPA Tier 4f |
Featured Content
WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.
WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.
High quality results are the goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of minerals with surface miners. In order to remove pavement with precision and efficiency, it is essential that the drum, pick holder, and pick work together perfectly.
WIRTGEN is the market leader in cutting technology and offers customers high-performance cutting systems whose components are designed to be fully compatible. In addition, WIRTGEN continuously makes advancements to these cutting technology components, incorporating its practical experience and feedback from customers into the process.
All WIRTGEN machines feature a built-in, high-quality machine control system. The fact that the majority of its software is developed in-house plays a key role in this regard – WIRTGEN has placed a special focus on ongoing development, thus significantly increasing the operational reliability of its machines. Many years of experience in software and hardware development also makes it possible to achieve more flexible and sophisticated machine functionality in terms of the range of applications and individual customer requirements.
In the compact class, WIRTGEN combines the advantages of small milling machines – maneuverability, one-man operation, and flexibility – with the front-loading design and productivity of large milling machines. Applications range from traditional small milling machine operations such as spot road repairs to the removal of complete road surfaces, which is normally the domain of large milling machines.
Compact front loader for a wide variety of milling jobs
-
The front loader in the one-meter class stands out due to its outstanding performance and flexibility with working width of 4 ft 3 in (1.3 m). -
Compact dimensions and an optimized machine weight make the cold milling machine perfect for a wide range of job site operations. -
The milling unit is located at the rear of the machine on the right hand side, allowing the machine to drive directly up to obstacles at the rear, for example when milling tie-ins. -
The particularly large slewing angle and the speed of the front-loading conveyor belt can be flexibly adjusted for optimum material loading. -
The state-of-the-art machine control system with the LEVEL PRO PLUS leveling system and the intuitive user interface make efficient one-person operation possible.
