JOHN DEERE VR66C Vibratory Roller Compact Equipment Attachments
Compact Construction Attachments
John Deere vibratory rollers:
- turn a skid steer loader (SSL), compact track loader (CTL), or compact wheel loader (CWL) into a powerful compactor.
- are ideal for asphalt patch, foundation, trench, and flatwork compaction
- are economical since owning one eliminates the costs and maintenance of a self-propelled roller.
Equipment Features
Featured Content
Vibratory roller with smooth drum
Vibratory roller with padded drum
Overview
Increase productivity with improved vibratory roller design.
Benefits
Available in three widths
- 1676 mm (66 in.)
- 1854 mm (73 in.)
- 2134 mm (84 in.)
Two drum styles
- Smooth drum: for coarse materials such as sand, gravel, and stone
- Padded or Sheeps-foot: for dense, hard-to-compact materials such as clay (VR66C and VR73C only)
Improved compaction forces
- VR66C — 3538 kgf (7,800 lbf)
- VR73C — 3878 kgf (8,550 lbf)
- VR84C — 4250 kgf (9,370 lbf)
Additional details
Required hydraulic oil-flow rate is 41–95 L/min (11–25 gpm)
Vibratory roller with smooth drum
Vibratory roller with padded drum
Overview

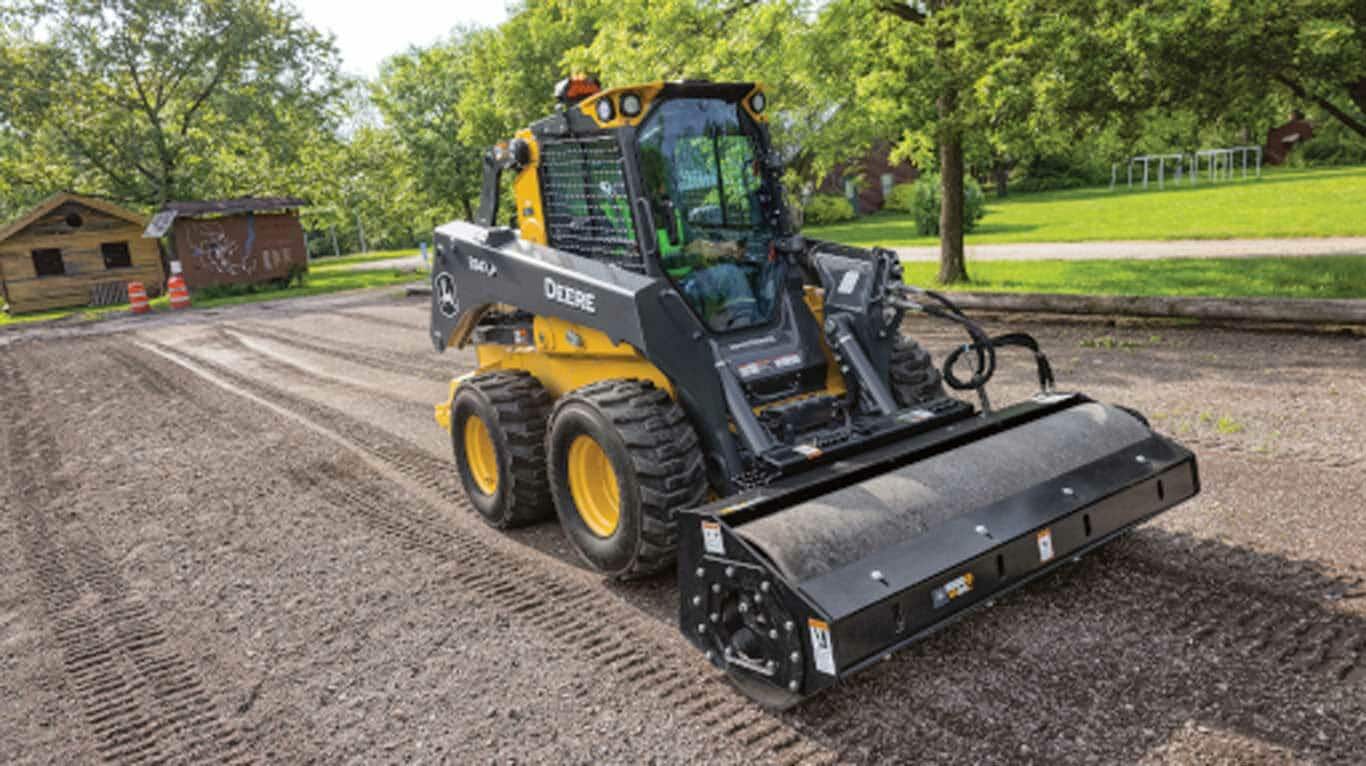

John Deere vibratory rollers turn a skid steer loader (SSL), compact track loader (CTL), or compact wheel loader (CWL) into a powerful compactor. Ideal for asphalt patch, foundation, trench, and flatwork compaction, they’re very economical since owning one eliminates the costs and maintenance of a self-propelled roller. C-Series Vibratory Rollers offer versatility for a wide range of materials including sand, gravel, soils, and asphalt.
Benefits
- The steel drum has an adjustable steel scraper blade ensuring smooth and uniform compaction performance
- Bidirectional operation increases productivity
- Powered by standard hydraulics, vibratory rollers produce compaction forces up to 4250 kgf (9,370 lbf)
- With drum oscillation of ±15 degrees, these attachments are easy to maneuver
- Quik-Tatch™ compatible, they take only one minute to hook up
- Drum and shaft bearings are lubricated and cooled in oil bath for long life
- The VR66C and VR73C are offered in smooth drum or padded drum styles. The VR84C is only offered in smooth drum style
