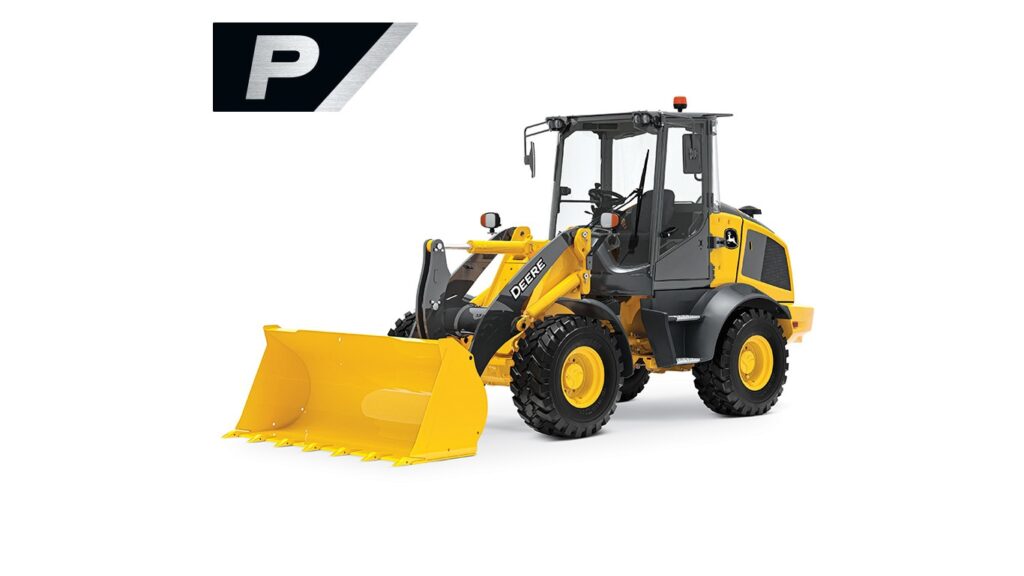

John Deere 324 P-Tier

324 P-Tier Compact Wheel Loader

  • John Deere
  • Compact Wheel Loaders

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote Apply For Financing
Key Features & Specs
  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)
  • Bucket Capacity 0.8–1.6 m³ (1.0–2.1 cu. yd.)
  • Operating Weight 6,400 kg (14,110 lb.)
  • Cab Height 2.78 m (9 ft. 1 in.)
  • Engine Net Power 52 kW (71 hp)
  • + Expand All
  • - Close All
  • Enjoy the Ride
    • Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.
  • Fast Getaway
    • With a standard top speed of over 23 mph, the 324 P-Tier can make some pretty quick moves on and between jobsites.
  • On the Level
    • Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.
  • Control and Command
    • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Standard mini-joystick controls auxiliary hydraulic functions including optional high flow. Adjustable-height monitor lets operators keep close watch on vital machine functions.
  • Turn Things Around
    • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.
  • Lift, Reach, Repeat
    • With exceptional lift and height to hinge pin, the optional High-Lift configuration makes the 324 P-Tier especially adept at repetitive dumping and stacking applications.

CAPACITIES

Breakout - Bucket, kgf (lbf) 5650 (12456)
Fuel Tank, ltr (gallons (US)) 90 (23.8)
Ride Control System Yes
Hydraulic Tank, ltr (gallons (US)) 66 (17.4)
Pump Flow - 1, lt/min (gallons (US) / min) 93 (25)
Pump Type Gear
System Pressure, bar (PSI) 189.6 (2750)
Heaped Capacity, m³ (yd³) 1.1 (1.4)
