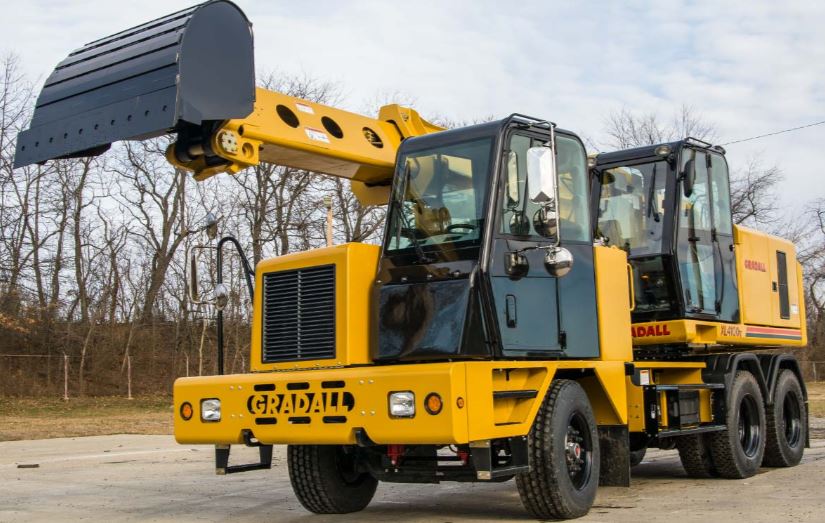

Gradall XL 4100 V

XL 4100 V

Gradall
Highway Speed Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Both upper structure and carrier are powered by a single Volvo engine that increases fuel efficiency by 5%
Over-the-road highway speed travel at 60 mph
Six-speed automatic transmission
Ergonomically designed interior with extra sound-deadening
Full boom tilts 220° for efficient sloping, grading and spreading material
High performance, high reliability 24-volt electrical system

Specifications
Documents

Drive: 6 x 4 or 6 x 6
Max. Radius at Groundline: 30' 3" (9.2 m)
HP @ RPM: 248/2200
Max Digging Depth: 20' 3" (6.2 m)
Max. Loading Height: 17' 2" (5.2 m)
Max. Lift Capacity: 12,130 lb (5,390 kg)
Operating Weight: 49,684 lb (22,539 kg)
Swing Clearance: 8' 0" (2.4 m)
Engine Standard: Volvo TAD871VE Tier 4f 7.7L
