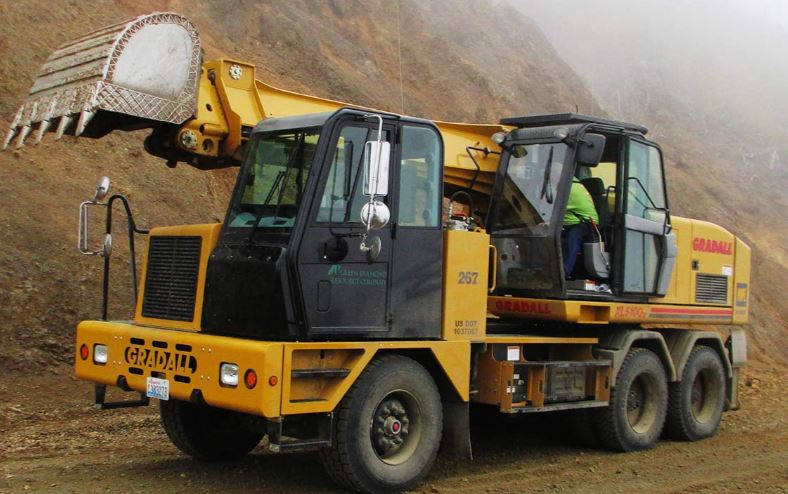

GRADALL XL 5100 V
Construction
- Both upper structure and carrier are powered by a single Volvo engine that increases fuel efficiency by 5%
- Over-the-road highway speed travel at 60 mph
- Six-speed automatic transmission
- Ergonomically designed interior with extra sound-deadening
- Full boom tilts 220° for efficient sloping, grading and spreading material
- High performance, high reliability 24-volt electrical system
Equipment Specifications
Select a category to view specifications (or view all).
| Drive | 6 x 4 or 6 x 6 |
|---|---|
| Max. Radius at Groundline | 33' 9" (10.3 m) |
| HP @ RPM | 315/2200 |
| Max Digging Depth | 24' 5" (7.4 m) |
| Operating Weight | 57,670 lb (26,159 kg) |
| Max. Lift Capacity | 13,213 lb (5,993 kg) |
| Max. Loading Height | 18' 11" (5.8 m) |
| Swing Clearance | 8' 6" (2.6 m) |
| Engine Standard | Volvo TAD873VE Tier 4f 7.7L |
