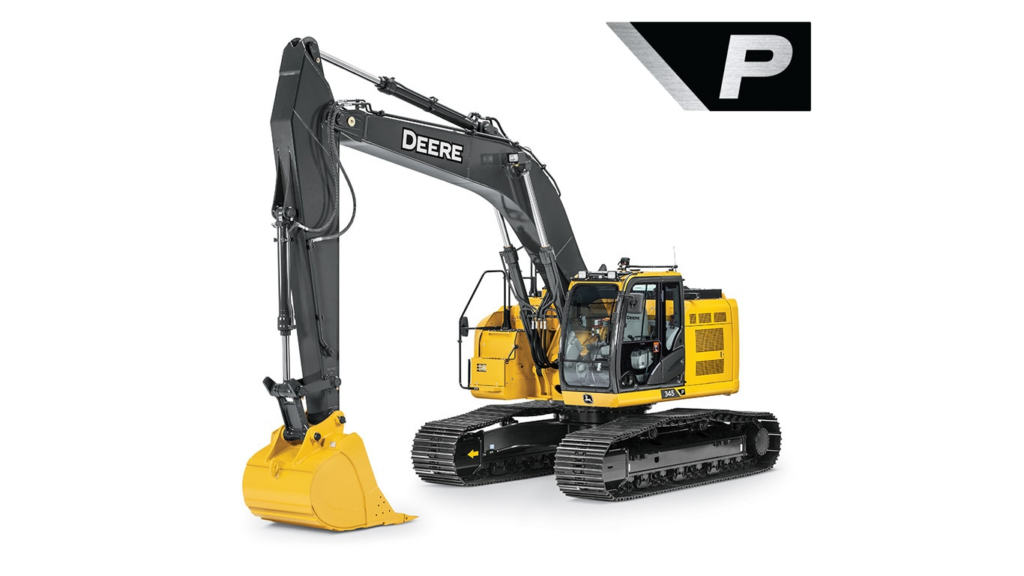

JOHN DEERE 345 P-Tier Mid-Size Excavator
Construction
- Net Power: 186 kW (249 hp)
- Max. Digging Depth: 7.57 m (24 ft. 10 in.)
- Operating Weight: 35 700 kg (78,705 lb.)
| DRIVELINE - Engine Manufacturer | Isuzu |
|---|---|
| DIMENSIONS - Overall Undercarriage Width, mm (ft/in) | 3390 (11 ft 1 in) |
| PERFORMANCE - Total Flow, lt/min (gallons (US) / min) | 681 (180) |
| DIMENSIONS - Dump Height - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
| DIMENSIONS - Dig Height - Mono Boom, mm (ft/in) | 11690 (38 ft 4 in) |
| PERFORMANCE - Bucket Breakout, kN (lbf) | 202 (45410) |
| DIMENSIONS - Width over fixed tracks, mm (ft/in) | 3390 (11 ft 1 in) |
| DRIVELINE - Number Of Carrier Rollers - Each Side | 2 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 380 (100) |
| DRIVELINE - Displacement, ltr (Inches³) | 7.8 (475) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 160 (42) |
| DIMENSIONS - Overall Undercarriage Length, mm (ft/in) | 4940 (16 ft 2 in) |
| PERFORMANCE - Arm Tearout, kN (lbf) | 127 (28550) |
| DIMENSIONS - Transport Height - Maximum, mm (ft/in) | 3420 (11 ft 3 in) |
| PERFORMANCE - Swing Speed, rpm | 10.5 |
| PERFORMANCE - Gradeability, % | 70 |
| DRIVELINE - Emission Rating | Tier 4 / Stage IV |
| PERFORMANCE - Travel Speed - High, kph (mph) | 4.1 (2.5) |
| DRIVELINE - Number Of Cylinders | 6 |
| PERFORMANCE - Side lift - 7.5m Reach, kg (lbs) | 5450 (11770) |
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 4050 (13 ft 3 in) |
| DRIVELINE - Rated speed, rpm | 1900 |
| DIMENSIONS - Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 7410 (24 ft 4 in) |
| DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in) | 11220 (36 ft 10 in) |
| DIMENSIONS - Track Gauge, mm (ft/in) | 2590 (8 ft 6 in) |
| DRIVELINE - Track Shoe Width, mm (inches) | 800 (32) |
| DIMENSIONS - Dig Depth - Mono Boom, mm (ft/in) | 7570 (24 ft 10 in) |
| PERFORMANCE - End lift - 7.5m Reach, kg (lbs) | 9220 (19870) |
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 2090 (6 ft 10 in) |
| DIMENSIONS - Ground Clearance, mm (inches) | 500 (20) |
| PERFORMANCE - Ground Bearing Pressure, kPa (PSI) | 50 (7.3) |
| PERFORMANCE - Tractive Force, kN (lbf) | 298 (66990) |
| PERFORMANCE - Bucket Pressure, bar (PSI) | 343 (4970) |
| DIMENSIONS - Transport Length Mono Boom, mm (ft/in) | 10020 (32 ft 10 in) |
| DRIVELINE - Number Of Track Rollers - Each Side | 8 |
| PERFORMANCE - Boost Pressure, bar (PSI) | 380 (5510) |
| DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in) | 11460 (37 ft 7 in) |
| DRIVELINE - Engine Output - Net, kW (hp) | 186 (249) |
| PERFORMANCE - Swing Torque, kNm (lbf / ft) | 90.5 (66750) |
| WEIGHTS - Operating Weight, kg (lbs) | 35700 (78705) |
Featured List
- Max Digging Depth: 7.57 m (24 ft. 10 in.)
- Net Rated Power: 186 kW (249 hp)
- Operating Weight: 35,700 kg (78,705 lb.)
Featured Content
Final Tier 4 (FT4)/ EU Stage IV aftertreatment without the use of DPF
Overview
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Benefits
- Proven, integrated, simple engine meets EPA Final Tier 4 (FT4)/ EU Stage IV standards
- 185.6 kW (249 net peak horsepower)
- Ground level diesel exhaust fluid (DEF) fill
Three-pump hydraulic system
Overview
Pumps 1 and 2 combined control the boom and arm functions. Pump 3 is dedicated to swing. The result is fast cycle times and increased productivity.
Take digging forces to new levels with power boost when you need it. This machine is a well-balanced, smooth operating machine in a reduced tailswing configuration.
Benefits
- Use power boost with the push of a button to get through tough material
- Pilot controlled hydraulics provide smooth function and feel for operators
- Maneuverable reduced tailswing eases the risk of damage to surroundings or the machine
Auxiliary hydraulic lines
Overview
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Benefits
- Standard auxiliary proportional control in the right pilot control lever
- Toggle between attachments and adjust flow and pressure based on attachment requirements right in the monitor
Right, rear, and left cameras with additional LED surround lighting
Overview
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
