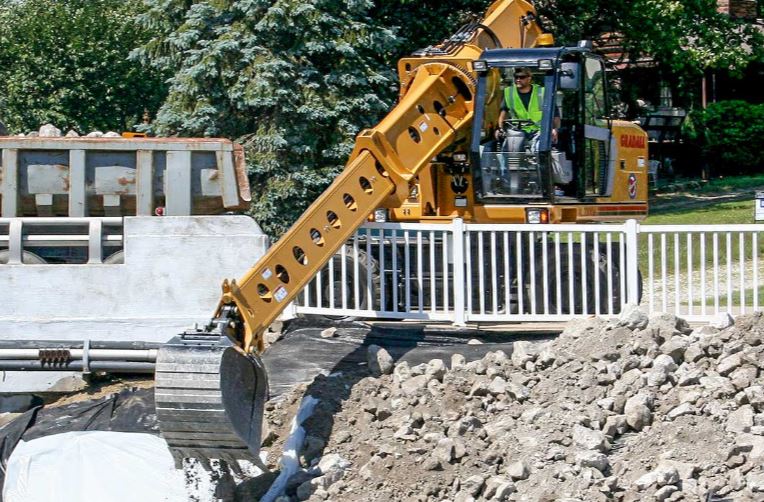

GRADALL XL 3300 V
Construction
- Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
- Work at front, rear or side of chassis without the need for outriggers
- Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
- Dig down at 75° angle
- Excellent visibility of the boom through the entire dig cycle
Equipment Specifications
Select a category to view specifications (or view all).
| Engine Standard | Volvo TAD571 VE Tier 4f 5.1L |
|---|---|
| Max. Loading Height | 15' 6" (4.7 m) |
| HP @ RPM | 172/2,000 |
| Max Digging Depth | 18' 5" (5.6 m) |
| Max. Radius at Groundline | 27' 3" (8.3 m) |
| Ground Clearance | 11" (275 mm) |
| Max. Lift Capacity | 8,150 lb (3,695 kg) |
| Operating Weight | 39,294 lb (17,823 kg) |
| Drive | 4 x 4 |
| Swing Clearance | 7' 6" (2.3 m) |
