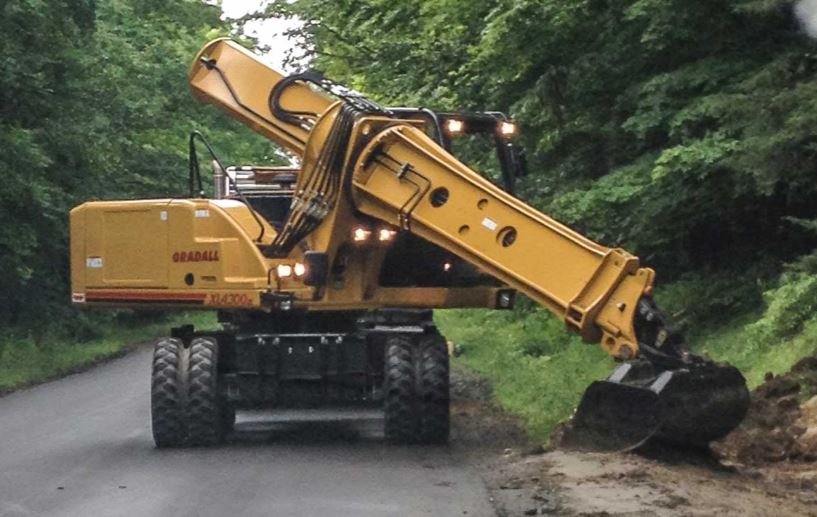

Gradall XL 4300 V

XL 4300 V

Gradall
Rough Terrain Wheeled Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
Work at front, rear or side of chassis without the need for outriggers
Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
Dig down at 75° angle
Excellent visibility of the boom through the entire dig cycle

Specifications
Documents

Engine Standard: Volvo TAD571 VE Tier 4f 5.1L
Max. Lift Capacity: 12,540 lb (5,690 kg)
Ground Clearance: 11" (275 mm)
HP @ RPM: 173/2,200
Max Digging Depth: 21' 3" (6.5 m)
Drive: 4 x 4
Max. Radius at Groundline: 30' 4" (9.2 m)
Max. Loading Height: 17' 0" (5.2 m)
Operating Weight: 43,580 lb (19,768 kg)
Swing Clearance: 8' 0" (2.4 m)
