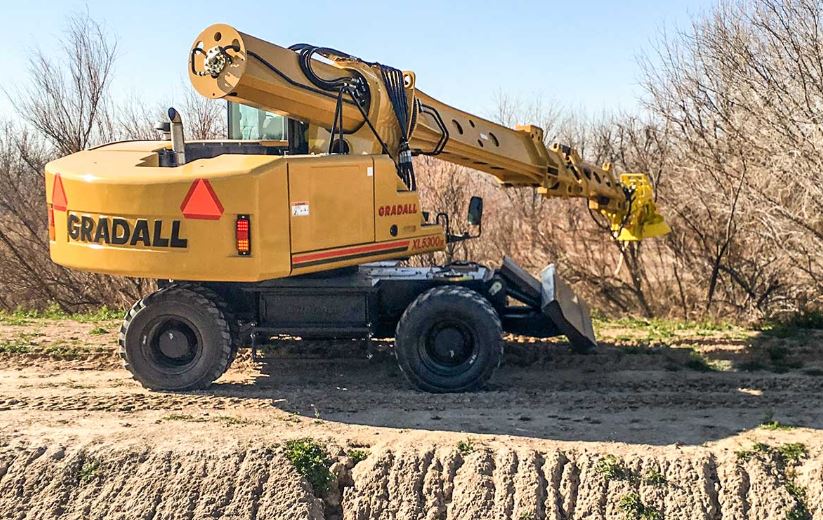

GRADALL XL 5300 V
Construction
- Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
- Work at front, rear or side of chassis without the need for outriggers
- Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
- Dig down at 75° angle
- Excellent visibility of the boom through the entire dig cycle
Equipment Specifications
Select a category to view specifications (or view all).
| Engine Standard | Volvo TAD571 VE Tier 4f 5.1L |
|---|---|
| Max. Loading Height | 18' 8" (5.7 m) |
| Max. Radius at Groundline | 33' 10" (10.3 m) |
| Max. Lift Capacity | 13,764 lb (6,243 kg) |
| Ground Clearance | 11" (275 mm) |
| HP @ RPM | 173/2,200 |
| Drive | 4 x 4 |
| Operating Weight | 51,216 lb (23,231 kg) |
| Max Digging Depth | 24' 7" (7.5 m) |
| Swing Clearance | 8' 6" (2.6 m) |
