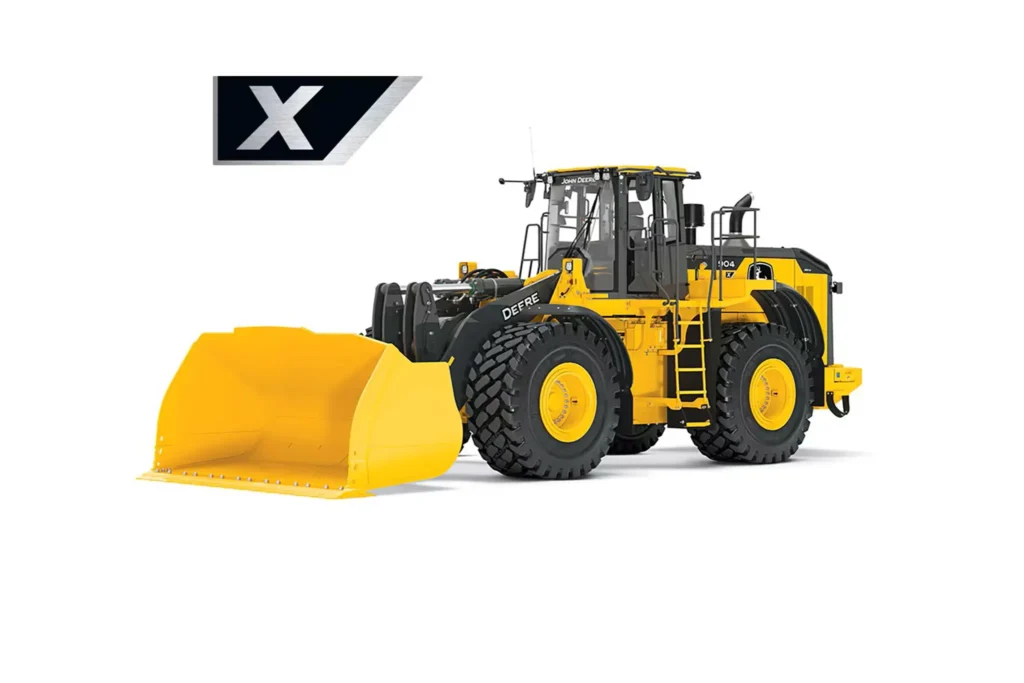

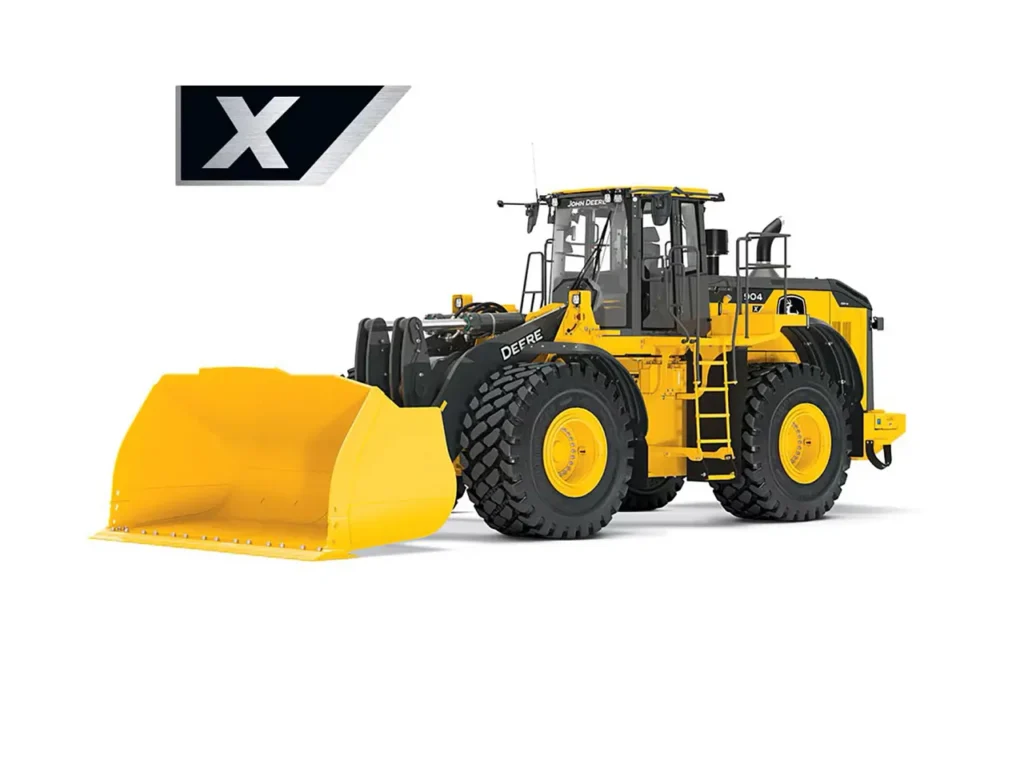

JOHN DEERE 904 X-Tier Large Wheel Loader
Construction
- Net Peak Power: 330 kW (442 hp) at 1,400 rpm
- Operating Weight: 36,316–36,433 kg (80,063–80,321 lb.)
- Bucket Capacity: 7.5–7.8 m3 (9.80–10.25 cu. yd.)
- Height to Top of Cab: 12 ft, 3 in. (3.73 m)
Select a category to view specifications (or view all).
| Axles And Brakes - Tire Size Used To Measure Oscillation | 875/65R29 L3 |
|---|---|
| Serviceability - Parking Brake Oil (Wet Disc) Refill Capacity | 11.84 oz. |
| Transmission System - Type | Electric Variable Transmission (EVT) |
| Serviceability - Fuel Tank (With Lockable Cap) Refill Capacity | 534.0 L |
| Engine - Non-Road Emission Standards | EPA Tier 4/EU Stage V |
| Hydraulic System And Steering - Steering Articulation Angle Each Direction | 40.0 degrees |
| Wheels And Tires - Tire Size Used To Measure | 875/65R29, 1 Star L-3 |
| Engine - Lubrication | Full-flow spin-on filter and integral cooler |
| Axles And Brakes - Standard Differentials Rear | Conventional front and rear axles |
| Hydraulic System And Steering - Max Rated Flow At Rated RPM | 199.5 L/min |
| Engine - Cylinders | 6 |
| Hydraulic System And Steering - System Pressure At Max Rated Flow | 1000.0 psi |
| Hydraulic System And Steering - Loader Controls | 2-function valve; single- or dual-lever controls; control lever lockout feature |
| Hydraulic System And Steering - Hydraulic Lower (Power Down) Cycle Time | 3.6 seconds |
| Serviceability - Transmission Reservoir With Vertical Filter Refill Capacity | 14.0 gal. |
| Engine - Net Torque Rise | 53.0 % |
| Serviceability - Fuel Tank (With Lockable Cap) Refill Capacity | 141.0 gal. |
| Axles And Brakes - Rear Axle Oscillation, Distance Each Direction | 8.0 degrees |
| Engine - Net Peak Power At Rated RPM (ISO 9249) | 330.0 kW |
| Hydraulic System And Steering - Pump (Steering) | 1 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Electrical And Lighting - Battery Voltage | 12.0 V |
| Hydraulic System And Steering - Turning Radius (Measured To Centerline Of Outside Tire) | 20.67 ft, in. |
| Engine - Model | JD14 |
| Serviceability - Cooling System Refill Capacity | 64.0 qt |
| Hydraulic System And Steering - Max Rated Flow At Rated RPM | 52.7 gpm |
| Electrical And Lighting - Battery Capacity Per Each | 1400.0 CCA |
| Serviceability - Diesel-Exhaust Fluid (DEF) Refill Capacity | 27.6 qt |
| Serviceability - Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 68.0 L |
| Serviceability - Cooling System Refill Capacity | 60.5 L |
| Serviceability - Hydraulic Reservoir With Filter Refill Capacity | 196.0 L |
| Hydraulic System And Steering - Pump Type And System (Loader And Steering) | 2 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Serviceability - Engine Oil With Vertical Spin-On Filter Refill Capacity | 61.0 L |
| Engine - Displacement | 827.0 cu in. |
| Serviceability - Transmission Reservoir With Vertical Filter Refill Capacity | 53.0 L |
| Engine - Aspiration | Single turbocharged, charge air cooled |
| Hydraulic System And Steering - System Relief Pressure (Loader And Steering) | 24900.0 kPa |
| Serviceability - Hydraulic Reservoir With Filter Refill Capacity | 51.7 gal. |
| Axles And Brakes - Standard Differentials Front | Conventional front and rear axles |
| Engine - Valves Per Cylinder | 4 |
| Hydraulic System And Steering - Steering Articulation Full Arc Angle | 80.0 degrees |
| Axles And Brakes - Final Drives | Heavy-duty mid-board planetary |
| Axles And Brakes - Rear Axle Oscillation, Stop To Stop | 16.0 degrees |
| Hydraulic System And Steering - System Relief Pressure (Loader And Steering) | 3611.0 psi |
| Electrical And Lighting - Number Of Batteries | 2 |
| Engine - Net Peak Torque At Rated RPM (ISO 9249) | 2339.0 Nm |
| Electrical And Lighting - System Type | 24 volt with 150-amp alternator |
| Engine - Fuel System (Electronically Controlled) | Electronic High Pressure Common Rail (HPCR) |
| Cooling - Fan Drive Type | Hydraulically driven, proportionally controlled, fan aft of coolers, automatic reversing fan drive |
| Engine - Net Peak Torque At Rated RPM (ISO 9249) | 1725.0 lb-ft |
| Transmission System - Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; quick-shift button on hydraulic lever |
| Hydraulic System And Steering - Rated RPM | 2000.0 rpm |
| Hydraulic System And Steering - Hydraulic Total Cycle Time | 11.8 seconds |
| Electrical And Lighting - Standard Alternator Rating | 150.0 amp |
| Transmission System - Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Serviceability - Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 18.0 gal. |
| Hydraulic System And Steering - Hydraulic Raise Cycle Time | 5.9 seconds |
| Serviceability - Diesel-Exhaust Fluid (DEF) Refill Capacity | 26.3 L |
| Hydraulic System And Steering - Steering Type (ISO 5010) | Power, fully hydraulic; single-lever control and adjustable wristrest with conventional steering wheel override |
| Hydraulic System And Steering - Hydraulic Dump Cycle Time | 2.3 seconds |
| Engine - Displacement | 13.55 L |
| Hydraulic System And Steering - System Pressure At Max Rated Flow | 6894.76 kPa |
| Engine - Net Peak Power | 1400.0 rpm |
| Engine - Air Cleaner | Dual-element dry type, restriction indicator in cab monitor for service; additional centrifugal engine pre-cleaner |
| Serviceability - Parking Brake Oil (Wet Disc) Refill Capacity | 0.35 L |
| Wheels And Tires - Width Over Tires On Standard Tires | 129.5 in. |
| Transmission System - Shift Modes | Auto (1st–4th or 2nd–4th); quick-shift button with 2 selectable modes: kick-down or kick-up/down |
| Engine - Net Peak Power At Rated RPM (ISO 9249) | 442.0 hp |
| Wheels And Tires - Tread Width On Standard Tires | 96.1 in. |
| Hydraulic System And Steering - Turning Radius (Measured To Centerline Of Outside Tire) | 6.3 m |
| Engine - Manufacturer | John Deere |
| Wheels And Tires - Width Over Tires On Standard Tires | 3290.0 mm |
| Wheels And Tires - Tread Width On Standard Tires | 2440.0 mm |
| Axles And Brakes - Service Brakes (ISO 3450) | Outboard, forced oil cooled, multi disc |
| Serviceability - Engine Oil With Vertical Spin-On Filter Refill Capacity | 64.4 qt |
| Engine - Net Peak Torque | 1300.0 rpm |
| Axles And Brakes - Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, sealed wet multi disc |
Featured List
- Engine - Net Peak Power At Rated RPM (ISO 9249): 442.0 hp
- Engine - Net Peak Power: 1400.0 rpm
- Engine - Net Peak Torque At Rated RPM (ISO 9249): 1725.0 lb-ft
- Engine - Net Peak Torque At Rated RPM (ISO 9249): 2339.0 Nm
- Engine - Net Peak Power At Rated RPM (ISO 9249): 330.0 kW
- Engine - Net Peak Torque: 1300.0 rpm
Featured Content
Deere’s Electric Variable Transmission (EVT) delivers smooth, responsive power and simplified operation, improving controllability and reducing operator effort in high-demand loading applications.
With larger bucket configurations and production-class performance, the 904 X‑Tier is engineered to increase bucket fill and maximize tons moved per cycle in quarry and aggregate operations.
Active jobsites present many operational challenges, including multiple
machines, crew members, and bystanders. The John Deere Advanced Vision
System (AVS) and SmartDetect™ can help enhance operator awareness to
confidently navigate busy work areas.
