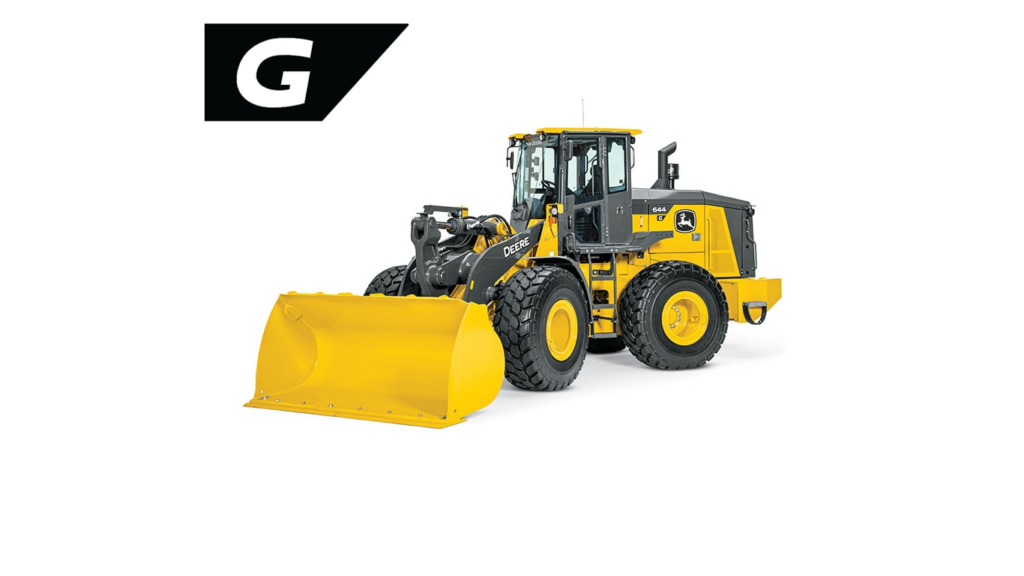

John Deere 644 G-Tier
  • + Expand All
  • - Close All
  • Comfortable and straightforward cab design
    View of operator’s station View of operator’s station
    View of foot pedals from the seat View of foot pedals from the seat

    The cab on the 644 G was designed to provide different levels of comfort to operators, depending on the machine application. It is also set up to ensure that operation of the machine is straightforward with easy-to-access machine settings and features.



    • With a standard mechanical seat or optional air-ride suspension seat, you’re able to choose the seat suspension that matches your average operating conditions.
    • Floor storage area on the left side of the seat means storing lunch boxes or personal items is easy and out of the way of foot pedals or controls.
    • Joystick controls, foot pedals, and sealed-switch module have all been ergonomically placed to ensure maximum comfort.
    • A high-definition and adjustable monitor includes built-in abilities to view diagnostic trouble codes.







  • Proven and reliable major components that enable maximum reliability and durability
    John Deere PowerTech™ 6.8-L (415-cu in.) engine John Deere PowerTech™ 6.8-L (415-cu in.) engine

    Built on over 50 years of experience producing and supporting wheel loaders, the 644 G features a high commonality of components found in other John loaders that are designed and tested to meet John Deere standards including the engine, transmission, and axles.



    • The John Deere PowerTech 6.8-L (415-cu in.) engine is designed to improve cooling and provide high cylinder and piston ring durability.
    • John Deere Teammate V axles contain pressure-lubed input bearings and brake discs that enhance cooling and extend component life, which helps lower total cost of ownership.
    • Extended service intervals lower the cost of maintenance over the entire life of the machine.
    • Auto Idle and Auto Shutdown reduce engine speed or turn the off completely after a period of inactivity to save fuel and warranty hours.



  • Service and support capabilities you’ve come to expect from John Deere
    Hinged doors open on both sides of the machine for daily, ground level access and service Hinged doors open on both sides of the machine for daily, ground level access and service
    John Deere Connected Support™ capabilities monitor key machine data John Deere Connected Support™ capabilities monitor key machine data

    The 644 G is backed by John Deere’s world-class dealer network that provides warranty support and maintenance and has the parts on the shelf needed to allow maximum uptime. Attributes related to servicing and supporting the 644 G are no different than those experienced today on all other pieces of John Deere equipment.



    • All daily service points including fuel fill are conveniently grouped on the left side of the machine at ground level for easy access.
    • Hinged doors provide wide-open access to the engine, the cooling system, and other components.
    • John Deere Connected Support™, JDLink™, Service ADVISOR™ Remote, and Expert Alerts are all tools that enable sharing of real- time machine data and alerts so fleet managers and dealers can view codes and data before dispatching a technician to a jobsite, which increases uptime and lowers costs.
  • Operate with ease with user-friendly controls
    Operator’s view of the controls from the seat Operator’s view of the controls from the seat

    The 644 G controls were designed with operators of all skill sets in mind. The simple setup and functionality mean you can start putting the machine to work quicker and easier.



    • Pilot controls on the 644 G are intuitive to operate and are familiar to both novice and experienced operators.
    • Automatic shifting of the transmission occurs on the fly to enhance ease of operation
    • Optional front differential lock provides additional traction in muddy or softer ground conditions.
    • In-cab adjustable boom height kickout, return to carry, and return-to-dig can be easily activated from the convenient sealed switch module (SSM), speeding production in repetitive applications.
    • Clutch cut-off allows for the delivery of full engine power to the hydraulics when crowding a pile and using the brakes, which increases cycle times and productivity. A sensor integrated into the brake pedal cues the cut-off in the transmission to occur during braking so that operators don’t have to press a button to disengage the transmission.

CAPACITIES

System Pressure, bar (PSI) 231 (3350)
Pump Flow - 1, lt/min (gallons (US) / min) 330 (87)
Breakout - Bucket, kgf (lbf) 14462 (31883)
Heaped Capacity, m³ (yd³) 3.1 (4)
Ride Control System Optional
Hydraulic Tank, ltr (gallons (US)) 100 (26.4)
Fuel Tank, ltr (gallons (US)) 300 (79.3)
Pump Type Piston
