John Deere 803M

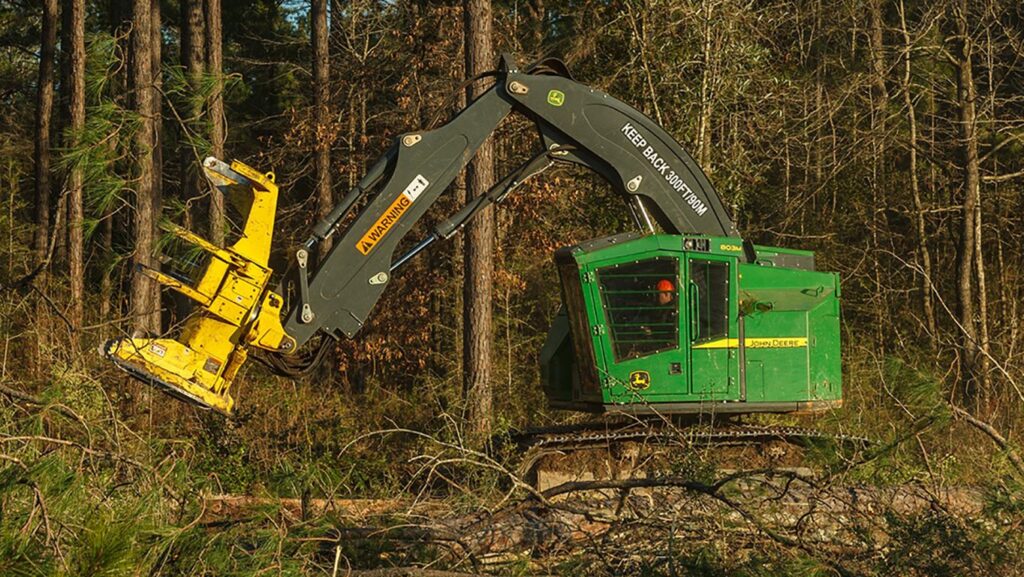

803M Tracked Feller Buncher

  • John Deere
  • Tracked Feller Bunchers

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Peak Power: 224 kW (300 hp) @ 1,900 rpm
  • Max. Boom Reach: 8.49 m (27 ft. 10 in.)
  • Tractive Effort: 245 kN (55,040 lbf)
  • Peak Power @ 1,900 rpm 224 kW (300 hp)
  • Max Boom Reach 8.49 m (27 ft. 10 in.)
  • Tractive Effort 245 kN (55,040 lbf)
  • Swing Torque 55,090 Nm (40,630 lb.-ft.)
  • Tail Swing 1.94 m (6 ft. 4 in.)
  • + Expand All
  • - Close All
  • Increased Engine Power

    Engine power has increased significantly — by 25 percent — for superb multifunction performance.

  • Improved Stability

    Longer, wider undercarriage maximizes stability no matter the terrain. If you’re working in really big timber or on hills, optional high-torque swing provides increased power, to boost productivity. Up to 45-percent more tractive effort increases capability for negotiating difficult or steep terrain, deep snow, and swamps.

  • Standard Rapid Cycle System (RCS)

    RCS can be tailored to individual skill levels and specific harvesting conditions. Multiple RCS settings can be saved according to individual operator preferences. Novices may prefer a slower, more methodical pace, while highly skilled pros may want faster response.

  • Increased visibility

    Floor-to-ceiling front window offers 44-percent-more window area, providing an outstanding view to the cutting area.

CAPACITIES

Fuel Tank, ltr (gallons (US)) 870 (230)
Hydraulic Tank, ltr (gallons (US)) 122 (32)
Alternator Output, Amp 100
