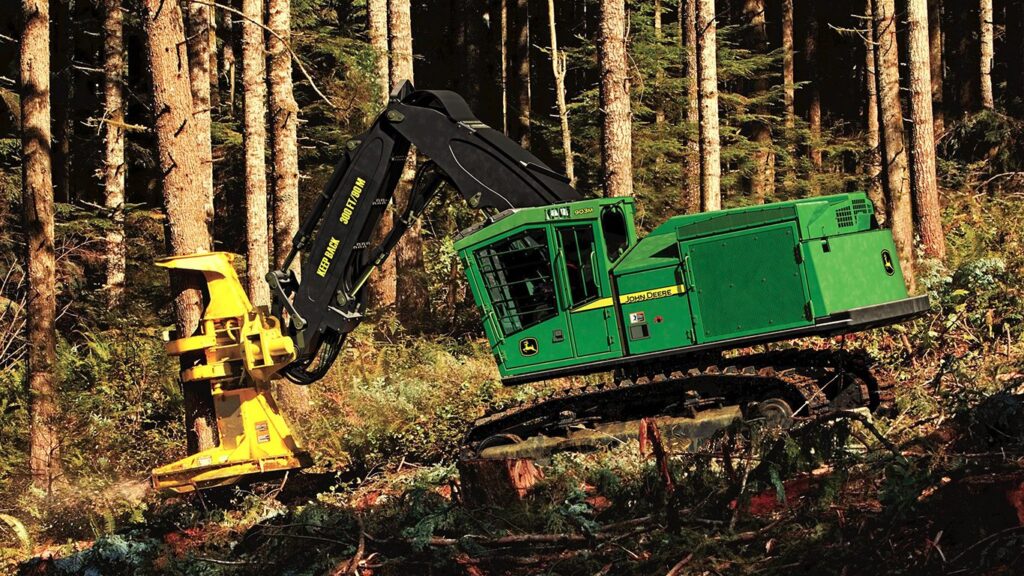

John Deere 903M

903M Tracked Feller Buncher

John Deere
Tracked Feller Bunchers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Wide, powerful cutting swath
Peak Power: 246 kW (330 hp) @ 1,900 rpm
Max. Boom Reach: 9.82 m (32 ft. 3 in.)

Peak Power @ 1,900 rpm 246 kW (330 hp)
Max Boom Reach 9.82 m (32 ft. 3 in.)
Tractive Effort 322 kN (72,300 lbf)
Swing Torque 80,170 Nm (59,130 lb.-ft.)
Tail Swing 3.18 m (10 ft. 5 in.)

Specifications
Documents

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	1080 (285)
Alternator Output, Amp	100 x 2

DIMENSIONS

Base Carrier Length, m (ft/in)	4.9 (16 ft 1 in)
Height Over Cab, mm (ft/in)	3550 (11 ft 8 in)
Overall Width, mm (ft/in)	3300 (10 ft 10 in)
Track Length On Ground, mm (ft/in)	3830 (12 ft 7 in)
Tailswing Radius, mm (ft/in)	3180 (10 ft 5 in)
Ground Clearance, mm (inches)	756 (30)
Superstructure Width, mm (ft/in)	3050 (10 ft )
Track Gauge, mm (ft/in)	2690 (8 ft 10 in)

DRIVELINE

Engine Manufacturer	John Deere
Engine Model	PowerTech Plus 6090PSS
Rated Speed, rpm	1900
Engine Output, kW (hp)	246 (330)
Engine Torque, Nm (lbf / ft)	1392 (1027)
Carrier Rollers - Each Side	2
Track Rollers - Each Side	9
Track Shoe Width, mm (inches)	610 (24)

PERFORMANCE

Travel Speed, kph (mph)	4.2 (2.6)
Tractive Force, kN (lbf)	322 (72300)
Lift Capacity - Maximum Reach, kg (lbs)	5890 (12990)
Reference Harvesting Head	FR22B
Felling Diameter, mm (inches)	559 (22)
Reference Head Saw Type	Disc
Reference Head Type	Felling
Cutting Radius - Maximum, mm (ft/in)	8880 (29 ft 1 in)
Cutting Radius - Minimum, mm (ft/in)	4870 (15 ft 11 in)
Cutting Swath Horizontal, mm (ft/in)	4010 (13 ft 2 in)
System Voltage, V	24
Pump Type	Var. axial-piston
Pump Flow, lt/min (gallons (US) / min)	532 (141)

WEIGHTS

Operating Weight, kg (lbs)

31094 (68560)
