John Deere 643L

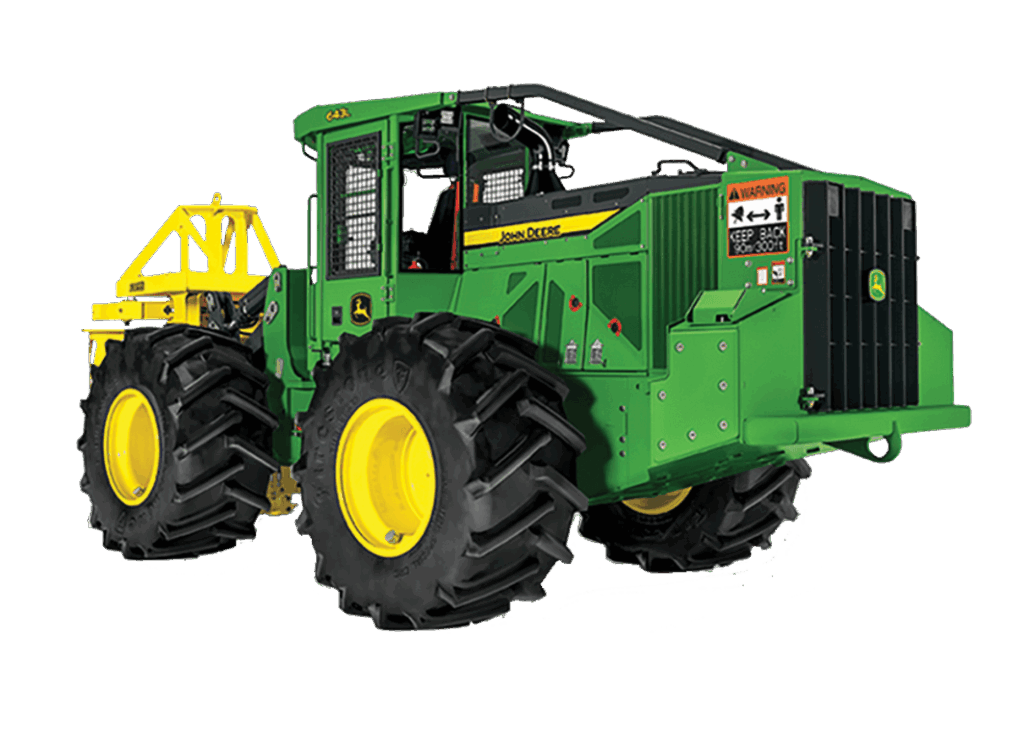

643L Wheeled Feller Buncher

  • John Deere
  • Wheeled Feller Bunchers

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • 25% larger cab
  • 21% larger front window
  • Increased head tilt angles
  • Gross Power 157 kW (211 hp)
  • Gross Torque 923 Nm (680 ft.-lb.)
  • Wheelbase 3023 mm (119 in.)
  • Operating Weight 13,910 kg (30,704 lb.)
  • + Expand All
  • - Close All
  • Increased horsepower and machine stability.

    The 643L boasts significantly more horsepower for superb responsiveness. Unsurpassed power-to-weight ratio ensures steady multifunction performance in wet or hilly conditions.

  • Redesigned engine and equipment frame structures.

    Optimal weight distribution and longer wheelbase improve balance, for better stability when climbing hills and controlling trees. The 643L's wheelbase is 229-mm (9 in.) longer than their previous model.

  • Wide-open access to cooling package.

    Cooling fan and other cooling system components swing out for quick and easy cleaning. Air-intake compartment is sealed off from the engine compartment to keep things cool.

  • The cab is 25-percent roomier and 50-percent quieter

    In addition to the larger cab size, the controls allow operators to configure joystick buttons to their own individualized preference. The optional joystick and foot controls deliver smooth, low-effort control to help reduce operator fatigue over long shifts.

  • Quick Dump for the disk saw felling head

    New one-button Quick Dump opens both accumulating and grab arms, releasing trees from the pocket. Head-tilt and arm functions are combined into a single motion, minimizing fatigue.

CAPACITIES

Fuel Tank, ltr (gallons (US)) 396 (104.6)
Hydraulic Tank, ltr (gallons (US)) 169.1 (44.7)
Alternator Capacity, Amp 150
