Home / New Equipment / Forestry Equipment / Forwarders / 1010G Forwarder

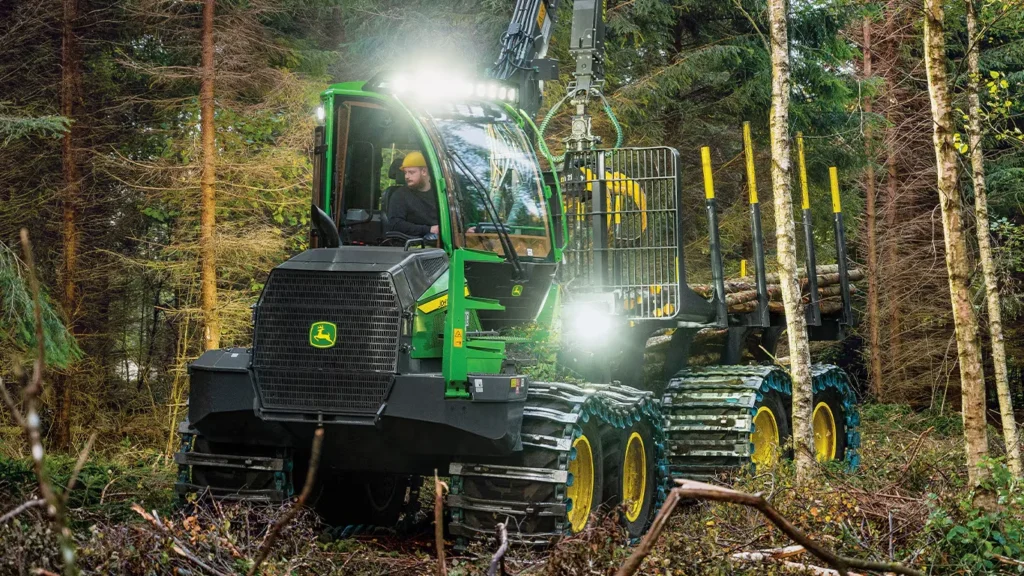

JOHN DEERE 1010G Forwarder
Forestry Equipment
- Net Power: 131 kW (178 hp) at 1,900 rpm
- Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Tractive Force: 150 kN (33,721 lbf.) with 24.5 tires / 160 kN (35,969 lbf.) with 26.5 tires
- Load Rating: 11 000 kg (24,251 lb
Select a category to view specifications (or view all).
| Driveline - Engine Manufacturer | John Deere |
|---|---|
| Driveline - Engine Model | PowerTech Plus 4045 |
| Driveline - Displacement, ltr (Inches³) | 4.5 (274.6) |
| Driveline - Engine Output, kW (hp) | 118 (158) |
| Driveline - Engine Torque, Nm (lbf / ft) | 650 (479.4) |
| Driveline - Drive Configuration | 8 x 8 |
| Driveline - Transmission | Hydrostatic-Mechanical |
| Driveline - Std tire size front | 700 x 26.5 |
| Driveline - Std tire size rear | 700 x 26.5 |
| Dimensions - Base Carrier Length, mm (inches) | 9455 (372) |
| Dimensions - Height Over Cab, mm (inches) | 3712 (146.4) |
| Dimensions - Transport Height, mm (inches) | 3712 (146.4) |
| Dimensions - Width, mm (inches) | 2790 (110.4) |
| Dimensions - Wheelbase, mm (inches) | 5200 (205.2) |
| Dimensions - Ground Clearance, mm (inches) | 638 (25) |
| Dimensions - Width - Fixed Bunk, mm (inches) | 2500 (98.4) |
| Dimensions - Horizontal Reach, m (ft/in) | 10 (32 ft 9 in) |
| Dimensions - Load Length, mm (inches) | 4500 (160.8) |
| Weights - Operating Weight, kg (lbs) | 16050 (35384) |
Featured Content
- Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
- Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
- IBC makes load handling more efficient and boosts productivity.
- Long-bogie configuration available for the 1010G delivers lower ground pressure than standard bogie models, for logging in soft terrain. It also improves the sideways stability of the rear frame while driving.
- The compact dimensions of our 1010G Forwarder provide the agility needed to maximize productivity and power in the most demanding conditions.
- Rotating and smooth-leveling cab turns 290 degrees, providing 360-degree visibility of boom movements and the surrounding jobsite, for safe, efficient log loading.
- Optional rotating and leveling suspended cab keeps operators balanced and comfortable in steep and uneven terrain.
- Take the guesswork out of planning, implementing, and monitoring your logging operation. The tools of our production-planning and -tracking system expand on the core technology features that come standard in every John Deere Forestry machine to unleash a powerful new array of possibilities:
- TimberMatic™ Maps is an innovative onboard software solution that helps you reimagine your jobsites. Real-time production views and shared wireless connections between machines make it easier than ever before to take your forestry operation to the next level.
- TimberManager™ is a web-based solution for PCs, tablets, and mobile phones that allows you to follow jobsite progress. Combined with TimberMatic Maps, this software provides complete visibility of your operation — from land harvested to specific machines — so you can streamline communication, analyze tasks, and increase productivity.
- Your John Deere Forestry machine arrives from the factory equipped with a powerful set of technologies and capabilities already built in:
- JDLink™ connectivity and the John Deere Operations Center™ let you track your equipment, see which machines are working, and know if they’re being utilized properly and at maximum productivity and efficiency.
- John Deere Connected Support leverages a suite of dealer and factory tools designed to deliver increased uptime and productivity, and lower daily operating costs.
- Remote Diagnostics and Programming Capability within John Deere Connected Support helps your dealer warn you of any issue with your machine — often before you know of the problem yourself — and initiate solutions without charging you for a technician’s visit to your jobsite.
- Our advanced dual approach to Machine Health combines the expertise of the technology specialists at our dealerships with the data specialists at our central Machine Health Monitoring Center (MHMC).
