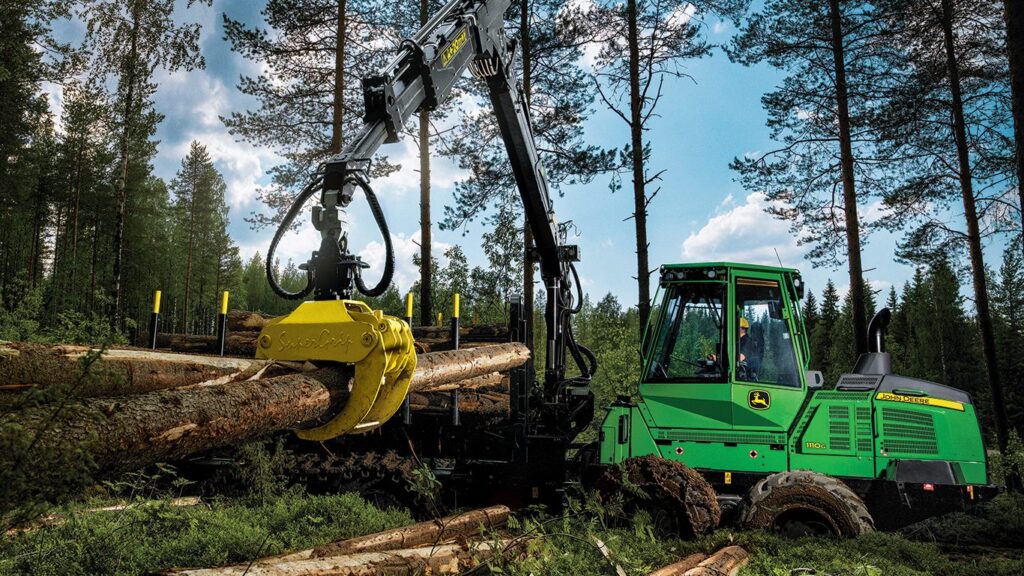

JOHN DEERE 1110G Forwarder
Forestry Equipment
- Boom Reach 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Tractive Effort 160 kN (35,968 lbf.)
- Load Rating 12 000 kg (26,455 lb.)
- Engine Power 145 kW (194 hp) at 1,600 – 1,900 rpm
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 6068 |
| DRIVELINE - Displacement, ltr (Inches�) | 6.8 (414.9) |
| DRIVELINE - Engine Output, kW (hp) | 145 (194) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 865 (638) |
| DRIVELINE - Drive Configuration | 8 x 8 |
| DRIVELINE - Transmission | Hydrostatic-Mechanical |
| DRIVELINE - Std tire size front | 26.5 - 20 |
| DRIVELINE - Std tire size rear | 26.5 - 20 |
| DIMENSIONS - Base Carrier Length, mm (inches) | 9820 (386.4) |
| DIMENSIONS - Transport Height, mm (inches) | 3870 (152.4) |
| DIMENSIONS - Width, mm (inches) | 2700 (106.8) |
| DIMENSIONS - Wheelbase, mm (inches) | 4900 (193.2) |
| DIMENSIONS - Ground Clearance, mm (inches) | 660 (26) |
| DIMENSIONS - Width - Fixed Bunk, mm (inches) | 2700 (106.8) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 7.2 (23 ft 7 in) |
| DIMENSIONS - Load Length, mm (inches) | 4500 (177.6) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 167 (44) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 161 (43) |
| CAPACITIES - Alternator Output, Amp | 150 |
| PERFORMANCE - Lifting Moment - Standard Crane, kNm (lbf / ft) | 102 (75) |
| PERFORMANCE - Load Capacity, tonnes (tons (short)) | 12 (13.228) |
| PERFORMANCE - Travel Speed, kph (mph) | 23 (14.3) |
| PERFORMANCE - Tractive Force, kN (lbf) | 160 (35968) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump Capacity, cm� (Inches�) | 140 (9) |
| WEIGHTS - Operating Weight, kg (lbs) | 17130 (37765) |
Featured List
- Load Rating: 12 000 kg (26,455 lb.)
- Boom Reach: 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Engine Power: 145 kW (194 hp) at 1,600 – 1,900 rpm
- Tractive Effort: 160kN (35,968 lbf.)
- Gross Lifting Torque: 102 kNm (75 ft. – lb.) / 125 kNm (92 ft. – lb.)
- Gross Slewing Torque: 24 kNmm (18 ft. – lb.) / 32 kNm (24 ft. –lb.)
Featured Content
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
- Exclusive TimberLink automatic monitoring system keeps an eye on operating costs while tracking machine performance and efficiency.
- Work-cycle information, such as loading and driving times can be used to fine-tune settings and improve operator technique.
TimberMatic F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.
Available with a 40-cm-shorter wheelbase, for better agility in thinnings, without compromising stability or load size.
- Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
- Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
